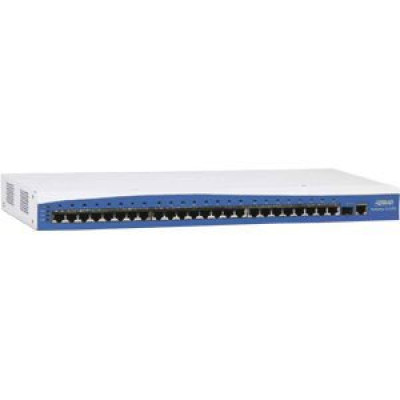

Adtran NetVanta 1224STR

NetVanta 1224STR from Adtran.
Adtran logo
Information:  No specifications available | Ask a question | Request a quote |
Accessories:  No accessories available |
Part # Description Price Order
4200520L2 NetVanta 1224STR, Includes 24 - 10/100Base-T access ports, one Combo 1000Base-T/SFP Gigabit Uplink and a single network interface module slot, Switching features include 802.1Q VLANs, 802.1p/DiffServ QoS, 802.1w Rapid STP, 802.3ad Link Aggregation, auto MDI/MDI-X, Routing features include OSPF, RIP, BGP, Frame Relay and PPP WAN Protocols, Stateful Inspection Firewall, optional Modular Dial Backup and VPN. System level features include CLI, HTTP GUI, SSH, SSL, RADIUS. 19" Rackmount 1U housing $1473.90
Stock level: 3
4200522L1 NetVanta 1224STR, With Integral Router & T1 DSU. Combines the functionality of the NetVanta 1224ST and the NetVanta 3205. Includes 24 - 10/100Base-T access ports, one Combo 1000Base-T/SFP Gigabit Uplink and a single network interface module module. Switching features include 802.1Q VLANs, 802.1p/DiffServ QoS, 802.1w Rapid STP, 802.3ad Link Aggregation, auto MDI/MDI-X. Routing features include OSPF, RIP, BGP, Frame Relay and PPP WAN Protocols, Stateful Inspection Firewall, optional Modular Dial Backup and VPN. System level features include CLI, HTTP GUI, SSH, SSL, RADIUS. 19" Rackmount 1U housing $1465.60
Stock level: 3
4200570L1 NetVanta 1224STR, With Integral Router & T1+DSX-1 DSU, Combines the functionality of the NetVanta 1224ST and the NetVanta 3205, Includes 24 - 10/100Base-T access ports, one Combo 1000Base-T/SFP Gigabit Uplink and a single network interface module module, Switching features include 802.1Q VLANs, 802.1p/DiffServ QoS, 802.1w Rapid STP, 802.3ad Link Aggregation, auto MDI/MDI-X. Routing features include OSPF, RIP, BGP, Frame Relay and PPP WAN Protocols, Stateful Inspection Firewall, optional Modular Dial Backup and VPN. System level features include CLI, HTTP GUI, SSH, SSL, RADIUS. 19" Rackmount 1U housing. $1950.10
Stock level: 15
4200572L1 NetVanta 1224STR, Includes 24 - 10/100Base-T access ports, two Combo 1000Base-T/SFP Gigabit Uplink and a single network interface module module, Switching features include 802.1Q VLANs, 802.1p/DiffServ QoS, 802.1w Rapid STP, 802.3ad Link Aggregation, auto MDI/MDI-X. Routing features include OSPF, RIP, BGP, Frame Relay and PPP WAN Protocols, Stateful Inspection Firewall, optional Modular Dial Backup and VPN. System level features include CLI, HTTP GUI, SSH, SSL, RADIUS. Provides up to 15.4 watts/port of 802.3af compliant power, 19" Rackmount 1U housing $2384.30
Stock level: 3
1200520E1 NetVanta 1224STR, (24-Port, Layer 2 Switch with Integral Router) $1191.20
Stock level: 6
1200590E1 NetVanta 1224STR, (DC, 24-Port Layer 2 Switch) $1465.60
Stock level: 3
4200520E2 NetVanta 1224STR, (with Enhanced Featue Pack Software Bundle, RoHS) $1473.90
Stock level: 3
4200521E1 NetVanta 1224STR, (with 56/64k NIM, RoHS) $1419.00
Stock level: 3
4200521L1 NetVanta 1224STR, with 56/64k NIM (24 Port Layer 2 Ethernet Switch with Integral Router and WAN Interface. Combines the functionality of the NetVanta 1224ST and the NetVanta 3205. Includes 24 - 10/100Base-T access ports, a single 1000BASE-T/SFP Gigabit uplink and a modular network interface.) $1419.00
Stock level: 3
4200523L1 NetVanta 1224STR, with T1/FT1 plus DSX-1 NIM (24 Port Layer 2 Ethernet Switch with Integral Router and WAN Interface. Combines the functionality of the NetVanta 1224ST and the NetVanta 3205. Includes 24 - 10/100Base-T access ports, a single 1000BASE-T/SFP Gigabit uplink and a modular network interface.) $1602.70
Stock level: 3

More Configurations

Part # Description Price Order
4200571L1 NetVanta 1224STR PoE, (with 56/64k NIM) $2337.60
Stock level: 3
4200590E2 NetVanta 1224STR, (DC, with Enhanced Feature Pack Software - VPN Bundle) $2090.00
Stock level: 2
4200520L1 NetVanta 1224STR, With gigabituplink router WAN slot, Firewall protection, layer 2 switching, IP-routing, DHCP support, NAT support, NAPT support, trunking, VLAN support, auto-uplink, Syslog support, Stateful Packet Inspection, DoS attack prevention, ALG support, dynamic DNS server, port mirroring, DiffServ support, manageable, E-mail alert, Broadcast Storm Control Call for Details

Adtran NetVanta 1224STR Details

  • 24-port managed Layer 2 Ethernet switch with integral IP router and Gigabit uplink
  • 6.8 Gbps non-blocking switching capacity
  • Single 10/100/1000Base-T Ethernet ports and Small Formfactor Pluggable (SFP) slots for high-speed uplink or stacking requirements
  • Single WAN interface accommodates NetVanta NIMs and DIMs for DSU/CSU functionality and optional dial backup
  • Supports all NetVanta 1000 Series Layer 2 Ethernet switching, access routing, and system level functionality
  • Uses industry-standard Small Formfactor Pluggable (SFP) modules for Gigabit Ethernet over single- or multi-mode fiber
