Datalogic Diamond Scanners

Diamond
• Small footprint
• High "First-Pass" rate
• "Single line" mode
• Shock resistant and Antiskid design
• Flexible connectivity and easy to expand
• High reliability
• EAS optional kit
• OLE for POS compliance

• Petrol Stations
• Cash & Carry
• Pharmacies
• Backroom receiving
• Convenience stores
• Department stores
• Book stores and Tobacco shops
• Light Industrial environments
• OEM vertical markets

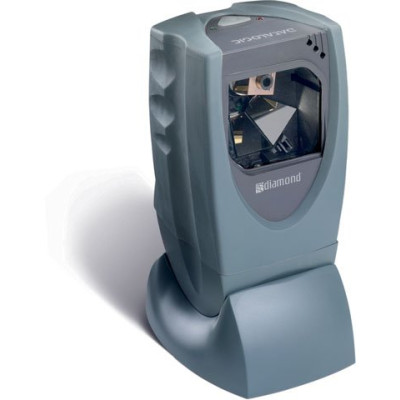

The DLL2020/21 represents the ideal solution on the counter: compactness and robustness guarantee easy and quick cash-out operations. It can be left on its stand or picked up to scan barcodes. The “single line option,” available on the DLL2021, allows the scanner to be used as a hand-held reader. It generates a single line, making it easier to aim when it is picked up and used to scan items that cannot be lifted onto the counter or to scan a single barcode on a barcode list.

The DLL2020/21-W provides the most compact footprint so that it could fit practically anywhere, resolving problems of space at the Point of Sale. The advanced technology applied to this compact scanner provides major benefits in reading performance and guarantees the highest “First-Pass” decoding rate. The ergonomics and ease of use are enhanced by the built-in protecting sleeve, which protects the unit from shocks and prevents possible drops from the counter, thanks to the Antiskid feature. Using a high visible laser diode, the omni-directional scan field of the DLL2020/21-W generates a scan pattern of 16 lines, capable of 800 scan lines per second. The “single line” option represents a distinctive feature of the DLL2021-W. By pressing the button, this omni-directional device becomes a single line laser scanner allowing the user to correctly aim the laser beam at the barcode to be read in handheld applications. The barcode is decoded once the button is released. The EAS optional kit, which allows deactivation of EAS tags at the time of scanning, can be purchased afterwards to upgrade the reader. A configurable “sleep” mode is available to minimise power consumption when the unit is idle. The DLL2020/21-W “wakes-up” by simply pressing the button on the upper side of the device. Connection of the scanner to the POS is guaranteed by an efficient series of plug-in cables. In addition, it can be directly powered by the POS system, without the external power supply, reducing the number of cables near the counter. The DLL2020/21-W’s main features include compactness, flexibility, reliability and connectivity, making it a cost-effective investment that meets current and future Point of Sale requirements, as well as maximising customer service.

Models

• DLL2020-W0 Presentation scanner
• DLL2021-W0 Presentation scanner with single line option

Accessories

• EAS Kit Press-on cover and cable for EAS tag deactivation (certified for Nedap and Checkpoint Systems)
• CAB-376 Universal Adapter cable
• CAB362* RS232 coiled cable, 9-pin female connector (DCE config.)
• CAB363* RS232 coiled cable, 25-pin female connector (DCE config.)
• CAB364* RS232 coiled cable, 25-pin male connector (DTE config.)
• CAB365* IBM PS/2 wedge coiled cable, minidin connector
• CAB366* IBM AT/XT wedge coiled cable, din connector
• CAB327* RS232 straight cable, 9-pin female connector (DCE config.)
• CAB328* RS232 straight cable, 25-pin female connector cable (DCE config.)
• CAB320* RS232 straight cable, 25-pin male connector (DTE config.)
• CAB321* IBM PS/2 wedge straight cable, minidin connector
• CAB322* IBM AT/XT wedge straight cable, din connector
• CAB-378 RS232 DIRECT straight cable, 9-pin male, with direct power on pin 9
• CAB-418 RS232 DIRECT straight cable, 9-pin female, with direct power on pin 9
• CAB-379 IBM AT/XT wedge DIRECT straight cable, minidin connector
• CAB350** RS232 Cable, 9 PIN female connector
• CAB389** RS232 9 PIN male connector, beetle POS
• CAB408** RS232 Coiled cable, 9 PIN female connector
• CONFIGURATION GUIDE DLL2020 configuration guide
• ADB-102 5P din T-pass adapter
• ADP-103 6P minidin T-pass adapter
• ADP-200 USB adapter
• PG5 (110 Vac) Power supply unit
• PG5 (220 Vac) Power supply unit
• STD-2020 Swivel stand

*Note: These cables require CAB-376 to be connected to the DLL2020. **A power supply available on PIN 9 of the convertor

ELECTRICAL CHARACTERISTICS

• POWER SUPPLY +5 Vdc ±5%; Direct power from host is supported
• CONSUMPTION < 250 mA @ 5 Vdc

MECHANICAL CHARACTERISTICS

• DIMENSIONS (without sleeve) 100 x 70 x 65 mm
• WEIGHT (with sleeve) 300 g
• CASE MATERIAL ABS
• CABLE LENGTH 2 m

PERFORMANCE

• LIGHT SOURCE 650 nm VLD
• SCAN DIRECTIONS 4
• SCAN RATE 50 frames/sec
• SCAN LINES 800 scan/sec
• SCAN PATTERN 16 lines
• READING INDICATORS Beeper (tone user selectable) and 2 colored Leds (green, red), "Good Read," "Sleep mode"
• BarcodES EAN/UPC/JAN including AddOn, Code 128, EAN128, Code 39, Code 32, CODABAR, Interleaved 2/5
• INTERFACES RS232, Keyboard Wedge
• DEPTH OF FIELD (EAN 100%) 150 mm

PERFORMANCE

• OPERATING TEMPERATURE 0 to 40°C
• STORAGE TEMPERATURE -40 to 70°C
• HUMIDITY 0 to 95%
