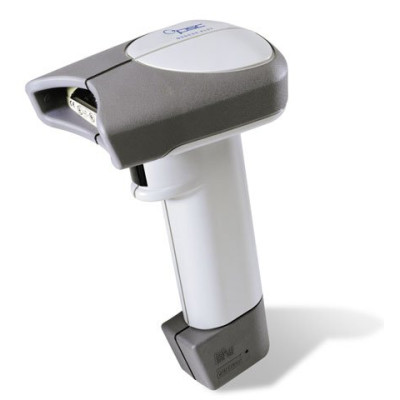

Datalogic QuickScan 6000 Plus Scanners

Check Out The Handheld Scanner That Sets The Standard For General Purpose Applications.

Ideal for:

• Retail Applications
• Health Care
• Inventory
• Office Automation
• Light Industrial

QuickScan 6000 Plus Features:

• Great depth-of-field
• AutoSense® stand for hands-free operation
• Optional EAS antenna for simultaneous scanning and security tag deactivation
• Universal wedge for additional keyboard emulation, barcode symbologies and data editing

Great Performance At A Great Price! The QuickScan® QuickScan 6000 Plus handheld scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class, the QuickScan 6000 Plus speeds retail checkout and other general applications.

This high performance laser scanner offers extended depth-of-field, allowing the user to read labels at distances of 20" (50 cm) and beyond. Plus, PSC's advanced electronics perform well even when reading low contrast labels with poor edge definition.

Hardened for Tough Environments The QuickScan 6000 Plus scanner incorporates the most advanced, high durability features available today. The reading engine and optics are protected by anti-shock mounts built to absorb up to 1500 Gs. In fact, the QuickScan 6000 Plus can withstand repeated five foot drops to concrete.

The QuickScan 6000 Plus also features a strong, plastic enclosure that guards against liquid and dust infiltration. A tough, rubber-like shield cushions the scanner when dropped, protects the scan window from scratching and prevents the scanner from slipping off counter surfaces.

Lightweight & Ergonomic For Maximum Scanning Comfort & Productivity The QuickScan 6000 Plus was developed with operator comfort in mind—a critical factor that ensures prolonged operator productivity. The weight of its evenly balanced design can be held easily in any size hand, even during extended periods of use. When resting on a horizontal surface, in a stand, or in a belt holster, the handle is quickly and easily grasped for "scoop and scan" simplicity.

The QuickScan 6000 Plus: An Outstanding Value With the QuickScan 6000 Plus , there's no need to make trade-offs between quality and affordability. High-end performance, advanced ergonomic design, enhanced durability—the combination of these features in the QuickScan 6000 Plus adds up to one of the best values in the industry.

Specifications QuickScan 6000 Plus

Dimensions

• 6.5 x 2.8 x 4.2" / 16.5 x 7.1 x 10.7 cm

Weight

• Scanner: 6.5 oz. / 184 g (scanner)

Optical

Light source

• Visible Laser Diode (VLD), 650 nm

Scan system

• Electromagnetic dithering mirror

Rate

• 42 scans/sec. (nominal)

Depth-of-Field Printing resolution, contrast and ambient light dependent

QuickScan 6000 Plus Resolution

• 5 mils / 0.13mm

Print contrast ratio

• 30% minimum

Pitch

• ±65°

Skew

• ±55°

Scan angle

• 46°

Ambient light immunity

• Artificial light: 1,200 foot candles / 12900 Lux
• Sunlight: 8,000 foot candles / 86100 Lux

Electrical

Operating voltage

• Undecoded: 4.2 V to 14 VDC
• Decoded: 4.5 V to 14 VDC

Operating current - nominal

• Undecoded: 70 mA to 5 VDC
• Decoded: 120 mA to 5 VDC

Idling current - nominal

• Undecoded: 10 µA to 5 VDC
• Decoded: 23 mA to 5 VDC
• Decoded, lowest power mode: 14 mA to 5 VDC

Environmental

Temperature

• Operating: 32° to 122° F / 0° to 50° C
• Storage: -40° to 158° F / -40° to 70° C

Humidity

• 5 to 95% NC

Shock (at 23°C)

• Withstands multiple 5.0' / 1.5 m drops onto concrete / 100+ drops to countertop

Vibration

• MIL-STD-810E

Decoding Capability

• UPC A, E / EAN 8,13 / JAN 8, 13 (Codes add-ons P2 / P5, Code 128)
• Code 128/EAN 128
• Codabar
• Pharmacode 39
• Code 93
• Interleaved 2/5
• Standard 2/5, IATA
• Code 39
• MSI/Plessey
• RSS on selected models

QuickScan 6000 Plus Communications

Single and dual interface models

• RS232
• Standard Keyboard Wedge
• Universal Keyboard Wedge
• IBM 46XX
• USB
• Wand Emulations
• OCIA
• Undecoded

Safety & Regulatory

Electrical Complies to:

• Gost R
• TÜV
• UL
• cUL

Emissions Complies to:

• FCC-A
• EN 55022-B
• BCIQ CNS 13438
• AS/NZS 3548
• VCCI-B

QuickScan 6000 Plus Laser classification

• CDRH Class IIa; (ATTENTION: Laser Radiation - do not stare into beam)
• IEC 60825 Class 1 & 2
