Datalogic QS6500 Scanners

Fast, Ergonomic Scanning of All Supported Symbologies

The Datalogic QS6500 is Datalogic's newest general purpose handheld scanner. For customers looking for a scanner with premium performance at an affordable price, the QS6500 is the best in the market. The Datalogic QS6500 includes aggressive scanning performance, an ergonomic feel, excellent field depth and fast 1D and PDF417 barcode reading.

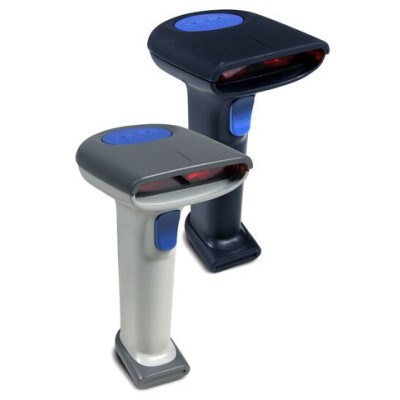

Photo of Datalogic QS6500
Datalogic logo
Information:  Specifications | Datalogic's QS6500 page | Cable example images | Ask a question | Request a quote |
Accessories:  Accessories/Options |
Part # Description Price Order
QS65-4040042-401 QS6500, 1D Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Black $237.60
Stock level: 3
QS65-1010132-105 QS6500, 1D Imager kit with RS-232 interface. Includes 12 ft. RS-232 cable, US power supply and stand. Color: Gray $256.90
Stock level: 3
QS65-3010142-105 QS6500, 1D Imager kit with RS-232 interface. Includes 12 ft. RS-232 cable, US power supply and stand. Color: Black $265.90
Stock level: 3
QS65-1030032-301 QS6500, 1D Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Gray $239.80
Stock level: 3
QS65-3030042-301 QS6500, 1D Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Black $239.80
Stock level: 3
QS65-1050032-502 QS6500, 1D Imager kit with PT9B IBM 46XX 9B interface. Includes 12 ft. PT9B IBM 46XX 9B cable, stand and CD. Color: Gray $310.00
Stock level: 3
QS65-3050042-502 QS6500, 1D Imager kit with PT9B IBM 46XX 9B interface. Includes 12 ft. PT9B IBM 46XX 9B cable, stand and CD. Color: Black $310.00
Stock level: 3
QS65-1040032-401R QS6500, 1D imager kit with USB interface, N, Gooseneck stand, STD/CD, POT, RoHS, Color: Gray $237.60
Stock level: 3
QS65-1040032-402 QS6500, 1D imager, USB, Gooseneck stand, CD, Cable (8-0481-10), Color: Gray $237.60
Stock level: 3
QS65-3030001-301R QS6500, 1D imager kit, Keyboard wedge, 5/6-pin Din PS/2 POT cable, CD, Color: Black $210.40
Stock level: 3
QS65-4060026-601 QS6500, 1D/PDF417 imager, IBM USB, Wall mount kit, Cable, Color: Black $239.80
Stock level: 3
QS65-2030032-301 QS6500, PDF417 Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Gray $239.80
Stock level: 3
QS65-4030042-301 QS6500, PDF417 Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Black $239.80
Stock level: 3
QS65-2040032-401 QS6500, PDF417 Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Gray $237.60
Stock level: 3
QS65-4040042401 QS6500, PDF417 Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Black $237.60
Stock level: 3
QS65-3030000 QS6500, Handheld Barcode scanner, 1D, Multi-Interface, Black $186.80
Stock level: 3
QS65-1010000 QS6500, 1D Imager Only, RS-232 Default, Gray Requires Cable $186.80
Stock level: 3
QS65-1010101-105 QS6500, 1D, RS-232 Imager Kit 9 feet Cable, Power supply, Gray $233.90
Stock level: 3
QS65-1041032-401 QS6500, USB Barcode scanner $284.60
Stock level: 3
QS65-2030000R QS6500, PDF417 Imager, 1D Plus PDF417, MicroPDF Decode-IN with Multi Interface and RoHS. Color: Gray . $186.80
Stock level: 9
QS65-2060001-601 QS6500, 1D/PDF417 Imager Kit, IBM USB Cable. Color: Gray . $226.00
Stock level: 3
QS65-4045003-403 QS6500, PDF417 Imager USB H/K, N BSC/N, POT-2M - Color: Black $226.00
Stock level: 3
QS65-4060001-601R QS6500, PDF417, IBM USB 12' POT Cable 8-0734-12 $226.00
Stock level: 3
QS65-1030001-301 QS6500, 1D imager kit with Keyboard wedge interface, PS/2 cable, Gray $210.40
Stock level: 3
QS65-1040000 QS6500, 1D imager only, USB default, Gray, Requires cable $186.80
Stock level: 3
QS65-2010000 QS6500, 1D/PDF417 imager only with RS-232 default interface, Gray, Requires cable $186.80
Stock level: 4
QS65-2010132-105 QS6500, 1D/PDF417 imager kit with RS-232 interface, Stand, 9-pin Female cable, Power, Cable $256.90
Stock level: 3
QS65-1030000R QS6500, 1D Imager, Keyboard wedge, Color: Gray $186.80
Stock level: 3
QS65-2040001-401 QS6500, EZ Kit, USB HID, PDF417, Series A 11 ft. POT Cable, Color: Gray $217.50
Stock level: 3
QS65-1060032-601 QS6500, 1D Imager (12 ft. Power Plus POT IBM USB Cable, Stand and CD) $255.20
Stock level: 3
QS65-3010101-105 QS6500, 1D Imager Kit (RS-232, CD, DB-9 12 ft. Cable and US Power supply) - Color: Black $233.90
Stock level: 3
QS65-2010001-109 QS6500, PDF417 Imager (RS-232, Standard POT Aux and Cable 8057711) - Color: Gray $226.00
Stock level: 3
QS65-2040032-403 QS6500, PDF417 Imager, Multi-Interface, USB HID Keyboard Config, Stand and cable, Color: Gray $255.20
Stock level: 3
QS65-4010001-109 QS6500, PDF417 Imager (RS, POT 12 feet) - Color: Black $226.00
Stock level: 3
QS65-4010101-105 QS6500, PDF417 Imager (Kit, RS-232, Power supply and Cable) - Color: Black $233.90
Stock level: 3
QS65-4010142-105 QS6500, PDF417 Imager, RS, US, G/N, STD and E/P, Color: Black $265.90
Stock level: 3
QS65-4040001-401 QS6500, PDF417 Imager (USB, HID Keyboard wedge, Series A 12 ft. POT and CD) - Color: Black $217.50
Stock level: 14
QS65-4060000 QS6500, PDF417 Imager (IBM USB, N, Bulk/N) - Color: Black $186.80
Stock level: 3
QS65-4060042-601 QS6500, PDF417 Imager (12 ft. Power Plus IBM USB POT Cable, Stand and CD) - Color: Black $255.20
Stock level: 4
QS65-4070042-701 QS6500, PDF417 Imager (Wand Interface, Stand Kit and Cable* 8-0422-02) - Color: Black $239.80
Stock level: 3
QS65-1060001-601 QS6500, 1D Imager (IBM/USB and Cable POT 12 feet) - Color: Gray $226.00
Stock level: 3
QS65-3070001-701R QS6500, 1D Imager (DB-9 WE Cable 8 ft. #8-0740-02 with CD) - Color: Black $210.40
Stock level: 3
QS65-1060000 QS6500, 1D Imager (IBM/USB and N, N, N) - Color: Gray $186.80
Stock level: 3
QS65-1070001-701R QS6500, 1D Imager (Wedge, DB-9 8-Foot Cable, 7CD) - Color: Gray $176.00
Stock level: 3
QS65-4030000R QS6500, PDF417 Imager (PDF417, Keyboard wedge, N, N) - Color: Black $186.80
Stock level: 3
QS65-1040001-401R QS6500, 1D Imager (USB, with CD, POT Cable #8-0481-08, RoHS and No Power Kit) - Color: Gray $217.50
Stock level: 3
QS65-3040001-401R QS6500, 1D Imager Kit (USB HID KB, Series A 12 ft. POT, CD and RoHS) - Color: Black $217.50
Stock level: 3
QS65-4040042-401R QS6500, PDF417 Imager (12 ft. POT USB HID KB Cable, Stand and CD) - Color: Black $237.60
Stock level: 2
QS65-3070042-701R QS6500, 1D Imager (DB-9, WE, Stand, 8-Foot Cable 8-0740-02 and CD) $239.80
Stock level: 3
QS65-1010101-105R QS6500, 1D, RS-232 Imager Kit 9 feet Cable, Power supply, Gray. RoHS. $233.90
Stock level: 3
QS65-1010132-105R QS6500, 1D Imager kit with RS-232 interface. Includes 12 ft. RS-232 cable, US power supply and stand. Color: Gray. RoHS. $256.90
Stock level: 3
QS65-1030001-301R QS6500, 1D imager kit with Keyboard wedge interface, PS/2 cable, Gray. RoHS. $210.40
Stock level: 3
QS65-1030032-301R QS6500, 1D Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Gray. RoHS. $239.80
Stock level: 3
QS65-2030032-301R QS6500, PDF417 Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Gray. RoHS. $239.80
Stock level: 3
QS65-2040001-401R QS6500, EZ Kit, USB HID, PDF417, Series A 11 ft. POT Cable, Color: Gray. RoHS. $217.50
Stock level: 3
QS65-2040032-401R QS6500, PDF417 Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Gray. RoHS. $237.60
Stock level: 3
QS65-3010101-105R QS6500, 1D Imager Kit (RS-232, CD, DB-9 12 ft. Cable and US Power supply) - Color: Black. RoHS. $233.90
Stock level: 3
QS65-3010142-105R QS6500, 1D Imager kit with RS-232 interface. Includes 12 ft. RS-232 cable, US power supply and stand. Color: Black. RoHS. $256.90
Stock level: 3
QS65-3030000R QS6500, Handheld Barcode scanner, 1D, Multi-Interface, Black. RoHS. $186.80
Stock level: 3
QS65-3030042-301R QS6500, 1D Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Black. RoHS. $239.80
Stock level: 3
QS65-3040042-401R QS6500, 1D Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Black. RoHS. $237.60
Stock level: 3
QS65-4030042-301R QS6500, PDF417 Imager kit with Keyboard wedge interface. Includes 12 ft. PS/2 cable, stand and CD. Color: Black. RoHS. $239.80
Stock level: 3
QS65-4040001-401R QS6500, PDF417 Imager (USB, HID Keyboard wedge, Series A 12 ft. POT and CD) - Color: Black. RoHS. $217.50
Stock level: 15
QS65-4060042-601R QS6500, PDF417 Imager (12 ft. Power Plus IBM USB POT Cable, Stand and CD) - Color: Black. RoHS. $209.20
Stock level: 3
QS65-1070032-701R QS6500, Gray 1D, WE, DB-9 8' Cable, Stand, CD. RoHS. $239.80
Stock level: 3
QS65-2030001-301R QS6500, Gray PDF417, Keyboard wedge, 6MDIN, P & S, E/P-POT, 12', CD. RoHS. $210.40
Stock level: 3
QS65-2041000R QS6500, 1D Imager (USB HID Interface, No Power supply and No Cable) $186.80
Stock level: 3
QS65-4040003-403R QS6500, PDF417 Imager (Multi Interface, USB, HIDKB Config, POT 12 ft. Cable, ROH and No Power supply) $258.80
Stock level: 3
QS65-1040032-401 This part is replaced by QS65-1040032-401R.
QS6500, 1D Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Gray 		Call for Details
QS65-3040042-401 This part is replaced by QS65-4040042-401.
QS6500, 1D Imager kit with USB interface. Includes 12 ft. USB cable, stand and CD. Color: Black 		Call for Details
QS65-1030000 This part is replaced by QS65-1030000R.
QS6500, 1D imager, Scanner only, Color: Gray 		Call for Details
QS65-1040001-401 This part is replaced by QS65-1040001-401R.
QS6500, 1D imager, USB, CD, POT cable (8-0481-08), No power kit, Color: Gray 		Call for Details
QS65-3060042-601 QS6500, 1D imager kit, 12 ft. Power Plus IBM USB POT cable, Stand, CD Call to purchase. Call for Details
QS65-2030000 This part is replaced by QS65-2030000R.
QS6500, 1D/PDF417 imager with, 1D Plus PDF417, MicroPDF Decode-IN with Multi interface, Color: Gray 		Call for Details
QS65-2060032-601 QS6500, Wired Handheld Barcode scanner, PDF417 Imager, 12 ft. PowerPlus IBM USB POT Cable, Stand and CD Call for Details
QS65-3040001-401 This part is replaced by QS65-3040001-401R.
QS6500, 1D Imager Kit, USB HID Keyboard wedge, Series A 12 ft. POT and CD. Color: Black . 		Call for Details
QS65-3060001-601 QS6500, 1D Imager, IBM USB (non-standard) Cable, 12 ft. Power Plus POT Cable, CD. Color: Black. Call to purchase. Call for Details
QS65-4030000 This part is replaced by QS65-4030000R.
QS6500, RS-232, 1D Plus PDF417 with Multi-Interface Scan Only Color: Black 		Call for Details
QS65-3010001-109B QS6500, 1D Imager Kit (RS-232, CD, Stand and POT Aux. Cable 8-0577-11) - Color: Black Call for Details
QS65-3070042-701 This part is replaced by QS65-3070042-701R.
QS6500, 1D Imager (Wedge, N, G/N CD and Cable SEL) - Color: Black 		Call for Details
QS65-4040044 QS6500, 1D Imager (USB HID Keyboard wedge, Stand, No Cable and No Power supply) - Color: Black Call for Details
QS65-4030001-301 QS6500, PDF417 Imager (Keyboard wedge, 5/6Din, PS/2 POT Cable and CD) - Color: Black Call for Details
QS65-4060001-601 This part is replaced by QS65-4060001-601R.
QS6500, PDF417 Imager (IBM USB 12 Foot, Power Plus POT Cable and CD) - Color: Black 		Call for Details
QS65-1050032-502R QS6500, 1D Imager kit with PT9B IBM 46XX 9B interface. Includes 12 ft. PT9B IBM 46XX 9B cable, stand and CD. Color: Gray. RoHS. Call for Details
QS65-1060032-601R QS6500, 1D Imager (12 ft. Power Plus POT IBM USB Cable, Stand and CD). RoHS. Call for Details
QS65-2060032-601R QS6500, Wired Handheld Barcode scanner, PDF417 Imager, 12 ft. PowerPlus IBM USB POT Cable, Stand and CD. RoHS. Call for Details
QS65-3050042-502R QS6500, 1D Imager kit with PT9B IBM 46XX 9B interface. Includes 12 ft. PT9B IBM 46XX 9B cable, stand and CD. Color: Black. RoHS. Call for Details
QS65-3060001-601R QS6500, 1D Imager, IBM USB (non-standard) Cable, 12 ft. Power Plus POT Cable, CD. Color: Black. Call to purchase.. RoHS. Call for Details
QS65-3060042-601R QS6500, 1D imager kit, 12 ft. Power Plus IBM USB POT cable, Stand, CD Call to purchase.. RoHS. Call for Details
QS65-4030001-301R QS6500, PDF417 Imager (Keyboard wedge, 5/6Din, PS/2 POT Cable and CD) - Color: Black. RoHS. Call for Details
QS65-1010301-105R QS6500, Gray 1D, RS-232, DB-9 12' Cable, EU Power supply, CD. RoHS. Call for Details
QS65-1010332-105R QS6500, Gray 1D, RS-232, DB-9 12' Cable, EU Power supply, Stand, CD. RoHS. Call for Details
QS65-1050001-502R QS6500, Gray 1D, IBM 46xx, PT9B 12' cable, CD. RoHS. Call for Details
QS65-3010301-105R QS6500, Black 1D, RS-232, DB-9 12' Cable, EU Power supply, CD. RoHS. Call for Details
QS65-3010342-105R QS6500, Black 1D, RS-232, DB-9 12' Cable, EU Power supply, Stand, CD. RoHS. Call for Details
/include/common/phpDB/db-mysql.php?Compatible=x2210x&sb=ModelRank&so=descend&Cat=SCANNER

Datalogic QS6500 Details

QuickScan QS6500 Linear Imager Features

  • Aggressive linear imaging performance with
    up to 14" reading on 100% UPC labels
  • Supports RSS and PDF-417 for future industry
    compatibility
  • 2005 Sunrise compliant
  • Multi-interface solution supports all popular
    host terminal interfaces
  • Flash memory for easy software upgrades
  • Built tough to withstand common POS
    abuse for many years
  • Attractive, yet durable design to complement
    your point-of-sale

The QuickScan QS6500 is PSC’s newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan QS6500 offers the best price/performance in the market.

The QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF barcode reading, bright targeting beam, and superior durability and reliability.

Features       Benefits
Aggressive linear imaging performance
with up to 14” reading on 100% UPC
labels
  • Fast, ergonomic scanning of all supported
    symbologies; increased productivity
  • Easily reads most symbologies, including highly truncated codes like RSS and MicroPDF-417
Supports most 1D symbologies,
including RSS-14
  • Current industry compatibility
Supports PDF-417, Micro-PDF, and UPC/ EAN Composite 2D Symbologies
  • Future industry compatibility
Multi-interface solution
  • All of the most popular interfaces are supported
  • Includes IBM, USB, KBW, and RS-232 interfaces
Flash memory for easy software upgrades
  • Lower cost of ownership since operating software
    is easily upgraded
  • Scanner configuration parameters can be adjusted
    using the Windows based software utility
  • New symbologies or updates for existing symbologies are easily added
Ergonomically comfortable over extended time periods
  • Increased productivity
Rubber over mold at all contact points
  • Protects scanner from POS abuse
  • Scanner survives multiple 5ft (1.5m) drops to
    concrete
  • Enclosure wears better over time
Attractive, yet durable design to
complement your point-of-sale
  • Black and gray models match the most popular
    POS terminal colors for an integrated and
    professional look
  • Custom logo badges are available

QuickScan QS6500 Specifications

Mechanical

Dimensions

  • Height: 6.0" (16.5cm)
  • Width: 2.9" (7.4cm)
  • Length: 3.9" (9.9cm)

Weight

  • 6.4 oz. (181.4 g)

Electrical

Operating Voltage

  • +4.5 to 14VDC ±5%

Operating Current

  • 300mA @ 5VDC

Idle Current

  • 200mA @ 5VDC

Environmental

Temperature Rating

  • Operating: 32° to 122° F (0° to 50°C)
  • Storage: -40° to 158° F (-40° to 70° C)

Humidity

  • Operating: 5 to 95% NC
  • Storage/Transport: 5 to 95% NC

Ambient Light Immunity

  • Artificial & Sunlight: 86,000 Lux

Shock

  • Multiple 5’ (1.5m) drops to concrete

Water & Dust

  • Sealed to resist airborne dust & particulates

Communications

  • RS-232
  • Keyboard Wedge
  • IBM 46XX
  • IBM USB
  • USB

Optical

Light Source

  • 630nm Visible Red Diode

Scan Rate

  • 450 scans/sec max

Sensor

  • 2048 pixel linear imager

Scan Width

  • 6.3" (16.5cm) @ 7" (17.8cm) from nose

Resolution

  • 5 mils (.13mm)

Print Contrast

  • 30% or greater

Pitch

  • ±60°

Skew

  • ±55°

Depth of Field*

Label Density
Range**
5 mil Linear
2.0" to 5.0" (5.1 to 12.7cm)
7.5 mils
1.0" to 7.0" (2.5 to 17.8cm)
10 mils
0" to 12" (0 to 30.5cm)
13 mils
0" to 14" (0 to 35.6cm)
20 mils
Up to 24" (61.0cm)
40 mils
Up to 40" (101.6cm)

*Depth of Field specifications are for 1D models only. PDF models will have slightly shorter Depth of Field ranges.
** Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

Decoding Capability

1D Versions

  • UPC A, E / EAN 8, 13 / JAN 8, 13
  • Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • RSS-14, Expanded, Stacked, Limited
  • ISBN / Bookland EAN
  • Code 39 (with full ASCII)
  • Pharmacode 39
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • IATA
  • Code 16K
  • Code 11
  • Codabar/NW7
  • UK/Plessey
  • MSI/Plessey

PDF Models support these additional symbologies:

  • RSS / UCC / EAN Composites
  • PDF-417
  • Micro-PDF

Safety & Regulatory

Electrical: Complies to:

  • EN60950
  • CSA60950
  • UL60950

Emissions: Complies to:

  • FCC-A
  • EN 55022-B
  • BSMI 13438
  • AS/NZS 3548
  • VCCI-B
  • ICES-003

Customers Who Bought This Item Also Bought

Zebra LP 2844 Printers
Zebra LP 2844
Barcode Printers
$345.30
Unitech K2726 Keyboards
Unitech K2726
Point of Sale Keyboards
$141.80
Epson TM-T88iv Printers
Epson TM-T88iv
Point of Sale Printers
$276.10

The Datalogic QS6500 is also known as the Datalogic QuickScan 6500 or the Data Logic QS6500 .
