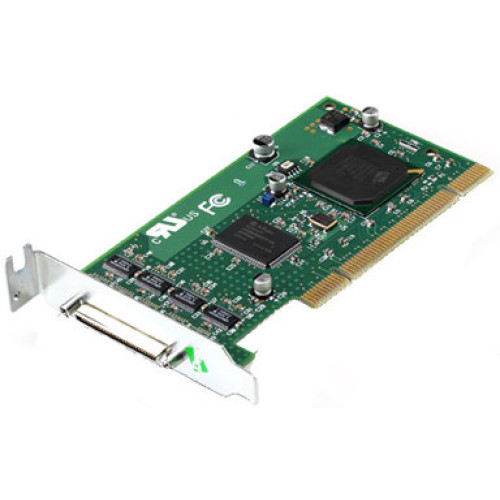

Digi AccelePort Xp
Surge protection on all signals for superior reliability
The Digi AccelePort Xp makes device connectivity easy with excellent throughput, an unrivaled feature set, high reliability, and ease of installation. It features Application Specific Integrated Circuit (ASIC), an 80 Mhz RISC processor and a bus mastering design to reduce CPU utilization. External options connect to the adapter using a SCSI HD-68 connector, reducing cable clutter and increasing connection reliability. It is capable of supporting data speeds of 921.6 Kbps bi-directionally on all ports. Its accessories include PortAssist Manager software, DB-9, DB-25 and RJ-45 connector options that include on-board connectors, fan-out cables, external I/O boxes and rack-mountable chassis.
|
|
| Part # |
Description |
Price |
Order |
| 70001548 |
AccelePort Xp, Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, DB-25 and DB-9 4-foot fan out cables - male or female, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals
|
$809.00
Stock level: 15 |
|
| 77000706 |
AccelePort Xp, Universal PCI card (3.3V & 5V), 4 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals
|
$521.70
Stock level: 9 |
|
| 77000707 |
AccelePort Xp, Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals
|
$679.80
Stock level: 12 |
|
| 70001550 |
AccelePort Xp, Universal PCI card (3.3V & 5V), 16 RS-232 serial ports, Dual HD-68 female connectors, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, DB-25 and DB-9 4-foot fan out cables - male or female, DB-25 or RJ45 desktop or 19" rack mountable enclosures with 2 HD-68 connector cables, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals
|
Call for Details |
| 76000587 |
AccelePort Xp, accessory, 16-Port 2U 19" Rack, DB-25M Connectors, For use with two 8-port AccelePort Xp cards
|
Call for Details |
|
