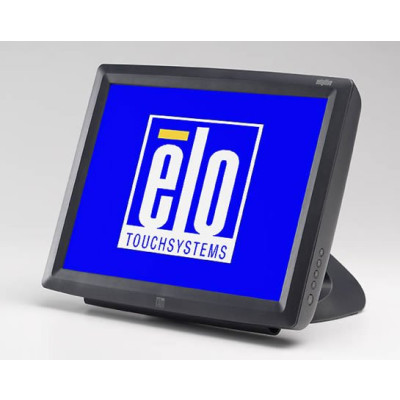

Elo Entuitive 1529L Touch Computer Point of Sale Terminals
All-in-one Touchcomputer with 15" LCD Touchscreen
The Elo Entuitive 1529L Touch Computer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions that meet your requirements. The new designed for touch 1529L integrates an all-in-one touchcomputer within the footprint of a 15" LCD touchmonitor. Options for the retail-rugged Entuitive 1529L Touch Computer include a three-track magnetic stripe reader (MSR) and rear-facing customer display. Operating system options include Microsoft Windows XP Embedded, Windows XP Professional, Windows 2000 or Windows CE.NET. The new Entuitive 1529L Touch Computer has been designed for touch from the ground up with such features as spill-resistant sealing, a stable tilt base, a VESA mounting option, cables hidden from user view, and side controls with lockout for public use. The Elo Entuitive 1529L Touch Computer offers a wide range of connectivity, including USB and legacy serial ports. Display options include a choice of IntelliTouch surface wave or AccuTouch five-wire resistive touch technologies. The Entuitive 1529L Touch Computer is also available as a separate touch monitor.
|
|
| Part # |
Description |
Price |
Order |
| E997301 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, AccuTouch (resistive) Touch Technology, USB and serial Interfaces (no parallel), Windows XP Professional, RoHS Compliant. Color: Dark Gray.
|
$1504.50
Stock level: 10 |
|
| E770939 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Keyboard Emulation Mag Stripe Reader, Windows XP Professional, RoHS Compliant. Color: Dark Gray.
|
$1594.30
Stock level: 43 |
|
| A76195-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Keyboard Emulation Mag Stripe Reader, Windows XP Professional. Color: Dark Gray.
|
$1594.30
Stock level: 3 |
|
| E782747 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Keyboard Emulation Mag Stripe Reader, Windows 2000, RoHS Compliant. Color: Dark Gray.
|
$1849.00
Stock level: 3 |
|
| D01198-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Serial Customer Display, USB Keyboard Emulation Mag Stripe Reader, Windows XP Professional, Hard Drive and Anti-Glare Surface. Color: Dark Gray.
|
$1736.50
Stock level: 3 |
|
| F22545-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, AccuTouch (resistive) Touch Technology, USB and serial Interfaces (no parallel), Customer Display, Windows 2000 Professional, Hard Drive and Anti-Glare Surface. Color: Dark Gray.
|
$1929.00
Stock level: 3 |
|
| E812229 |
Entuitive 1529L Touch Computer, 15"AccuTouch touch technology, USB touch interface, Windows XP, MSR keyboard emulation, RoHS, Anti-glare surface treatment, Color: Dark Gray
|
$1594.30
Stock level: 3 |
|
| E897594 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch touch technology, USB touch interface, MS Windows XP Professional, RoHS, Anti-glare surface treatment, Color: Dark Gray
|
$1504.50
Stock level: 3 |
|
| E910583 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch touch technology, USB touch interface, Windows XP Pro, MSR human interface device, RoHS, Anti-glare surface treatment, Color: Dark Gray
|
$1594.30
Stock level: 5 |
|
| E723341 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch technology, USB touch interface, Windows XP Pro, MSR keyboard emulation, Display, RoHS, Anti-glare surface treatment, Color: Dark Gray
|
$1736.50
Stock level: 4 |
|
More Configurations
| Part # |
Description |
Price |
Order |
| E669858 |
Entuitive 1529L Touch Computer, 15" IntelliTouch (capacitative), XE EMB MST, 1.0 GHz
|
$1485.00
Stock level: 25 |
|
| E903027 |
Entuitive 1529L Touch Computer, 15" LCD Touchcomputer, RoHS, IntelliTouch Touch Technology, Windows CE, USB interface.
|
$1498.00
Stock level: 3 |
|
| E053186 |
Entuitive 1529L Touch Computer, 1529L Touchcomputer 15 inch LCD All-in-One Desktop (AccuTouch Touch Technology, USB Touch Interface, MS Windows CE, RoHS and Antiglare Surface Treatment) - Color: Dark Gray
|
$1318.00
Stock level: 3 |
|
| E202923 |
Entuitive 1529L Touch Computer, 1529L Touchcomputer 15 inch LCD All-in-One Desktop (IntelliTouch Touch Technology, MS Windows XP, MSR HID, Customer Display, RoHS and Antiglare Surface Treatment) - Color: Dark Gray
|
$1736.50
Stock level: 9 |
|
| E21471-000 |
Entuitive 1529L Touch Computer, 15" LCD All-In-One Touchcomputer, IntelliTouch, USB interface, Windows XP
|
$1619.00
Stock level: 2 |
|
| E702108 |
Entuitive 1529L Touch Computer, 1529L, 15 inch, LCD, All in One, Intellitouch, Dark Gray
|
$1499.00
Stock level: 3 |
|
| E700965 |
Entuitive 1529L Touch Computer, 1529L, 15LCD, All in One, Carollitouch, Keyboard wedge emulation, Dark gray
|
$1676.60
Stock level: 10 |
|
| A88929-000 |
This part is replaced by E997301.
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, AccuTouch (resistive) Touch Technology, USB and serial Interfaces (no parallel), Windows XP Professional, MSR. Color: Dark Gray.
|
Call for Details |
| D86683-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, AccuTouch (resistive) Touch Technology, USB and serial Interfaces (no parallel), Windows XP Professional. Color: Dark Gray.
|
Call for Details |
| C32066-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Keyboard Emulation Mag Stripe Reader, WindowsCE. Color: Dark Gray.
|
Call for Details |
| A03161-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), USB HID Mag Stripe Reader, Windows XP Professional, Hard Drive and Anti-Glare Surface. Color: Dark Gray.
|
Call for Details |
| A30675-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Windows XP Professional, Hard Drive and Anti-Glare Surface. Color: Dark Gray.
|
Call for Details |
| A48534-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, CarrollTouch (infrared) Touch Technology, USB and serial Interfaces (no parallel), Windows XP Professional. Color: Dark Gray.
|
Call for Details |
| A60521-000 |
Entuitive 1529L Touch Computer, 15" LCD, TouchComputer, IntelliTouch (capacitive) Touch Technology, USB and serial Interfaces (no parallel), Windows CE .NET 4.2 Professional with Compact Flash and Anti-Glare Surface. Color: Dark Gray.
|
Call for Details |
Elo Entuitive 1529L Touch Computer Details
Features
- Space saving, integrated, all-in-one touchcomputer with the footprint of a standard 15" LCD display
- Silent, fanless design
- Available as a solid-state embedded system or with an integrated hard drive
- Choice of Microsoft Windows XP Professional, Microsoft Windows XP Embedded, Microsoft Windows 2000, or Microsoft Windows CE .Net operating systems
- Functions as desktop or wall-mountable system
- Optional integrated MSR and/or rear-facing customer display
- Available with AccuTouch Five-Wire Resistive, CarrollTouch Infrared or IntelliTouch Surface-Wave touch technology
- "Designed for touch" from the ground-up; stable tilt base; cables hidden from user's view; controls on the side rather than the front, plus lockout function for public use
- Base removable, plus VESA mounting option
- Connectivity includes two serial, four USB 1.1, Ethernet, PCMCIA, PS/2 mouse, and keyboard ports
- Built-in speakers located in display head
- Worldwide agency approvals
Specifications
| Processor |
Via Eden
1 GHz CPU or equivalent |
Memory
(RAM) |
512 MB |
| Memory
(video) |
16
MB |
| Operating
systems |
Microsoft
Windows XP Professional
Microsoft Windows XP Embedded
Microsoft Windows 2000
Microsoft Windows
CE .NET 4.2 |
| USB
1.1
ports |
Four external |
|
RS-232 serial ports |
Two external |
| PCMCIA |
One Type 2.1 external
slot |
| Compact
flash socket |
One, internal |
| Mouse
and keyboard port |
One PS/2 each |
| Network
adapter |
TCP/IP 10/100 Base-T RJ45 port
(Ethernet) |
| Wireless
networking |
Capable through PCMCIA |
| Storage |
CE:
64 MB Compact Flash
XP/2000: 30 GB HDD
(minimum)
XP Embedded: Optional 30 GB HDD (minimum)
or 1 GB Compact Flash |
Touchmonitor
Specifications
| Model |
1529L
touchcomputer |
| Series |
3000 |
| Availability |
Worldwide |
| Case/bezel
color |
Dark gray |
| Display |
Size:
15"
diagonal
Type:
Active matrix TFT LCD
Aspect
ratio:
4 x 3 |
| Useful screen area |
Horizontal:
11.98" (304.1 mm)
Vertical: 8.98" (228 mm) |
Monitor
dimensions
(max. with short stand) |
Width:
13.99" (355 mm)
Height: 11.27" (286 mm)
Depth: 10.44" (265 mm)
Dimensions
vary with stand position and options selected |
| Optimal (native) resolution |
1024
x 768 at 60, 70 or 75 Hz |
| Colors |
16.2
million colors, 6 bit with dithering |
Brightness
LCD panel |
350 cd/m2 |
Brightness
LCD panel with touchscreen |
AccuTouch:
287 cd/m2 typical
CarrollTouch: 322 cd/m2 typical
IntelliTouch: 322 cd/m2 typical |
| Response
time |
25
msec (typical) |
Viewing angle
(from center) |
Horizontal (left/right):
+/-75° or 150° total
Vertical (up/down): 75°/50° or
125° total |
| Contrast ratio |
400:1 |
| Power
supply |
Type:
External brick
Input
(line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 V
at 5.0 amps max. |
| Power dissipation |
30 W
typical |
| Temperature
|
Operating:
0°:C to 35°:C
Storage: -20°:C to 60°:C |
| Humidity |
Operating:
20%-80%
Storage: 5%-95%
noncondensing |
Weight
(approx. with short stand, all options) |
Actual:
17.38
lb (7.88 kg)
Shipping: 22.66 lb (10.26 kg)
Shipping box dimensions |
| Warranty |
Touchcomputer
warranty
Backlight lamp life: min
40,000 hours to half brightness |
| Agency
approvals |
UL/cUL
(*recognized component), FCC, TÜV-GS, CE, VCCI, C-Tick |
| Speakers |
Two-watt/channel speakers in display head |
| User's controls |
Side: Power and user controls with lockout function for public use |
| Mounting options |
75 mm VESA mount Removable base |
| Other features |
Energy save mode (less than 2 watts)
Touchscreen sealed to bezel and LCD
Security lock receptacle |
The Elo Entuitive 1529L Touch Computer is also known as the Elo 1529L Touchcomputer.
|
