Elo Entuitive 1547L Touchscreens
The Elo Entuitive 1547L has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

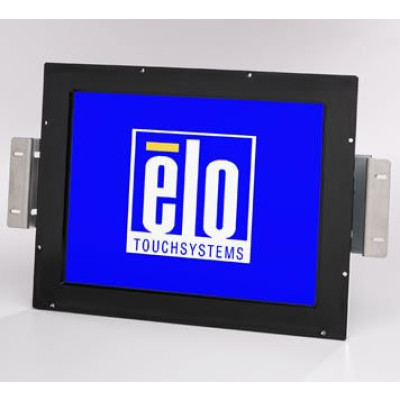

15" LCD Rear Mount Touchscreen, Black
The Elo Entuitive 1547L is available with Elo's projected capacitive technology, which enables touches to be sensed through a protective layer in front of the display. The Entuitive 1547L DirectTouch model includes a 7.8 mm sensor with tempered glass outer layer and a minibezel with watertight seal. Entuitive 1547L ThruTouch touchmonitors include only the touch sensor layer and are designed to work behind customer-supplied non-metallic materials (e.g., a store window, vandal-resistant materials up to 18 mm thick, oversized glass). ThruTouch offers true flat surfaces without bezels, as well as unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications.
|
|
| Part # |
Description |
Price |
Order |
| E958504 |
This part is replaced by E431187.
Entuitive 1547L, 15" LCD rear mount touchmonitor, IntelliTouch touch technology, Dual Serial/USB touch interface, RoHS, Anti-glare surface treatment
|
$649.00
Stock level: 48 |
|
| E521480 |
Entuitive 1547L, 15 inch LCD Rear Mount Touchmonitor (AccuTouch Touch Technology, Dual Serial/USB Touch Interface, RoHS and Antiglare Surface Treatment) - Color: Dark Gray
|
$649.00
Stock level: 56 |
|
| E331332 |
Entuitive 1547L, 1547L REARMOUNT, SECURETOUCH USB/SERIAL, Gray BEZEL, RoHS
|
$694.00
Stock level: 3 |
|
| C32978-000 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, AccuTouch (resistive) Touch Technology, USB Interface and Antiglare Surface Treatment. Color: Dark Gray
|
Call for Details |
| 576426-000 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, IntelliTouch (capacitive) Touch Technology, USB Interface and Antiglare Surface Treatment. Color: Dark Gray
|
Call for Details |
| 387888-000 |
Entuitive 1547L, 15" LCD Rear Mount, Modular Kiosk, CarrollTouch, Serial Interface, Color: Dark Gray
|
Call for Details |
| F10657-000 |
Entuitive 1547L, 15" LCD Rear Mount, CarrollTouch Touch Technology, USB Interface and Antiglare Surface Treatment. Color: Dark Gray
|
Call for Details |
| F60749-000 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology, DirectTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment. Color: Black
|
Call for Details |
| A71384-000 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology, ThruTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment
|
Call for Details |
| A65349 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with SecureTouch 0.25 (6 mm) Touch Technology, Dual Serial/USB Interface and Antiglare Surface Treatment
|
Call for Details |
More Configurations
| Part # |
Description |
Price |
Order |
| A65349-000 |
Entuitive 1547L, 15" LCD rear mount touchmonitor, SecureTouch 0.25 - 6 mm touch technology, USB touch interface, Anti-glare surface treatment, Color: Dark Gray
|
Call for Details |
| E073151 |
Entuitive 1547L, 15" LCD rear mount touchmonitor, CarrollTouch technology, Serial touch interface, Plastic, RoHS, Anti-glare surface treatment, Color: Dark Gray
|
Call for Details |
| C80308-000 |
This part is replaced by E331332.
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, SecureTouch Touch Technology, Serial Touch Interface and Antiglare Surface Treatment. Color: Dark Gray
|
Call for Details |
| 823428-000 |
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, Modular Kiosk, IntelliTouch (capacitive) Touch Technology, Serial Interface and Antiglare Surface Treatment
|
Call for Details |
| 516452-000 |
Entuitive 1547L, 15" LCD Rear Mount, Modular Kiosk, AccuTouch (resistive) Touch Technology, Serial Interface and Antiglare Surface Treatment. Color: Dark Gray
|
Call for Details |
| 576426-USB |
Entuitive 1547L, 15" LCD Rear-Mount Touchmonitor, IntelliTouch, USB interface, Color: Black
|
Call for Details |
Elo Entuitive 1547L Details
Entuitive 1547L 15" LCD Rear-Mount Touchmonitor (3000 Series)
Features
- Long lasting product cycle—enclosure controlled by Elo specifications
- Panel upgrades possible
to the model in the future without external changes
- Integrated precision minibezel with
watertight
0.5 mm seal
- Multiple mounting options including rear-mount,
VESA
mount, and front/panel-mount bezels or 19" rack-mount bezel
- Choice of touch technologies:
AccuTouch Five-Wire Resistive,
CarrollTouch Infrared Technology,
IntelliTouch Surface
Wave, Projected
Capacitive, impact resistant SecureTouch Surface Wave,
or Surface Capacitive.
- Serial or USB touch interface
- Multilingual remote on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
- 3-D electronic design files available
Specifications
| Model |
Entuitive 1547L |
| Series |
3000 |
| Availability |
Worldwide |
| Case/Bezel
color |
Black |
| Display |
Size:
15"
diagonal
Type:
Active matrix TFT LCD
Aspect
ratio:
4 x 3
|
| Useful screen area |
Horizontal:
11.9" (304 mm)
Vertical: 8.9" (228 mm) |
Monitor
dimensions
(dimensions shown are with horizontal mounting bracket) |
Projected
Capacitive/ThruTouch Width:
18.1" (460 mm)
Projected
Capacitive/ThruTouch Height:
11.5" (293 mm)
Projected
Capacitive/ThruTouch Depth:
2.52" (64 mm)
Other
monitors width:
18.1" (460 mm)
Other
monitors height: 11.6"
(296 mm)
Other
monitors depth:
2.83" (72 mm)
|
| Optimal (native) resolution |
1024
x 768 at 60, 70, or 75 Hz |
| Other supported resolutions |
1024 x 768 at
65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56,
60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz |
| Colors |
16
million |
Brightness
LCD panel |
350 cd/m2
(typical) |
Brightness
LCD panel with touchscreen |
AccuTouch:
287 cd/m2 (typical)
CarrollTouch:
322 cd/m2 (typical)
IntelliTouch: 322 cd/m2 (typical)
Projected
Capacitive/DirectTouch:
298 cd/m2 (typical)
Projected
Capacitive/ThruTouch:
315 cd/m2 (typical) (brightness will vary with different
materials/thickness that are used to cover the touchscreen)
SecureTouch: 315 cd/m2 (typical)
Surface capacitive: 276 cd/m2 (typical) |
| Response
time |
25
msec (typical) |
Viewing angle
(typical, from center) |
Horizontal (left/right):
±75° or 150° total
Vertical (up/down):
75/50° or 125° total |
| Contrast ratio |
500:1 |
| Input video format |
Analog
(no proprietary video card needed) |
| Input video
signal connector |
Mini
D-Sub 15-Pin VGA type |
| Input frequency |
Horizontal:
31.5–60 kHz
Vertical:
56–75 Hz |
| Power
supply |
Type:
Internal power supply
Input
(line) voltage: 100–240 VAC, 50–60 Hz |
| Power dissipation |
22
W (typical) |
| Temperature
|
Operating:
0°C to 50°C
Storage: -30°C to 60°C |
| Humidity |
Operating:
20%–80%
Storage: 5%–95%
noncondensing |
Weight
with all options
(approx.) |
Projected
Capacitive/DirectTouch Actual:
12.1
lb (5.5 kg)
Projected
Capacitive/DirectTouch
Shipping: 18.7 lb (8.5 kg)
Projected
Capacitive/ThruTouch Actual:
11.6
lb (5.3 kg)
Projected Capacitive/ThruTouch Shipping:
18.2
lb (8.3 kg)
Other
monitors actual:
10.85
lb (4.92 kg)
Other
monitors shipping: 16.90 lb (7.66 kg)
|
| Warranty |
Projected
Capacitive
monitors:
1 year
Other monitors:
3 years
Backlight lamp life: min 40,000 hours to half brightness |
| Agency
approvals |
UL/cUL,
TÜV-Bauart, CE, FCC/IC/VCCI/C-Tick Class B |
| On-screen
display (OSD) |
Remote
OSD with 1.8m cable
|
| User's
controls |
Remote
OSD:
Auto/Sel, up, down, menu
OSD:
contrast, brightness, H/V position, color, temperature,
clock, phase, recall, OSD time, language (English, German,
Spanish, Japanese, French)
OSD disable/enable: power, volume, and/or OSD menu |
| Mounting
options |
75 mm
VESA
mount
Panel cut-out
Mounting brackets included
19" rack-mount option
(not available for Projected Capacitive/ThruTouch)
Panel-mount option (not available for
Projected Capacitive)
|
The Elo Entuitive 1547L is also known as the Elo 1547L.
|
