Hand Held IT5620 Scanners

This product has been discontinued. It is replaced by the Hand Held 3820.

25,000 Reads on One Charge!

The Hand-Held IT5620 Cordless Linear Imager was created specifically to meet the demands of retail and light commercial applications, the IT5620 provides users freedom of movement to increase productivity and improve customer satisfaction. Featuring Bluetooth, the IT5620 reading capability is 10 meters (33 feet) of range and utilizes adaptive frequency hopping for improved performance in existing RF environments. Its power is provided by a lithium Ion battery capable of delivering up to 25, 000 reads between charges.

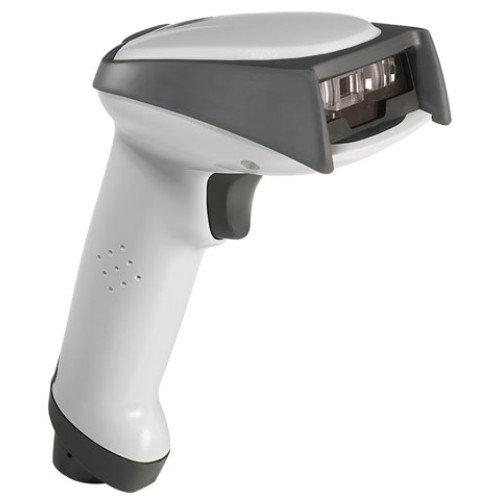

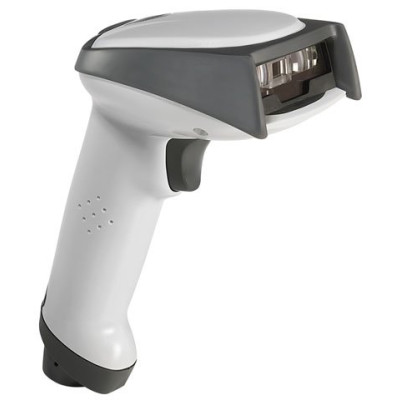

Photo of Hand Held IT5620
Hand Held logo
Information:  Specifications | Cable example images | Ask a question |
Accessories:  No accessories available |
Part # Description Price Order
5620SR0C0B-0FA0 ImageTeam 5620, USB interface. Includes Imager, Base, USB Cable, US Power supply, System Manual and Battery Pack. (Formerly listed as P/N 5620SR0C0-0FA0) Call for Details
5620SR0C0B-0GA0 ImageTeam 5620, PS/2 interface. Includes Imager, Base, US Power supply, System Manual and Battery Pack. (Formerly listed as P/N 5620SR0C0-0GA0). PS/2 Cable not included, see P/N 42206132-02. Call for Details
5620SR0C0B-0IA0 ImageTeam 5620, Keyboard wedge interface. Includes Imager, Base, Keyboard wedge Cable, US Power supply, System Manual and Battery Pack. (Formerly listed as P/N 5620SR0C0-0IA0) Call for Details
5620SR0C0B-0JA0 ImageTeam 5620, RS-232 interface. Includes Imager, Base, RS-232 Cable, US Power supply, System Manual and Battery. (Formerly listed as 5620SR0C0-0JA0) Call for Details

Hand Held IT5620 Details

Performance

Illumination: 630 NM Visible Red LED

Receiving Device: 3648 element linear imager

Reading Distance: From 1 in. (2.5 cm) to 24 in. (61 cm) on medium density codes

Reading Width: 7.5 mil code: 7 in. (18 cm) from nose, 6.6 in. (17 cm) wide

13 mil code: 16.5 in. (42 cm) from nose, 10 in. (25 cm) wide

Resolution: 5 mil. at 5 in. (13 cm) distance

Skew Angle: +65o

Pitch Angle:+65o

Minimum Symbol Contrast: 20%

Scan Rate: Up to 270 scans per second

Decode Rate: 270 decodes per second

Mechanical/Electrical

   5620 Scanner with Battery2020 Base
Dimensions
  Weight:9.2 oz. (261 g)8.8 oz (250 g) w/o cable
  Height:6.5 inc. (16.5 cm)3.1 in. (7.9 cm)
Power Requirements
  Input Voltage:3.6 V internal battery4.5 to 12 VDC (host)
            8.5 to 9.5 VDC brick
  Current Draw:   125 mA max @5V (no charging)
      100 mA max @ 12V (no charging)
      825 mA max @ 12V (charging)

Environmental

Sealing:IP 41 (Water and Dust Resistant)IP 41 (Water and Dust Resistant)
Temperature
  Operating:32° to 122° F (0° to 50° C)32° to 122° F (0° to 50° C)
  Storage:-40° to 140° F (-40° to 60° C)-40° to 140° F (-40° to 60° C)
Humidity:up to 95%, non-condensingup to 95%, non-condensing
Mechanical ShockFunctional after 50 drops from 6 ft. (1.8 m)Functional after 50 drops from 3.3 ft. (1m)

Ambient Illumination: 0-76,000 lux

ESD Protection: Functional after 15kV discharge

Radio Frequency: 2.4 to 2.4835 GHz (ISM Band) Freqency-Hopping Bluetooth v. 1.2

Range: 33 ft. (10 m) typical

Data Rates: 720 KBps

Battery

Lithium Ion

Capacity: 1800 mAh

Number of Scans: 20,000

Expected Hours of Operation: 16 hours @ 1 scan every second
Charge Time with 9 VDC brick: 4 hours for full charge from full discharge

Symbologies: China Post, Codabar, Codablock F, Code 2 of 5, Code 11, Code 16K, Code 39, Code 32 Pharmaceutical (PARAF), Code 49, Code 128, EAN/JAN, IATA Code 2 of 5, Interleaved 2 of 5, Korea Post, Matrix 2 of 5, Coupon Code, MSI, Plessey Code, PosiCode, RSS-14, Telepen, Trioptic, UPC-A, and UPC-E. 2005 Sunrise/GTIN compliant.

Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and IBM 46XX retail terminals.
