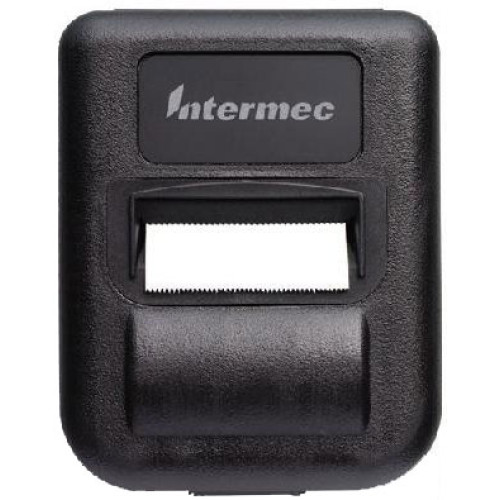

The Intermec PB20 2" printer with Bluetooth means mobile workers will no longer need to go back to a truck to begin to print a ticket or wait for a ticket to print while selecting products to deliver. They can begin printing from 30 feet away. Made from resilient high-density polyethylene, the PB20 can withstand even the most challenging delivery applications. A reliable print mechanism and extended print duration time allow the PB20 to handle the printing requirements of a full 8-hour shift, even under tough conditions. The PB20 delivers exceptional print quality (more than 200 dpi resolution) and versatility, despite its small and lightweight size. The palm-sized PB20 thermal printer offers graphics capability, downloadable fonts, IrDA, serial RS-232, and 4MB flash memory for added performance.
PB20, Direct Thermal, 203 dpi, 1.83 ips, 2" width, Bluetooth Module. Includes 7.2V Lithium-Ion 900 MAh battery, AC wall charger and 12V vehicle charger. RoHS.
PB20, Direct Thermal, 203 dpi, 1.83 ips, 2" width, Bluetooth Module. Includes 7.2V Lithium-Ion 900 MAh battery, AC wall charger and 12V vehicle charger. Designed for linerless labels.
This part is replaced by PB20B0B140. PB20, Direct Thermal, 203 dpi, 1.83 ips, 2" width, Bluetooth Module. Includes 7.2V Lithium-Ion 900 MAh battery, AC wall charger and 12V vehicle charger.
Call for Details
Intermec PB20 Details
Physical Characteristics
Length: 14.35cm (5.65”)
Height: 6.1cm (2.4”)
Width: 11cm (4.4”)
Weight: 393g (13.85 oz) without paper;
418g (14.72 oz) with paper
Standard Features
Bluetooth and printing of signature capture capability
Power
Battery Type: 7.2V Lithium-Ion 1800mAh (2) 3.8V cells in series
Battery Life: Dependent on usage. An 8-hour shift is easily accomplished.
Power Management: AC wall charger and 12V vehicle charger
AC Adapter/Recharging: Three hours to 8 hour shift capacity. Nine hours to full charge using a vehicle charger power adapter or standard AC power adapter.
Print Specifications
Print Resolution: 203 dpi (dots per inch)
Print Speed: 4.65cm (1.83”) per second
Characters/Fonts
Characters, graphics and bar codes.
Hundreds of fonts available. Comes with seven standard load fonts.Integrated RF Module Bluetooth
Wireless LAN Characteristics Range: 10m (30’)
Environment Operating Temperature: 0 to 40 C (32 to 104 F)
Regulatory Approvals FCC Title 47, Part 15, Subpart B, Class B
EN55022 Class B EN50082-1
IEC1000-3-2
IEC1000-3-3
