Includes the Printer, Cables, Drivers, Software and Labels - all in one package!

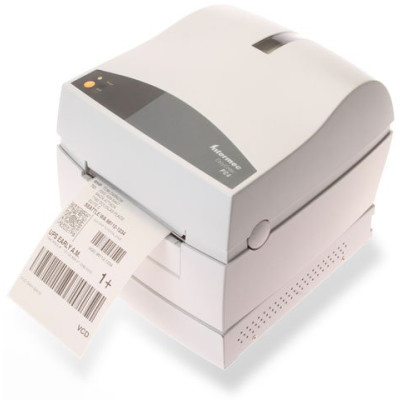

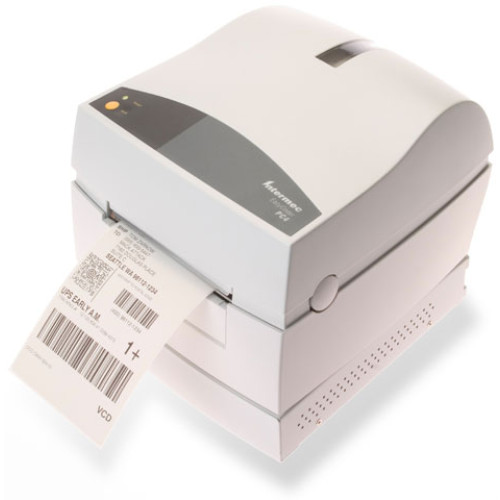

The Intermec EasyCoder PC4 is the number one choice for users who need fast setup and simple operation. Drivers, software programs and the necessary cables are included in the printer package, so busy users can get up and running quickly. USB, parallel and RS-232 connections are standard, as is a 200 dpi print resolution (a 300 dpi is available as an optional feature). The EasyCoder PC4's clamshell design makes loading labels and ribbons quick and easy. The Intermec EasyCoder PC4 is also compatible with EasyCoder 91 and 7422 applications. Ships with full-featured version of LabelShop START label design software.
EasyCoder PC4, EasyCoder C4 Direct thermal & thermal transfer Printer (Standard Firmware, US Power cord, Tear Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash)
EasyCoder PC4, Direct Thermal Printer; Standard Firmware, US Power cord, Tear-Off and Self Strip with LTS, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash
EasyCoder PC4, Direct thermal & thermal transfer Printer, Standard Firmware, US Power cord, Cutter, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash
EasyCoder PC4, EasyCoder C4 Direct thermal & thermal transfer Printer (Standard Firmware, US Power cord, Tear-Off and Self Strip with LTS, 300 dpi, Serial, Parallel and USB Ports and Standard Memory)
EasyCoder PC4, Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
This part is replaced by PC4C00100000. EasyCoder PC4, Direct thermal - thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
EasyCoder PC4, Direct thermal only, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
This part is replaced by PC4C00101000. EasyCoder PC4, Direct thermal - thermal transfer, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
EasyCoder PC4, Direct thermal - thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, UK/European Power cord and tear-off and self-strip with LTS.
EasyCoder PC4, Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and cutter.
Call for Details
Intermec EasyCoder PC4 Details
Physical Characteristics
Length: 257 mm (10.11 in) Height: 167 mm (6.58 in) Width: 230 mm (9.06 in) Weight: 2.3 kg (5.07 lbs)
Print Specifications Label Size –
Max. Width: 118 mm (4.65 in) Max. Length: Standard: 203 dpi - 1,200 mm (47 in), 300 dpi - 800 mm (31 in) Print Direction: Prints text, bar codes and graphics in all four directions Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi) Print Width: 203 dpi - max. 104 mm (4.1 in)300 dpi - max. 102 mm (4.02 in) Printing Speed: Selectable up to 4 ips (101.6 mm)
Media Specifications Label Roll – Max. Diameter: 127 mm (5 in) Core Diameter: Min. 25.4 mm (1 in)Max. 38.1 mm (1.5 in) Paper Width: Max. 118 mm (4.65 in)Min. 25.4 mm (1 in) Label Length: Min. 6.35 mm (0.25 in) Ribbon Roll – Max. length:100 m (328 ft) Labels: A wide selection of stock and custom size labels are available. Ribbons: Intermec transfer ribbons only (wax, hybrid, and resin) in widths of 33, 60, 63.5, 83.5, 89, and 110 mm (1.33, 2.36, 3.29, 3.5, and 4.33 in) centered on 110 mm (4.33 in) wide cardboard cores. Core inner diameter 13 mm (0.5 in) with notches. Max. ribbon roll diameter 41 mm (1.6 in).
Connect & Print Intermec’s program offering “everything in the box”. The printer comes with all included: software, drivers, cables, labels, a handy QuickGuide to facilitate getting started, and a PrinterCompanion CD with label design program, Windows driver and documentation.
Software
EasyCoder PC4 Config Tool - Font & Firmware downloading tool
Intermec’s LabelShop START label design software
InterDriver for Microsoft Windows Supports: Windows 95, 98, 2000, XP, and NT 4.0
Characters/Fonts 5 resident alphanumeric fonts that are expandable 8 times horizontally and 9 times vertically. Also includes DOS 852 Latin 2 (Cyrillic II / Slavic), DOS 860 Portuguese New in 6.10, DOS 857 Turkish, DOS 861 Icelandic, DOS 862 Hebrew, DOS 855 Cyrillic, DOS 866 Cyrillic CIS 1, DOS 851 Greek 1, DOS 869 Greek 2, Windows 1251 Cyrillic, Windows 1254 Turkish, Windows 1255 Hebrew.
Printing of graphics, symbols, and downloading of additional fonts is also possible.
Bar Code Symbologies
All major 1-dimensional bar code symbologies are available, plus five2-dimensional codes: MaxiCode, PDF417, DataMatrix, QR-Code, and Composite Code EAN/ECC for EAN/UCC 128 w/ CC-C.
Environment
+5° to +40°C (+40° to +104°F).
Humidity 10–90% RH non-condensing.
Power Supply Separate power supply unit –Input: 100–240 V AC/50–60 Hz, 1.9 AOutput: 24 V DC, 3.0 A
Interface Standard: RS-232C, USB v.1.1, and Centronics
Protocol XON/XOFF, DSR/CTS
Operator Control One multi-color LED indicator lamp and one Print/Feed key
Regulatory Approvals CE, FCC Class A, C-UL, UL, GS, IEC 950/EN 60950, CB, MIC, CCC, VCCI, C-TIC, BSMI, NOM
Options
Flash memory cartridge, Serial communication cable, RS232 Scanner Cable, Asian fonts cartridges, Cutter unit, Keyboard display unit, EasyLAN 10 External Ethernet adapter, 300 dpi, Mobile Battery Unit.
The Intermec EasyCoder PC4 is also known as the Intermec PC4.
