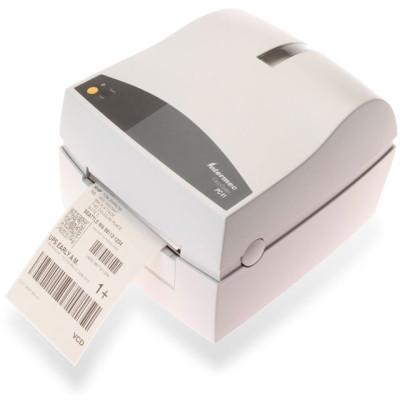

Intermec EasyCoder PC41 Printers

Physical Characteristics

Length: 257 mm (10.11 in)
Height: 167 mm (6.58 in)
Width: 230 mm (9.06 in)
Weight: 2.3 kg (5.07 lbs)

Print Specifications

Max Print Width: 108 mm (4.25”)

Print Speed
Selectable 2, 3, and 4 ips (50.8, 76.2, and 101.6 mm/sec)

Print Resolution
8 dots/mm (203 dpi)

Label/Ticket/Tag
Max Width: 118 mm (4.65 in)
Min. Width: 25 mm (1 in)
Thickness (includes liner): 0.06 mm (0.003 in) to 0.15 mm (0.006 in)Optional thick media spring for media up to 0.20 mm (0.008 in)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label roll max diameter: 127 mm (5 in)
Label roll core ID (min/max): 25.4 mm (1 in) / 38.1 mm (1.5 in)
Media type: Thermally sensitive media

Ribbon Roll
Ribbon roll max diameter: 41 mm (1.6 in)
Ribbon roll core inner diameter: 13 mm (0.5 in) with notches
Ribbon type: Wax, wax/resin, resin

Interface
Standard: RS-232 Serial and Centronics Parallel
Optional: External Ethernet, IBM Twinax or Coax

Connect & Print
Printer comes standard with software, drivers, cables, labels, and QuickStart Guide to facilitate getting started.

Software
LabelShop START label design softwareInterDriver with ActiveX Controls for Microsoft Windows

Bar Code Symbologies
1-D: Code 11, Code 39, Extended Code 39, Code 93, Extended Code 93, Code 128 UCC, Code 128, Codabar, Interleaved 2 of 5 UPC-A, UPC-E, 2 and 5 digit add-on, UPC Shipping container code, EAN-13, EAN-8, 2 and 5 digit add-on, EAN-128, Postnet2-D: Code One, Code 16K, Code 49, DataMatrix, MaxiCode, PDF417, QR Code

Fonts
Supports 21 resident bitmap, 3 resident scalable fonts, and users can download up to 16 bitmap fonts using PrintSet.

Character Sets
Resident codepages: Code page 850, French, German, ISO 256 character, Italian, Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII.

Memory
Standard: 512 kB RAM
Optional: 1 MB Flash

Protocol
IPL (Intermec Programming Language)

Power Supply
Separate power supply unit –
Input: 100-240V AC/50-60 Hz, 1.9A
Output: 24 V DC, 3.0 A

Operating Environment
Operating temperature: 5°C to 40°C (40°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 10% to 90% non-condensing

Regulatory Approvals
FCC 47 CFR part 15A, CE, UL + cUL, GS, NOM, C-Tic
