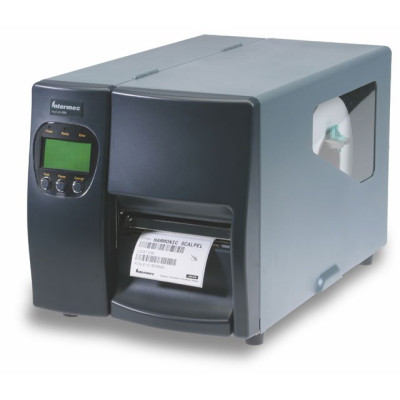

Intermec EasyCoder PD4 Printers

Physical Characteristics
Length: 455 mm (19.9 in)
Height: 283 mm (11.1 in)
Width: 276 mm (10.8 in)
Weight: 13 kg (28.7 lbs.)

Print Specifications
Max.Width: 104 mm (4.09 in) at 203 dpi; 106 mm (4.24 in) at 300 dpi.
Max. Length: 1270 mm (50 in) at 203 dpi; 559 mm (22 in) at 300 dpi.

Print Speed
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi

Print Direction
Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
8 dots/mm (203 dpi), 11.8 dots/mm (300 dpi)

Label/Ticket/Tag
Max.Width: 118.0 mm (4.65 in)
Min. Width: 25.0 mm (1 in)
Thickness: 0.06-0.25 mm (2.4-9.8 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.35 in)
Label Roll Core: 38-76 mm (1.5-3 in)
Media Types: Direct thermal and Thermal
Transfer Media: Roll-Fed, Fanfold with gaps, Blackmark, Punched holes, and Continuous

Ribbon
Max ribbon length: approx. 450 m (18 000 in)
Ribbon Roll Core: 25 mm (1 in)
Ribbon Type: Wax, wax/resin, resin
Coated side: Ink in / Ink out

Interfaces

• Serial RS-232, up to 38 400 kB/s
• USB 1.1
• Parallel Centronics

Protocols
Printer command language: ESim
Communication Protocols: XON/XOFF, DSR/DTR

Software
Applications, Drivers, and Tools available on the PrinterCompanion CD include:

• Driver for Windows 98, Me, NT 4.0, 2000, XP
• Intermec LabelShop START label design and print package
• EasyCoder PD4 Config Tool for installation of additional fonts, images, and firmware upgrades
• Asian Fonts Installation Tool

Bar Code Symbologies
1-dimensional: Code 39, Code 93, Code 128 (subset A,B,C), UCC 128, UPC A / E (add on 2 & 5), I 2 of 5, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14
2-dimensional: DataMatrix, PDF417, MaxiCode, QR Code

Characters Sets
5 resident alphanumeric fonts (included OCR A & B) expandable 8 times horizontally and 9 times vertically. All fonts in 4 directions rotation (0, 90, 180, 270 degrees)

Asian double-byte fonts in 8 directions rotation (Traditional Chinese, Simplified Chinese, Japanese Kanji, Korean Hangul), and additional Windows Bit-map fonts are available on the Printer Companion CD and the Intermec corporate website.

Graphics
Supports PCX fi le format.

Memory
Standard: 2MB Flash memory 2MB DRAM
Optional: 2MB additional Flash memory

Display
Back-lit graphic LCD 128 x 64 dots*
3 LED indicator lamps

Keypad Control Panel
Three Keys: Feed, Pause, Cancel

Power Supply
115/230VAC auto-switch w/PFC
Voltage Range: 100-240 VAC ±10%.
Frequency Range: 45-65 Hz

Operating Environment
Temperature: +5°C - 40°C (+40°F - 104°F)
Humidity: 30-85% RH non-condensing
Noise: 50 dB (printing), no noise standby

Regulatory Approvals
CCC, BMSI, CE, FCC Class A, CUL

Field Options and Accessories
Cutter*, Self-Strip* (Peel-Off ), Internal Rewinder*, Flash Memory, EasyLAN 10 External Ethernet Adapter

*Printer models with front panel display only
