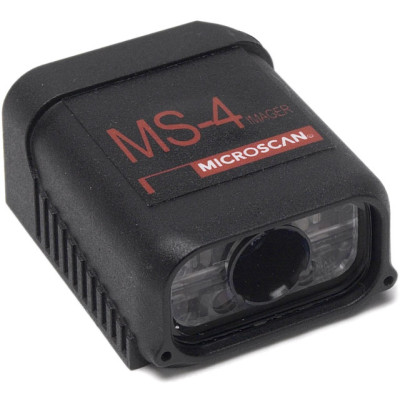

Microscan MS-4 Imager Scanners
Made for embedded barcode applications
The MS-4 Imager is the smallest high performance imager. Its compact size and shape measures 1" x 1.8" x 2.10" and weighs less than 2 ounces. The MS-4 Imager's size, right angle mirror option, and design features such as the corner positioned cable conserve cubic space to create the tightest fit possible within instrumentation and equipment. The Microscan MS-4 Imager decodes linear barcodes or 2D codes in any orientation and has a wide scan window allowing any code to be read as close as 1." Visible performance indicators include a symbol locator, good read indicator and read performance.
|
|
| Part # |
Description |
Price |
Order |
| FIS-0004-0001 |
MS-4 Imager, Standard Density Imager, RS-232 Interface, 5VDC
|
$1095.00 |
|
| FIS-0004-0002 |
MS-4 Imager, Low Density Imager, RS-232 Interface, 5VDC
|
$1095.00 |
|
| FIS-0004-0003 |
MS-4 Imager, Standard Density Imager, Standard USB, Cable Included
|
$1095.00 |
|
| FIS-0004-0004 |
MS-4 Imager, Low Density Imager, Standard USB, Cable Included
|
$1095.00 |
|
Microscan MS-4 Imager Details
MS-4 Imager
The MS-4 Imager is designed specifically
for embedded bar code applications. It is the ideal imager for
OEM design engineers who need to read 2D codes in tight
spaces, while still requiring 100% data
integrity.
Currently the world's smallest high
resolution imager, the MS-4 Imager's ultra-compact size and wide
angle optics provide the widest scan window available for
reading any code at close range. EZ button setup, symbol
locator, and visible performance indicators provide ease of
use while omni directional reading and form factor allow for
positioning flexibility.
Highlights:
Up to 10
decodes/second
Read range: 2
to 6" (50.8 to 152.4 mm)
Read
performance LEDs
Internal
diagnostics
Compact Shape and Size
MS-4 Imager is
the world's smallest high performance imager, measuring 1"
(25.2 mm) height x 1.8" (45.7 mm) width x 2.10" (53.3) length
and weighs less than 2 ounces (57
g).
Omni-Directional Reading
Decodes linear
bar codes or 2D codes in any orientation. Compact shape and
omni directional reading allow for flexible positioning, with
no need to plan for laser line alignment.
Wide Field
of View
Wide scan window allows linear and 2D codes to
be read as close as 1" (25.2 mm).
Real-Time
Controls
The inputs include a trigger signal, a “new
master" input, and a programmable input for resetting counters
or releasing outputs. The outputs can be configured to
activate upon a number of conditions including matchcode and
diagnostic operations.
High Data Level
Output
2D codes have a high level of data capacity
storage and the MS-4 Imager maintains high decode speed to output
large amounts of data in milliseconds.
Mounting
Flexibility
The MS-4 Imager's compact size, right angle mirror
option, and design features such as the cable's corner
positioning conserve cubic space to create the tightest fit
possible within instrumentation and
equipment.
Push-Button Setup
The EZ button is
a powerful setup feature. Three programmable positions can be
used to quickly perform complex tasks. EZ button
user-selectable functions include:
Read
Rate
Calibration
Save for
Power-on
Load New Master
Sleep
Mode
Performance LEDs
To streamline the setup
process, multicolored LEDs, in conjunction with a programmable
beeper, provide instant notification of a successful "read."
The LEDs also provide a visual read rate test.
Symbologies:
The Microscan MS-4 Imager is also known as the Microscan MS4.
|
