PartnerTech CD-8240 Series Pole Displays

Part #

Description

Price

Order

CD8240, RS-232, 3 line x 15 column, Backlit LCD Display, 8.2mm Character Height, with Graphic Mode

Call for Details

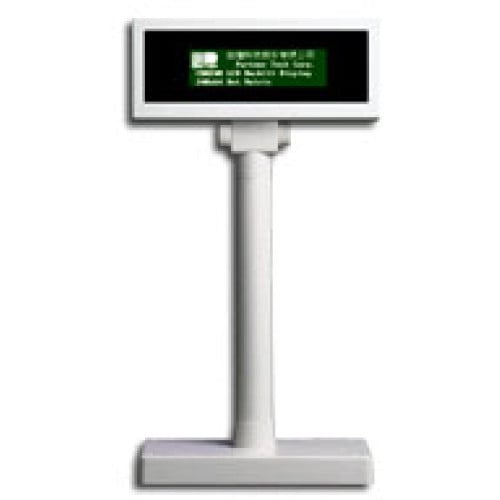

The CD-8240 customer pole display uses a liquid crystal display (LCD) with a resolution of 240 x 64 dots. For this reason, the CD-8240 makes it possible to display both graphics and text.

The CD-8240 customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you the flexibility to tailor the display position to your unique application. With 3 lines and 15 columns, the CD-8240 can display 45 alphanumeric messages and customized graphical displays. The CD-8240 customer pole display uses an easy to connect RS-232C serial port connection with available communication speeds of 4800 or 9600 bps. The CD-8240 pass-through function allows you to connect another serial device by sharing one single serial port on the host system.

Model(s)	CD-8240
Display Method	Liquid crystal display (LCD) 240 x 64 dots
Display Color	STN black and white type
Brightness	CCFL 580 cd/m2
Interface	RS-232 Serial (D-Sub 9 pin) with pass through function*
Power Supply	12VDC +/- 5%
Power Consumption	4 watts maximum
Safety	FCC, CE, EMC Approved
MTBF	10,000 hours
Weight	2 lb (.9 kg)
Viewable Angle	8 to 35 degrees
Rotation Angle	Maximum 270 degrees
Character Font	16 x 16 dot matrix
Character Size	8.2 mm x 8.3 mm
Character Pitch	8.3 mm
Character Type	Optional Chinese (GB or Big5), Korean or Japanese (Kanji)
Number of Characters	40 (15 columns x 3 lines)
Notes	* Standard Base includes a 9-Pin serial port.
