All Barcode Discount > Point of Sale Terminals > Posiflex Point of Sale Terminals > Posiflex TP 6000

Posiflex TP 6000 Point of Sale Terminals

The Posiflex TP 6000 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

With a unique footprint space saving design, the TP 6000 is an ideal solution for countertop or wall mount applications

The TP 6000 Touch Terminal uses state of the art Intel Celeron CPU technology that is easily upgradeable via Socket 370 technology. The TP 6000's high-speed processor easily operates various kinds of customer applications such as Hospitality, Kiosk, Retail, and E-Commerce

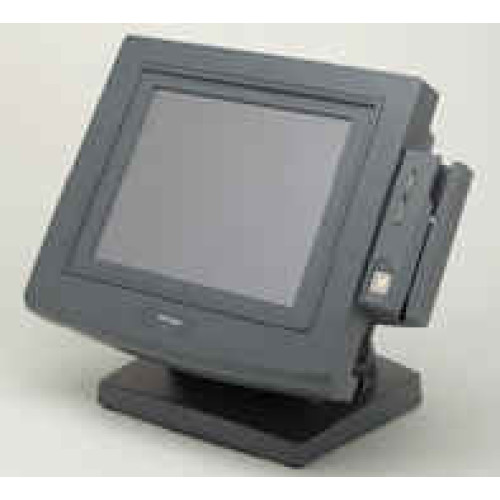

Photo of Posiflex TP 6000
Posiflex logo
Information:  Posiflex's TP 6000 page | Ask a question |
Accessories:  Accessories/Options |

We will not be undersold!  Additional savings available on this item. Contact us for details.

Part # Description Price Order
TP6012X1W98 TP 6000, TP6000, with 500MHz Celeron processor, 64MB RAM, 6.4GB hard drive, 12.1" TFT touch monitor & Windows 98 operating system. Order all additional peripheral devices separately. See accessories. Call for Details
TP6112R2W98 TP 6000, 12" Touch Terminal, 1.2 GHz Celeron processor, 128MB RAM, Windows 98 operating system Call for Details
TP6115R4 This part is replaced by TP8015R4NOS-AT.
TP 6000, 15" Touch Terminal, 1.2 GHz Celeron processor, 256MB, no OS installed 		Call for Details
TP6115R4W2K TP 6000, 15" Touch Terminal, 1.2 GHz Celeron processor, 256MB, Windows 2000 Call for Details
TP6115R4WXP TP 6000, 15" Touch Terminal, 1.2 GHz Celeron processor, 256MB, Windows XP Pro Call for Details

Posiflex TP 6000 Details

The "JIVA 6000" Touch Terminal by POSIFLEX uses state of the art Intel Celeron CPU technology that is easily upgradeable via Socket 370 technology. The high-speed processor easily operates various kinds of customer applications such as Hospitality, Kiosk, Retail, and E-Commerce which all depend on high CPU performance. The JIVA 6000 is designed to support Windows 98/ 2000/ XP Professional / Linux

With a unique footprint space saving design, the JIVA 6000 functions for countertop or wall mount applications. The JIVA 6000 has a solid design that is made to withstand the rigors of daily usage in the harshest environments.

Key Features

The JIVA 6000 houses the latest technology and security features the industry has to offer:

  • 15.1 LCD panel - TFT active matrix with a dual backlit tube.

  • A choice of Celeron 566MHz to 1.3Gz

  • Spill proof water-resistant structure protects circuitry and allows for easy cleaning.

  • A patented finger release lever "geared locking mechanism" easily adjusts the LCD angel's tilt angle from 17.5o degrees to 87.5o degrees.

  • Security lock prevents unauthorized access to input / output data devices.

  • The JIVA 6000 supports dual-independent video output.

  • In order to prevent accidentally powering down the system, the power switch on the JIVA 6000 can be programmed to be only "TURN ON" or can be powered on via LAN or modem.

  • Integrated UPS functionality protects the system from intermittent power failures (battery optional).

Options include:

  • Integrated MSR, smart card and finger print reader (3-in-1) attachment.

  • Integrated MSR, smart card reader, finger print sensor and 40 Dynakey programmable keyboard (4-in-1) attachment.

  • Integrated customer display module.

The JIVA 6000 Touch Terminal is designed to meet your current and future needs!

Specifications JIVA 6015

LCD Resolution

1024 X 768
Brightness

250 nit/m2
Audio output Standard
Mic input Standard
LCD Panel

15.1" TFT
CPU Celeron 1.2 GHz
Touch Resolution 1024 x 1024
Second Display Interface VGA
Display Memory Memory size programmable up to 64MB
DIMM Memory PC100 SDRAM x 2 DIMM up to 1 GB
Serial Port With +5VDC 4 available with PS/2 touch interface, 3 available with RS232 touch controller interface
Parallel Port 1
CR Port 1 port controls 2 devices (under COM1)
USB Port 5
KB Port 1 x PS/2 type
Mouse Port 1 x PS/2 type
LAN Port 10/100 MHz base Ethernet
HDD 20 GB up
FDD USB interface
Compact Flash Port N/A
Internal UPS Yes (Battery optional)
ON/OFF Control Software controlled for Mechanical ON/OFF or Mechanical ON / Software OFF
Touch Sensor Resistive type
Tilt adjustment From 17.5o to 87.5o
Power Wake up Through alarm/LAN/RS232 Modem
Mounting Option Table top or Wall mounted or Space Pole
Power settings Standby Mode
Touch Control Function Emulate mouse left / right button (for WIN98 only), double click and drag & drop
Touch Beep controls Sound pitch adjustment, sound enable/disable by software
Power Supply Input 100~240V, output 12V/80W AC adaptor
Housing Color Charcoal
Storage Condition -20o ~ +60oC; 10%RH ~ 80%RH; non-condensing maximum wet bulb 28.9oC
Operation Condition 0o ~ +40oC; 20%RH ~ 80%RH; non-condensing maximum wet bulb 26oC
Dimension 375mm (W) x 270 mm (D) x 360 ~ 380 mm (H) 14.8"x10.6"x10.8"~15.0"
OS Support Win 98 / NT / 2000 / XP Professional / Linux
Weight
8.8Kg (19.4 lbs.)
Safety Certifications PSU: UL/VDE/T mark, Terminal: FCC, CE (meet IEC 1000-4-2 class A)
Option I Attachment
SD-100 3-in-1 module includes: MSR, smart card reader, and finger print sensor/button reader
MSR in USB Interface ISO 7811 option 2 tracks (1&2 or 2&3), 3 tracks (1,2&3 with software programmable parameter) or JIS II
Smart Card Reader USB Interface ISO 7616-3 compliance Compliance with Microsoft PC/SC specification 1.0 Support one smart card slot
Finger Print Sensor USB Interface Detection area: 11.4*11.4mm Detection matrix: 96*96 pixels OS support: WIN95/98/2000
Option II Attachment
KP-100 4-in-1 mini footprint design security keyboard, integrated with MSR, smart card reader, finger print sensor and 40 keys(24 programmable keys and ten-key configuration) attachment
Total Keys 40 keys
Predefined Keys 0-9, +, -; total 16 keys
OS Support Programmable driver for WIN98/NT/2000/XP and DOS 6.2
Code Programmable ASCII or SCAN code include all control code
Programmable Capacity 1 to 255 characters per key
Power Source 5V/200 mA max. From the PS/2 KB port
Data Memory 100 years data retention
MSR in USB Interface ISO 7811 option 2 tracks (1&2 or 2&3), 3 tracks (1,2&3 with software programmable parameter) or JIS II
Smart Card Reader USB Interface ISO 7616-3 compliance Compliance with Microsoft PC/SC specification 1.0 Support one smart card slot
Finger Print Sensor USB Interface Detection area: 11.4*11.4mm Detection matrix: 96*96 pixels OS support: WIN95/98/2000
Option III Attachment
PD-302 2 by 20 LCD with yellow green back light customer display mounted on top back side

The Posiflex TP 6000 is also known as the Posiflex TP6000.
