PSC Magellan 2300HS Scanners

The PSC Magellan 2300HS has been renamed to the Datalogic Magellan 2300HS.

Seamless Integration with Existing Systems

The PSC Magellan 2300HS includes the premiere-level Magellan scan technology to power one of the fastest and user-friendly horizontal scanners on the market. The Magellan 2300HS's large, dense scan area improves both checkout speed (since items scan regardless of their angle) and operator comfort (less twisting of items reduces wrist strain). The Magellan 2300HS not only reads popular barcode symbologies but also Reduced Space Symbology (RSS). Combining the flash memory for software upgrades, system diagnostic reporting, PSC's Productivity Index Reporting software and the high-performance FirstStrike decoding, the Magellan 2300HS will perform at a high level in any installation.

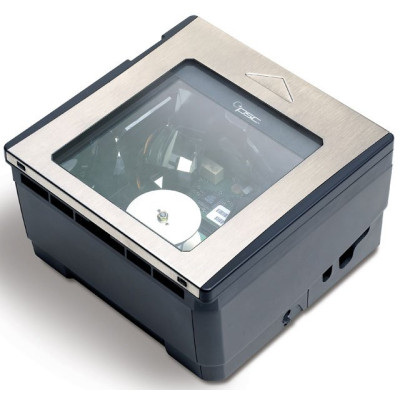

Photo of PSC Magellan 2300HS
PSC logo
Information:  Specifications | Cable example images | Ask a question | Request a quote |
Accessories:  Accessories/Options |
Part # Description Price Order
M2301-00111-0104A Magellan 2300HS, RS-232, LLT Top, Manual, US power supply $737.00
Stock level: 3
M2300-00111-0104 Magellan 2300HS, RS-232 interface cable (8-0227-04), US power supply, Standard mount $608.10
Stock level: 3
M2303-00111-0104A Magellan 2300HS, Horizontal Scanner, RS-232, Tin Oxide, US Power supply, Standard Mount and Cable 8-0227-04 $608.10
Stock level: 3
M2301-00511-0701A Magellan 2300HS, DL Scan, Keyboard wedge Interface. Includes LLT US Power supply, Keyboard wedge Cable # 8-0735-0. $714.70
Stock level: 3
M2301-00111-0104 Magellan 2300HS, LLT Top, RS-232, US Power supply, STDMOUNT and Cable $756.30
Stock level: 3
M2302-0111-0604AR Magellan 2300HS, SM, Includes US Power supply $666.40
Stock level: 2
M2301-00111-0302A Magellan 2300HS, Horizontal Scanner (IBM, LLT, US Power supply and IBM Cable #8022402) $794.90
Stock level: 3
M2301-00111-0504R Magellan 2300HS, Horizontal Scanner, Sapphire Glass, Power supply, Counter MNT. STD. and RS-232 Cable, Single Line $737.00
Stock level: 3
M2301-00111-0604A Magellan 2300HS, Horizontal Scanner (LLT, US Power supply, Standard Mount, USB Cable and RSS Enabled) $735.80
Stock level: 3
M2301-00112-0100A Magellan 2300HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and No Cable) $733.60
Stock level: 3
M2301-00112-0104A Magellan 2300HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and 8-0227-04) $765.10
Stock level: 3
M2301-00112-0604A Magellan 2300HS, Horizontal Scanner (USB LLT and Power supply) $744.60
Stock level: 3
M23-011R Magellan 2300HS, Horizontal Scanner (LLT Sapphire Glass and RoHS) $789.60
Stock level: 58
M2302-00101-0308H Magellan 2300HS, Horizontal Scanner (46XX, DLC, US, STD and 9B) $737.90
Stock level: 3
M2302-00110-0104A Magellan 2300HS, Horizontal Scanner (RS-232, DLC, US Power supply, Cable #8-0227-04 and RSS Enabled) $697.30
Stock level: 3
M2302-00111-0701A Magellan 2300HS, Horizontal Scanner (DLC Glass, US Power supply, Standard Mount, Keyboard wedge and RSS Active) $703.90
Stock level: 3
M2311-20111-0604A Magellan 2300HS, Horizontal Scanner (USB/K, P/E, LLT, US, STD and 15, A) $768.50
Stock level: 3
M2360-21000-0404BR Magellan 2300HS, Horizontal Scanner (IBM/U, MTR, N, E, MTR, N, E, MTR, N, N, 15, B and R) $760.50
Stock level: 3
MG23-021 Magellan 2300HS, Horizontal Scanner (Multi Interface, DLC Top, STD Counter Mount, No Cable and No Power supply) $735.80
Stock level: 3
M2360-21100-0404BR Magellan 2300HS, Horizontal Scanner (Mettler, 8218 Scale, No to P and EAS Interlock) $726.80
Stock level: 3
M2360-21100-0400BR Magellan 2300HS, Horizontal Scanner (Mettler, 8217 Scale, EAS, Wegman's Config and No Top) $725.40
Stock level: 3
M23-021R Magellan 2300HS, Multi-Interface, FirstStrike, QRG, RSS, DLC Top, Std Counter Mount, No Cable or Power supply. RoHS. $660.50
Stock level: 3
M23-031R Magellan 2300HS, Multi-Interface, FirstStrike, QRG, RSS, Tin Oxide Top, Std Counter Mount, No Cable or Power supply. RoHS. $584.80
Stock level: 3
MG23-031 Magellan 2300HS, Horizontal Scanner (Multi Interface, Tin Oxide, STD Counter Mount, No Cable and No Power supply) $631.70
Stock level: 3
M2311-20110-0308B Magellan 2300HS, Horizontal Scanner (IBM 46XX, 9B, POT, 15, EAS, US CONFIG, Power supply, LLT and No Mount) $863.30
Stock level: 3
M230B-00112-01000R Magellan 2300HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and No Cable) $733.60
Stock level: 3
M230B-00112-06040R Magellan 2300HS, Horizontal Scanner (USB LLT, Power supply, HS1250 Mount/Fill, USB 8-0732-04 RoHS) $744.60
Stock level: 3
M230B-00111-03020R Magellan 2300HS, Horizontal Scanner (Enhanced, US Power supply, 46XX Cable and STD Counter Mount) $794.90
Stock level: 11
M230D-00101-00000R Magellan 2300HS, Horizontal Scanner (Multi Interface, Tin Oxide Glass, No Cable and No Power supply) $631.70
Stock level: 3
M230B-00101-00000R Magellan 2300HS, Horizontal Scanner (Multi Interface, Sapphire Glass and STD Counter MT) $714.60
Stock level: 3
M230B-00111-05040R Magellan 2300HS, Horizontal Scanner (Enhanced with EAS, LLT Top, Power supply, Counter Mount STD. and RS-232 CA) $742.40
Stock level: 3
M230B-00111-06040R Magellan 2300HS, Horizontal Scanner (Enhanced with EAS, LLT Top, US Power supply and USB Keyboard Cable) $740.20
Stock level: 3
M231C-20101-06040R Magellan 2300HS, Horizontal Scanner (Enhanced with EAS, DLC Top, STD Counter MT and USB) $716.00
Stock level: 3
77001-00111-0104A Magellan 2300HS, Multi I/F, Sapphire Glass, STD Mount, RS-232 PC DB-9 4.5m (15') Cable with US Power supply. (Formerly listed as Part# 77001-00111-0104) Call for Details
77001-00112-0104A Magellan 2300HS, Multi I/F, Sapphire Glass, HS1250 Mount, RS-232 PC DB-9 4.5m (15') Cable with US Power supply. (Formerly listed as Part# 77001-00112-0104.) Call for Details
77003-00111-0302 Magellan 2300HS, Multi I/F, Tin Oxide Glass, STD Mount, IBM Port 9B 4.5m (15') Cable with US Power supply Call for Details
MGL23-031 Magellan 2300HS, Multi I/F, Tin Oxide Glass, STD Mount, No Cable or Power supply Call for Details
M2303-00111-0302 Magellan 2300HS, Horizontal Scanner, 46XX, TO, N, US, US, Standard, 4P and N. Call for Details
M2301-00112-0604AR Magellan 2300HS, Horizontal Scanner (USB LLT, Power supply, HS1250 Mount/Fill, USB 8-0732-04 and RoHS) Call for Details
M23-011 This part is replaced by M23-011R.
Magellan 2300HS, Horizontal Scanner (Sapphire Top STD, Counter Mount, No Cable and No Power supply) 		Call for Details
M2302-00101-0403A Magellan 2300HS, Horizontal Scanner (DLC, Standard Mount, IBM USB POT, Cable 8-0525-03 RSS and No Power supply) Call for Details
M2302-00111-0104A Magellan 2300HS, Horizontal Scanner (RS-232, Part#, DLC, N, US, US, STD, 9P and A) Call for Details
M2302-00511-0604 Magellan 2300HS, Horizontal Scanner (DLC, USB/Keyboard wedge, US Power supply, Counter Mount and Cable-#8052504) Call for Details
M2303-00111-0104AR Magellan 2300HS, Horizontal Scanner (RS-232, Part#, TO, N, US, US, STD, 9P and A) Call for Details

PSC Magellan 2300HS Details

Mechanical

Length

  • 6.0” / 15.2 cm
Width
  • 6.0” / 15.2 cm
Depth
  • 3.83” / 9.7 cm
Weight
  • 2.5 lbs. / 1.1 kg

Optical

Scan lines

  • 18
Rate
  • 6,000 RPM
Scan Lines/Sec.
  • 1,800
Depth-of-field
  • 6.0” / 15.3 cm

Environmental

Temperature rating

  • Operating: 50° to 104° F / 10° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • Operating: 5 to 95% NC
  • Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

  • 90-265 VAC, 47-63 Hz
  • 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2300HS autodiscriminates between all of the following supported symbologies

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14 expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • I 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • RS232, IBM 46XX, IBM USB, USB Keyboard

Other

  • Powered RS232 auxiliary port

Safety and Regulatory

Electrical

  • EN60 950 (TÜV Europe)
  • PSE-Mark (Japan); UL 60950 (USA)
  • CSA 60950 (Canada)

Emissions

  • CISPR22-B (World)
  • FCC part 15 Class B (USA)
  • VCCI-B (Japan)
  • EN 55022-B (Europe)
  • NOM (Mexico)

Laser Safety

  • CDRH Class IIa (USA/Canada)
  • EN 60825-1 Class 1(Europe)
  • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
  • IEC 60825 Class 1 (Europe)

Other

EAS compatibility

  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint® Systems
  • Good read acknowledgement with Sensormatic®

The PSC Magellan 2300HS is also known as the PSC Magellan 2300 HS .
