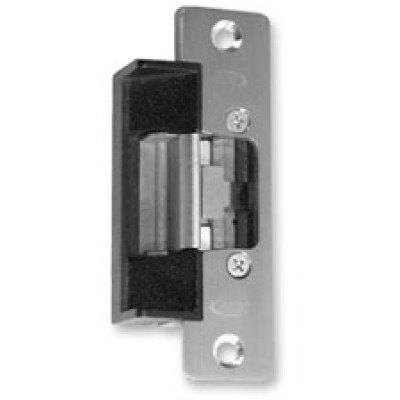

RCI 6514 Electric Strike
Modular faceplate designs for a variety of frame types and cut outs
The RCI 6514 Electric Strike offers a field selectable lock mode: fail locked or fail unlocked just with the turn of a dial. The field selectable voltage input accommodates 12 or 24VDC and 12 to 24VAC in one strike. The low profile version is shallow enough for use with narrow stile aluminum frames. Other notable characteristics include horizontal alignment up to 1/4", monitor switch option, modular plug-in wire connectors for fast hook-up and modular faceplate designs for a variety of frame types and cut outs.
|
|
| Part # |
Description |
Price |
Order |
| L6514 |
6514 Electric Strike, L6514 Low Profile Electric Strike (5/8 inch Latch Depth, 1-1/16 inch Frame Depth, 12 to 24VAC and 12 or 24VDC, Field Selectable Operational Mode, 1-1/4 inch x 4-7/8 inch ANSI Square Corner)
|
$116.00
Stock level: 8 |
|
| S6514 |
6514 Electric Strike, S6514 Standard Profile Electric Strike (3/4 inch Latch Depth, 1-3/16 inch Frame Depth, 12 to 24VAC and 12 or 24VDC, Field Selectable Operational Mode, 1-1/4 inch x 4-7/8 inch ANSI Square Corner)
|
$116.00
Stock level: 10 |
|
|
