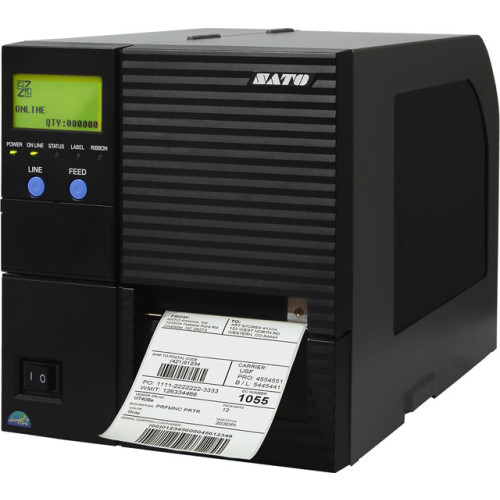

SATO GT Series Printers

Designed to Satisfy Printing Demands in Rugged Environments

The SATO GT Series speeds print jobs in any environment. Its rugged design and durable construction ensure the GT Series can deliver accurate labels in warehouse, assembly-line and other demanding applications. The SATO GT Series has a standard 6 MB Flash ROM capacity (with the ability to expand to 20 MB), giving it the ability to store extra fonts and other graphics.

Part #

Description

Price

Order

WGT408011

GT408e, 203 dpi, Parallel interface

$1145.10
Stock level: 4

WGT408041

GT408e, 203 dpi, Ethernet interface

$1366.50
Stock level: 3

WGT408031

GT408e, Direct thermal & thermal transfer, 203 dpi, 4.1 inch Print width, Up to 12 ips Print speed, 6 MB memory and Serial Interface

$1193.10
Stock level: 3

WGT412011

GT412e, 305 dpi, Parallel interface

$1445.60
Stock level: 4

WGT412041

GT412e, 305 dpi, Ethernet interface

$1671.10
Stock level: 2

WGT424041

GT412e, Direct thermal & thermal transfer, 609 dpi, 4.1 inch print width, Up to 6 ips Print speed, 6 MB memory, Ethernet Interface.

$2010.70
Stock level: 2

MEDIA SPECIFICATION

Sensor Type
Reflective sensor (for use with pre-printed marks)
Adjustable see-through sensor (for die-cut label with gap)

Media Type
Roll and Fanfold: 0.002" � 0.011" (0.06 mm � 0.268 mm)

Thickness
0.011" (0.268 mm)

Outer Diameter
10.43" (265 mm)

Inner Diameter
1.5", 3" or 4" (38 mm, 76 mm or 102 mm)

Ribbon Width
1.56" - 5.04" (39.5 mm - 128 mm)

Ribbon Length
Up to 1476' (450 m)

MEMORY

Flash ROM
6MB (Main Memory: 4MB; Font: 2MB); increase via optional extended memory cartridge

Interface Buffer
2.95MB

FONT / SYMBOLOGIES

Fonts Internal
U, S, M, WB, XU, XM, XB, XL, OUTLINE, OCR-A, OCR-B

TrueType Fonts
CG Times, CGTriumvirate, Futura, CG Palacio, CG Century Schoolbook, CG Triumvirate Condensed, CG Univers

Barcode Symbologies
Linear: UPC-A/E, UCC/EAN128, Interleaved 2 of 5, CODE 39, CODE 128, EAN-8/13, CODE 93, RSS-14, POSTNET, NW-7, Matrix 2 of 5, MSI, Bookland
2-Dimensional: Data Matrix, PDF417, Maxicode, Micro PDF417, Composite Symbology, QR Code, VeriCode

INTERFACE CHARACTERISTICS

Processor
32-bit RISC

Interface Options
Wireless Ethernet (802.11b), LAN (10BASE-T/100BASE-TX Auto-Switching), Centronics Parallel, USB 1.1, RS232C, miniLAN (POP3, SMTP, HTTP), IEEE1284 (ECP Compatible), RS422/485

OPERATING CHARACTERISTICS

Power Requirements
AC100/240V [Maximum: 200VA/200W (Standby: 62VA/89W)]

Environment Operating
32� F � 104� F (0� C � 40� C), 30%-80% RH, non-condensing
Storage 23� F � 140� F (-5� C � 60� C), 30%-90% RH, non-condensing

Regulatory Approvals
FCC Class A, U/L, CSA, CE, T�V, CCC

Dimension
10.7" x 17.9" x 12" (271 mm x 455 mm x 305 mm)
33.0 lbs. (15.0 kg)

OPTIONAL ACCESSORIES

Label Cutter, Label Dispenser, Label Rewinder, Memory Expansion, PCMCIA Add-On Memory

OPERATIONAL FEATURES

Firmware Features
Hex Dump, Print Custom Character Design, Sequential Numbering (incl. Barcodes), Form Storage and Recall (for faster data retrieval of complex formats), SEMBL (BASIC) Interpreter

Self Diagnosis Tools
Head Check, Paper End Detection, Ribbon Near-End/End Detection (remaining 49' - 98' detection), Open Cutter-Cover Detection, Auto Sensing for Continuous Forms, Memory Card Error Detection, Test Print
