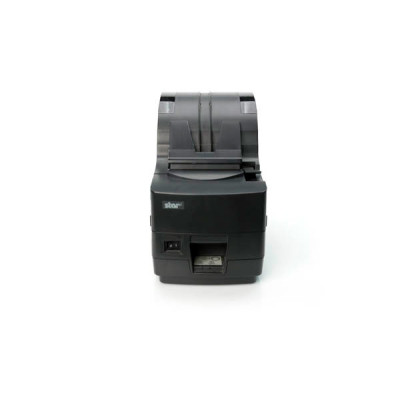

Star TSP1000 Printers

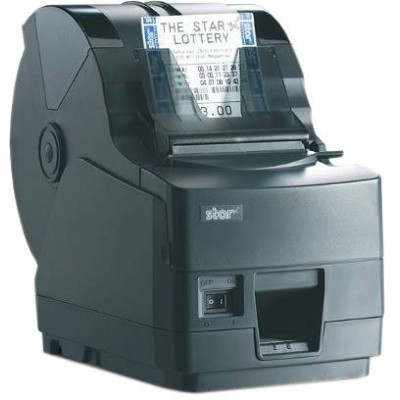

7" Roll Capacity with Integrated Ticket Stacker
The Star TSP1000 supports up to a 7" diameter paper roll that is perfect for high-volume applications. The integrated ticket/document stacker aids in sorting multiple tickets/documents where batch printing is required. The TSP1000 also has a 203 dpi resolution, a 7" per second print speed and support for 2D barcodes.
|
|
| Part # |
Description |
Price |
Order |
| 39462100 |
TSP1043, Direct thermal, 80mm, 203 dpi, Parallel Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 39462110 |
TSP1043, Direct thermal, 80mm, 203 dpi, Parallel Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 39462000 |
TSP1043, Direct thermal, 80mm, 203 dpi, Serial Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 39462010 |
TSP1043, Direct thermal, 80mm, 203 dpi, Serial Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 37998870 |
TSP1043, Direct thermal, 80mm, 203 dpi, Ethernet Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$698.40
Stock level: 2 |
|
| 37998880 |
TSP1043, Direct thermal, 80mm, 203 dpi, Ethernet Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$698.40
Stock level: 3 |
|
| 39462400 |
TSP1043, Direct thermal, 80mm, 203 dpi, USB Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$504.20
Stock level: 3 |
|
| 39462410 |
TSP1043, Direct thermal, 80mm, 203 dpi, USB Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$504.20
Stock level: 13 |
|
| 39460000 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Parallel Interface, large roll capacity, slip stacker. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 39460010 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Parallel Interface, large roll capacity, slip stacker. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
More Configurations
| Part # |
Description |
Price |
Order |
| 39460100 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Serial, large roll capacity, slip stacker. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 4 |
|
| 39460110 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Serial, large roll capacity, slip stacker. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$490.90
Stock level: 3 |
|
| 37998890 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Ethernet, large roll capacity, slip stacker. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$698.40
Stock level: 3 |
|
| 37998900 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, Ethernet, large roll capacity, slip stacker. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$698.40
Stock level: 3 |
|
| 39460200 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, USB, large roll capacity, slip stacker. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$504.20
Stock level: 3 |
|
| 39460211 |
TSP1045, Direct thermal, 82.5mm, 203 dpi, USB, large roll capacity, slip stacker. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
$504.20
Stock level: 6 |
|
| TSP1043C-24 |
This part is replaced by 39462100.
TSP1043, Direct thermal, 80mm, 203 dpi, Parallel Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043C-24GRY |
This part is replaced by 39462110.
TSP1043, Direct thermal, 80mm, 203 dpi, Parallel Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043D-24 |
This part is replaced by 39462000.
TSP1043, Direct thermal, 80mm, 203 dpi, Serial Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043D-24GRY |
This part is replaced by 39462010.
TSP1043, Direct thermal, 80mm, 203 dpi, Serial Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043E-24 |
This part is replaced by 37998870.
TSP1043, Direct thermal, 80mm, 203 dpi, Ethernet Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043E-24GRY |
This part is replaced by 37998880.
TSP1043, Direct thermal, 80mm, 203 dpi, Ethernet Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043U-24 |
This part is replaced by 39462400.
TSP1043, Direct thermal, 80mm, 203 dpi, USB Interface. Color: Putty. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043U-24GRY |
This part is replaced by 39462410.
TSP1043, Direct thermal, 80mm, 203 dpi, USB Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1043L-24GRY |
TSP1043, Thermal Receipt, 203 dpi, 180 mm/s print speed, 80 mm print width, Tear Bar, Ethernet interface, Color: Gray
|
Call for Details |
| TSP1045C-24-GRY |
This part is replaced by 39460010.
TSP1045, Direct thermal, 82.5mm, 203 dpi, Parallel Interface. Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
| TSP1045U-24-GRY |
This part is replaced by 39460211.
TSP1045, Direct thermal, 82.5mm, 203 dpi, USB Interface, Color: Gray. Order interface cable and power supply (Part# 30781572) separately. See accessories.
|
Call for Details |
Star TSP1000 Details
| SPECIFICATIONS |
| Printer Method |
Direct Linear Thermal |
| Print Speed |
180 mm/sec or 56.7 lps (8 lines per inch) |
| Character Matrix |
12 x 24 dots, 9 x 24 dots |
| Print Resolution |
203 dpi (8 dots per mm) |
| Two Colour Print Capability |
Red & Black / Blue & Black (special paper
required) |
No. of Columns
|
48 / 64 or 53 / 71 (depends on Paper Width) incl. 1st
column print for lottery applications |
| Character Set |
ANK 95, 32 Int 128 Graphic |
| International Code Pages |
Star Mode=40. ESC/POS™= 6
1 blank allowing an additional character page to be added |
| Bar Codes |
9 versions / PDF 417, Maxicode Option (Pending) |
| Line Spacing |
3 mm or 4 mm or programmable to 1/8mm |
| Line Speed |
180 mm/sec |
Paper Specifications
Width
Thickness / Weight
Roll Diameter
Easy-Load
Paper End and Near End Sensor |
44 - 82.5mm (variable).
0.08 ~ 0.15 mm / 80 ~ 150 gsm
180 mm
"Drop-In & Print"
Standard |
Maximum Print Width
Top Margin |
82.5 mm paper = 80 mm
Left / Right margin 0mm, 1st column print
11 mm minimum default
|
| |
|
| Autocutter (guillotine) |
Full cut
Position - approx. |
| Logo Store |
Star Line Mode & ESC/POS™ mode - 440K
Star Page Mode - 248K |
| Flash ROM |
2 x 8Mbit Flash Rom's |
| Drivers available |
High Speed Scalable Raster Graphics Driver
Windows 95/98/ME, NT 4.0, Win 2000, Windows XP, OPOS, JAVA-POS
Linux CUPS Support, Apple MAC (contact Star) |
| Interface |
Serial, Parallel or USB as standard.
Ethernet & WiFI options (contact Star for details) |
| Emulation |
Star Line Mode & Page Mode & ESC/POS |
| Peripheral Drive Circuit |
2 circuits, (24V max. 1A)
No Compulsion input |
| Power Consumption |
Operating / Waiting - Average 1.5 / 0.3A |
| Operating Conditions |
Temperature: 5°C to 45°C
Humidity: 10% - 90% RH (without condensation) |
| Storage Conditions |
Temperature: 5°C to 45°C
Humidity: 10% - 90% RH |
| Dimensions / Weight |
161W x 306.5D x 249H mm / 3.1 Kg |
| Safety Standards |
UL, C-UL, TüV, FCC, VCCI, EN55022, CE |
Reliability
Autocutter |
60 million lines (CRT MCBF)
20 million lines (Traditional)
1 million cuts MCBF
(0.065 - 0.1 mm paper) |
| Options |
Ethernet Interface
WiFI (contact Star for details) |
The Star TSP1000 is also known as the Star TSP 1000 Series.
|
