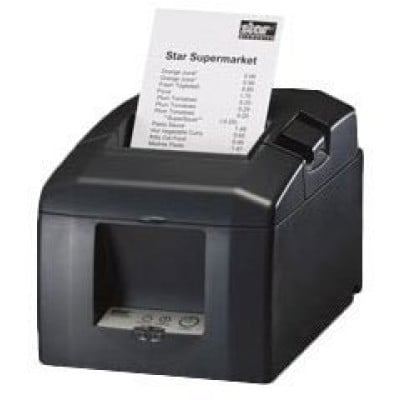

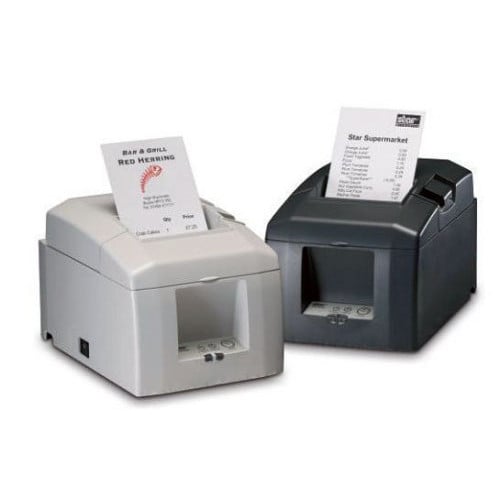

Star TSP651 Printers
Create eye-catching receipts
The Star TSP651 boasts valuable features like a tear bar, low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP651 can easily be configured in Star Line or ESC/POS emulation mode and features a wide variety of interface options including USB and Ethernet due to its plug-in modules. New vertical mount stand and splash proof cover options help make it one of the most reliable POS printers in the world.
|
|
| Part # |
Description |
Price |
Order |
|
39448210 |
TSP651, Thermal printing, two color, Tear bar, Parallel interface. Power supply (Part# 30781750) not included, order separately. Color: Dark gray. Formerly sold as TSP651C-24 GRY. |
$173.80
Stock level: 118 |
|
|
39448200 |
TSP651, Thermal printing, two color, Tear bar, Parallel interface. Power supply (Part# 30781750) not included, order separately. Color: Putty. Formerly sold as TSP651C-24. |
$173.80
Stock level: 30 |
|
|
39448410 |
TSP651, Thermal printing, two color, Tear bar, Serial interface. Power supply (Part# 30781750) not included, order separately. Color: Dark gray. Formerly sold as TSP651D-24 GRY. |
$173.80
Stock level: 14 |
|
|
39448400 |
TSP651, Thermal printing, two color, Tear bar, Serial interface. Power supply (Part# 30781750) not included, order separately. Color: Putty. Formerly sold as TSP651D-24. |
$173.80
Stock level: 30 |
|
|
37999600 |
TSP651, Thermal printing, two color, Tear bar, USB interface. Power supply (Part# 30781750) not included, order separately. Color: Dark gray. Formerly sold as TSP651U-24 GRY. |
$229.20
Stock level: 104 |
|
|
37999590 |
TSP651, Thermal printing, two color, Tear bar, USB interface. Power supply (Part# 30781750) not included, order separately. Color: Putty. Formerly sold as TSP651U-24. |
$229.20
Stock level: 13 |
|
|
37999500 |
TSP651, Thermal printing, two color, Tear bar, Ethernet interface. Power supply (Part# 30781750) not included, order separately. Color: Dark gray. Formerly sold as TSP651L-24 GRY. |
$321.90
Stock level: 3 |
|
|
37999490 |
TSP651, Thermal printing, two color, Tear bar, Ethernet interface. Power supply (Part# 30781750) not included, order separately. Color: Putty. Formerly sold as TSP651L-24. |
$321.90
Stock level: 3 |
|
Star TSP651 Details
|
SPECIFICATIONS – TSP650
|
|
Printer Method
|
Direct Line Thermal
|
|
Print Speed
|
30 Receipts Per Minute (150 mm/sec)
|
|
Printer Case Color
|
Putty or Gray
|
|
Models Available
|
Tear Bar or Auto Cutter
|
|
Print Resolution
|
203 dpi
|
|
Two Color Print Capability
|
Red & Black / Blue & Black / Green & Black (Two color thermal paper required)
|
|
No. of Columns
|
48 / 64
|
|
Font Size
|
9 x 24
|
|
Character Set
|
ANK 95, 32 Int 128 Graphic
|
|
International Code Pages
|
Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
|
|
Barcodes
|
9 versions / PDF 417 Option
|
|
Line Spacing
|
3 mm or 4 mm or programmable
|
|
Paper Specifications
Width
Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width
|
80mm standard, Adjustable 58mm with paper guide
0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm
|
|
Top Margin
|
13 mm minimum default (3mm selectable via Memory Switch Utility)
|
|
Auto Cutter
|
Guillotine (Partial Cut Only)
|
|
Cover Open Sensor
|
Yes
|
|
Logo Store Capacity
|
2 Mbit Flash ROM with Graphic Management Software
|
|
Flash ROM
|
16 Mbit
|
|
Multiple Copy Support
|
N/A
|
|
Journal Capability
|
N/A
|
|
Label Support
|
N/A
|
|
Power Supply
|
External; Requires PS60A External Power Supply
|
|
Drivers Available
|
Windows™ 2000/XP/Vista™, WinCE, WePOS, Windows 2003 Server, OPOS™, JAVA POS™, Linux CUPS Support™ , MAC OSX™, POS.Net, USB Vendor Class, Windows 98/ME/NT4 (download only)
|
|
WHQL
|
N/A
|
|
Swappable Interfaces
|
Yes
|
|
Connectivity
|
Serial, Parallel, USB, or Ethernet
|
|
Emulation Modes
|
Star Mode, ESC/POS™
|
|
Peripheral Drive Circuit
|
2 circuits, (24V max. 1A), 1 Compulsion input
|
|
Power Consumption
|
Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply
|
|
Operating Conditions
|
Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
|
|
Storage Conditions
|
Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH
|
|
Dimensions
Weight:
Auto Cutter Model
Tear Bar Model
|
142mm(W) x 202(D) x 132(H) mm
TSP654 – 1.72 kg
TSP651 – 1.56 kg
|
|
Safety Standards
|
UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost
|
|
Reliability MCBF
Print Head
Auto Cutter
|
60 Million Lines
100km
1 Million Cuts
|
|
Included with Printer
|
Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll
|
|
Warranty
|
3 Year Limited Manufacturer Warranty (US and Canada)
|
|
Options
|
External Power Supply (PS60A)
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)
|
