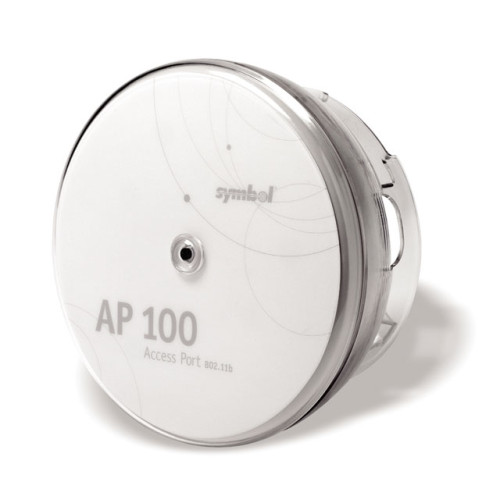

Symbol AP 100 Access Points
This product has been discontinued. It is replaced by the
Symbol AP 300.
More Function at a Lower Price than Access Points
The Symbol AP 100 is much leaner and only a fraction of the cost of first generation WLAN access points due to the centralized architecture of the Symbol Wireless Switch System. The AP 100 connects to a centralized processing and switching engine that resides in the Wireless Switch via standard 100BaseT cabling - just as the access point connects to an Ethernet hub or switch. But unlike the access point, features, functionality, security and management are all centralized in the Wireless Switch, effectively allowing the Symbol AP 100 to become a zero configuration device.
|
|
| Part # |
Description |
Price |
Order |
| WS-2000-1C-WW |
WS 2000, Bundle: WS 2000 Switch and AP 100 Access Port (The US Power cord is only included in the 1 Cell Package.).
|
$860.50
Stock level: 5 |
|
| CCRF-5020-10-WW |
This part is replaced by WSAP-5110-050-WWR.
AP 100, Access Port (11Mbps IEEE 802.11b Version. WLAN endpoint for the Mobius Axon Wireless Switch. Includes WLAN Radio and Integrated High-Performance Antenna. Includes H/W for Desk, Wall and Ceiling-Mount Configurations).
|
Call for Details |
| CCRF-5020-00-WW |
This part is replaced by WSAP-5100-050-WWR.
AP 100, Access Port, 802.11b with External Antenna Connectors - Requires 2.4 GHz Antennas, not included.
|
Call for Details |
Symbol AP 100 Details
|
Feature |
Benefit |
|
Tight integration with the WS 5000 and WS2000 Wireless Switch, which centralizes intelligence to the Access Ports |
Enables easy addition of features and functionality; ability to expand the wireless LAN without disrupting wireless service |
|
Compact, aesthetic design with flexible mounting options |
Enables mounting on a desk, on a wall and on the ceiling—above or below ceiling tiles |
|
Plenum rated housing |
Meets fire retardant standards to ensure safe installation in ceilings and other enclosed areas throughout your enterprise |
|
Tamper-proof hardware and software design |
Prevents theft of network configuration parameters, without sacrificing flexibility of mounting, even in unsecured areas |
|
Standards-based 802.3af Power-over-Ethernet compatibility |
Significantly
reduces installation cost and complexity by eliminating the requirement
to extend AC or DC power to the Access Port |
|
No configuration required |
True plug-and-play right out of the box |
|
Internal
and external high power antennas; Integrated 3.5 dBi omni-directional
cross polarized diversity antenna or external antenna connectors and
suite of 16 antennae |
Reduces
cost and time of installation; provides the flexibility to modify
wireless coverage patterns and increase wireless range as needed in
challenging environments |
|
Visible status LED color-coded to IEEE specification. Blue for 802.11b, Amber for 802.11a |
Easy viewing of Access Port status — even when mounted above the ceiling tiles |
|
No local firmware to manage (provided by the WS 5000 or WS 2000 Wireless Switch) |
Eliminates the cumbersome, time consuming and error prone process of loading traditional access point firmware |
|
Centralized wireless LAN packet processing offloaded to the Symbol's WS 5000 Wireless Switch |
Leaner product design, resulting in significant reduction in hardware and management costs; provides a scalable growth model |
|
Multi-BSS and Multi-ESS capability |
Ensures
highly efficient use of the wireless network by providing multiple
Broadcast/Multicast Domains and a true Virtual RF LAN experience |
|
Two built-in Ethernet ports
(in AP 200) |
Enables
connection or ‘daisy-chaining' of additional Access Ports; reduces cost
of extra cabling when upgrading an existing 802.11b Wireless LAN
infrastructure |
|
Antennas and Accessories
|
Omni-Directional Antennas
Omni-directional
antennas radiate coverage equally in all directions in a 360° coverage
pattern on a horizontal plane. The torus-shaped (doughnut-shaped)
coverage pattern is ideal for square or fairly square areas. |
|
|
802.11b |
802.11a |
- High Performance Fixed Point Dipole 3.5 dBi
- Indoor/Outdoor High Performance OD 5dBi
- Low Profile Ceiling/Surface Mount OD 3 dBi, 4' Coax
- Low Profile Dual Integrated Diversity OD 2dBi, 3' Coax
- PCI Wall and Desk Mount OD Diversity Antenna
|
- 5.2 GHz High-Performance Fixed Point Dipole
- 5.2 GHz High-Performance Omni-Directional
|
|
|
Directional Antennas
Directional
antennas concentrate transmission power in a specific direction,
resulting in coverage for a greater distance, but at a lesser angle.
The conical-shaped coverage pattern of the directional antenna is
similar to that of a flashlight—ideal for elongated areas, corners and
outdoor point-to-point applications. |
|
|
802.11b |
802.11a |
- Heavy-duty Indoor/Outdoor 65° H-Plane Directional Panel 7.5 dBi
- Indoor 65° H-Plane Diversity Directional Panel 7 dBi
- High Gain Indoor/Outdoor 60° H-Plane Directional Panel 12 dBi
- High gain Indoor/Outdoor 120° H-Plane Directional Panel 11 dBi
|
- 5.2 GHz High-Performance Flat Panel
|
|
|
Bridge Antennas
Bridge
antennas deliver effective long-distance transmission, ideal for
communications between two buildings or in a multi-building
campus-style environment. Bridge antennas are available in directional
and omni-directional, for point-to-point and point-to-multi-point
implementations. |
|
|
802.11b |
802.11a |
- Heavy-duty Outdoor 35° High-Gain Directional Yagi 15 dBi
- Heavy-duty Indoor/Outdoor 35° High-Gain Directional Panel 14.5 dBi
- Heavy Duty 10° Directional High Gain Parabolic Dish 24 dBi
- Heavy Duty, High Gain Outdoor Mast Mount OD & 8 dBi
|
|
|
|
Accessories
For
a complete installation, Symbol also offers a comprehensive selection
of accessories. Kit accessories and connectors provide the necessary
tools to customize antenna installation for your wireless LAN. |
|
|
802.11b |
802.11a |
- Articulating Ceiling Mount Kits
- Jumpers and Lightning Arrestor Kits
|
|
|
|
AP 100 (802.11b) |
AP 200 (802.11a/b) |
|
|
Dimensions: |
Without mounting hardware:
6.00 in. Diameter x 3.10 in. H/
15.24 cm Diameter x 7.87 cm H
With mounting hardware:
6.12 in. Diameter x 2.04 in. H/
15.54 cm Diameter x 5.18 cm H |
AP 200 802.11a/b external antenna connectors
AP 200 802.11a/b internal antennas
|
10 in. L x 6 in. W x 1.25 in. H
25.4 cm L x 15.24 cm W x 3.18 cm H
10 in. L x 7 in. W x 1.5 in. H
25.4 cm L x 17.78 cm W x 3.81 cm H |
|
Weight: |
13 oz. / .36 kg (Or 360 grams) |
AP 200 802.11a external antenna connectors
AP 200 802.11a/b external antenna connectors
AP 200 802.11a/b internal antennas |
1.7 lbs. / 0.77 kg
1.9 lbs. / 0.86 kg
2.2 lbs. / 1.00 kg
|
|
|
Available Mounting Configurations |
Ceiling-Mount (above and below tile); Wall-Mount; Desk-Mount |
Ceiling-Mount (above and below tile); Wall-Mount; Desk-Mount |
|
|
Plenum Rated Housing: |
Certified to UL 2043 - OK |
|
|
Status LED: |
Provides three different modes of visual status information |
2 LEDs with multiple modes indicating presence of 802.11a/802.11b, Power, Adoption and Errors |
|
|
Wireless Data Communications |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a) |
AP 200 (802.11b) |
|
|
Data Rates Supported: |
1, 2, 5.5 and 11 Mbps |
6, 9, 12, 18, 24, 36, 48 and 54 Mbps |
1, 2, 5.5 and 11 Mbps |
|
Network Standard: |
802.11b |
802.11a |
802.11b |
|
Wireless Medium: |
Direct Sequence Spread Spectrum (DSSS) |
Orthogonal Frequency Division Multiplexing (OFDM) |
Direct Sequence Spread Spectrum (DSSS) |
|
|
Uplink: |
Autosensing 10/100Base-T Ethernet |
Autosensing 10/100Base-T Ethernet |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a) |
AP 200 (802.11b) |
|
FCC: |
2.412 to 2.462 GHz |
5.150 to 5.250 (UNI -1);
5.250 to 5.350 (UNI -2)
5.725 to 5.825 (UNI -3)
5.725 to 5.850 (ISM) |
2.412 to 2.462 GHz |
|
EU: |
2.412 to 2.472 GHz |
5.150 to 5.250 GHz
5.150 to 5.350 GHz |
2.412 to 2.472 GHz |
| |
|
(Country Specific) |
|
|
Japan: |
2.412 to 2.484 GHz |
5.150 to 5250 GHz |
2.412 to 2.484 GHz |
|
Israel: |
2.418 to 2.457 GHz |
Not yet Approved |
Not yet Approved |
|
Mexico: |
2.450 to 2.4835 GHz |
Not yet Approved |
Not yet Approved |
|
Sri Lanka: |
2.400 to 2.430 GHz |
Not yet Approved |
Not yet Approved |
|
Operating Channels: |
ETSI: 13; Israel: 7; North America: 11; TELEC (Japan): 14; MII: 11 |
ETSI: 4; North America: TBA; TELEC (Japan): 4 |
ETSI: 13; Israel: 7; North America: 11; TELEC (Japan): 14; MII: 11 |
|
Available Transmit Power Settings: |
Max (65 mW, 100mW EIRP w int. ant.), 25 mW, 8 mW, 3 mW, 1 mW |
Max 75mW, 35mW, 8.5mW, 8mW, 4mW |
Max (75 mW), 45 mW, 16 mW, 8.5 mW, 2.9mW |
|
Nominal Transmitter Power: |
17 dBm +/- 1.5 dBm |
17.5 dBm +/- 1.0 dBm at 6 Mbps to 18 Mbps
15.5dBm +/- 1.0 dBm
at 24 and 36 Mbps
14.5 dBm +- 1.0dBm
at 48 Mbps
13.5 dBm +/- 1.0 dBm at 54 MBPS |
18.2 dBm +/- 1 dBm |
|
Receiver Sensitivity: |
11 Mbps @ -84dBm
5.5 Mbps @ -87dBm
2 Mbps @ -88dBm
1 Mbps @ -90dBm |
54 Mbps @-73 dBm
48 Mbps @ -77 dBm
36 Mbps @ -80 dBm
24 Mbps @-82 dBm
18 Mbps @ -84 dBm
12 Mbps @-86 dBm
9 Mbps @ -88 dBm
6 Mbps @-89 dBm |
-85 dBm @ 11 Mbps
-89 dBm @ 5.5 Mbps
-90 dBm @ 2 Mbps
-92 dBm @ 1 Mbps |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a/b) |
|
Operating Temperature: |
-4°F to -131°F / -20°C to 55°C |
-4°F to 131°F / -20°C to 55°C |
|
Storage Temperature: |
0°F to 167°F / -40°C to 75°C |
0°F to 167°F / -40°C to 75°C |
|
Operating Humidity: |
5%-95% (non-condensing) |
5%-85% (non-condensing) |
|
Operating Altitude: |
2.4 kM (Max) |
8000 ft. @ 82°F / 28°C |
|
Storage Altitude: |
4.6 kM (Max) |
15000 ft. @ 53°F / 12°C |
|
Electrostatic Discharge: |
+/- 15 kV (Air) |
+/- 15 kV (Air) |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a/b) |
|
Operating Voltage: |
48 VDC @ 4W (Typical), 36 VDC to 57 VDC (Range) |
48VDC @ 10W (Typical), 36VDC to 57VD |
|
Operating Current: |
10 mA to 150 mA |
190mA @ 48VDC |
|
Integrated Power Over Ethernet Support: |
Standards-based IEEE 802.3af (Class 0 Power), Cisco Proprietary, and Symbol Proprietary |
Standards-based IEEE 802.3af (Class 0 Power) and Symbol Proprietary |
|
|
Integrated Antenna Specifications |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a) |
AP 200 (802.11b) |
|
Type: |
Cross Polarized, Omni-Directional Diversity Antenna |
Diversity Antenna for transmit diversity. Omni-directional variation:
-3 dB 200°/200°
-6 dB 315°/315° |
Diversity Antenna.
Omni-directional variation:
-3 dB 200°/200°
-6 dB 315°/315° |
|
Band: |
2.4GHz to 2.5GHz |
Capable of operation from 5.17GHz to 5.805 GHz. Actual operating frequencies depend on regulatory rules and certification agency |
2.4 GHz to 2.5 GHz |
|
VSWR: |
Less than 1.5 |
Less than 2.0 |
Less than 1.5 |
|
Gain: |
3.5 dBi |
2.5 dBi |
2.5 dBi |
|
Beam Width: |
E-Plane-120° avg |
E-Plane 150°/70° |
E-Plane 150°/70° |
| |
H-Plane-95° avg |
H-plane 85°/70° |
H-Plane 85°/70° |
|
Diversity: |
Two (2) feeds with polarization: Dual Linear (90 orthogonal) and Spatial Separation (_=0.4 at 2450MHz) |
Two (2) feeds with polarization:
Dual Linear (90) and spatial Separation at C_ >1.0 at @ 5500 mHz. |
Two (2) feeds with polarization:
Dual (90°) and spatial Separation at C_>1.0 at 2450 mHz. |
|
| |
AP 100 (802.11b) |
AP 200 (802.11a) |
AP 200 (802.11b) |
|
|
Product Safety Certifications: |
cUL 1950, CSA, UL 2043, VDE-GS |
|
|
Radio Approvals: |
World-Wide including FCC, Industry Canada, CE, TELEC, C-Tick |
FCC, Industry Canada, CE, TELEC, C-Tick, Hong Kong, Singapore |
FCC, Industry Canada, CE, TELEC, C-Tick, Hong Kong, Singapore |
|
The Symbol AP 100 is also known as the Symbol AP100.
|
