All Barcode Discount > Barcode Scanners > Symbol Scanners > Symbol DS 3478

Symbol DS 3478 Scanners

Ability to Read 1D and 2D Barcodes, plus Direct Part Marks

The Symbol DS 3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS 3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning, available on all models, lets operators quickly capture symbols from any angle.

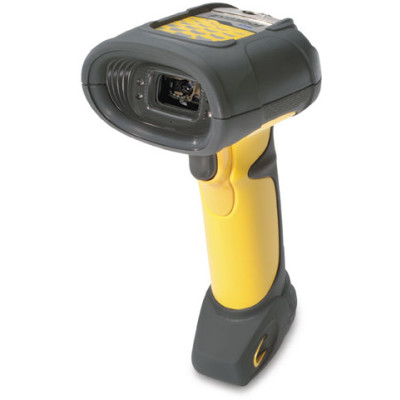

Photo of Symbol DS 3478
Symbol logo
Information:  Specifications | Symbol's DS 3478 page | Cable example images | Ask a question | Request a quote |
Accessories:  Accessories/Options | Symbol DS 3478 Service Contract |
Part # Description Price Order
DS3478-SF20005WR DS 3478, Imager only with Smart Focus. Color: Yellowith Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories. RoHS. $607.20
Stock level: 400+
DS3478-SF20145WR DS 3478, Digital Scanner: Imager Cordless, Lucent Only $607.20
Stock level: 4
DS3478-HD20005WR DS 3478, Bluetooth for Digital Scanner, Yellow color $743.70
Stock level: 18
DS3478-SF20005WW This part is replaced by DS3478-SF20005WR.
DS 3478, Imager only with Smart Focus. Color: Yellowith Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories 		Call for Details
DS3478-HD20012WW This part is replaced by DS3478-DP20005WR.
DS 3478, Scanner ( DPM digital), cordless, proprietary. Color: Twilight Black/Yellow 		Call for Details
DS3478-DP20005WR DS 3478, Digital Scanner, DPM Digital and DPM Cordless . Color: Twilight Black/Yellow Call for Details

Symbol DS 3478 Details

PHYSICAL CHARACTERISTICS

Color Twilight black, Yellow
Cordless Yes
Dimensions 7.34 x 4.82 x 2.93 in. (18.65 x 12.25 x 7.43 cm) H x W X D
Handheld Yes
Weight 14.6 oz. (414 g)
PERFORMANCE CHARACTERISTICS

Decode capability 1D/PDF417, See data sheet for full list of supported symbologies, 2D, DPM
Depth of field 1 in. to 14 in. (2.5 cm to 35 cm) on 13 mil (100% UPC/EAN)
Interfaces supported IBM, Keyboard wedge, RS-232, Synapse, USB, Wand
Pitch +/- 60 degrees from normal
Roll (Tilt) +/- 50 degrees from normal
Scan pattern Omni-directional
Skew (Yaw) +/- 180 degrees from normal
Technology Imager

IMAGING CHARACTERISTICS

Image resolution (pixels) 640 x 480
RADIO SPECIFICATIONS

Radio type Bluetooth
REGULATORY SPECIFICATIONS

EMC EN 301 489-1, EN 301 489-17, IEC 60601-1-2, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental RoHS Directive 2002/95/EEC
Laser Safety EN 60825-1, IEC 60825-1, 21CFR1040.10
RF Exposure EN 50360, EN 50361, FCC Part 2, OET Bulletin 65, RSS102
Radio EN 300 328
USER ENVIRONMENT

Ambient light immunity Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.Outdoor: 10,000 foot-candles/107,600 Lux
Drop specifications Unit functions normally after repeated 6.5 ft. (2 m) drops to concrete
Environmental sealing IP65
Operating temperature 32° to 122°F (-0° to 50°C)
Storage temperature -40° to 140°F (-40° to 60°C)
WARRANTY

Scanner warranty 3 years (36 months) from date of shipment. See full warranty for details.

The Symbol DS 3478 is also known as the Symbol DS3478.
