A Versatile, Powerful, Rugged Device with RFID Capability
The Symbol MC9060 RFID combines RFID, barcode reading, imaging, 802.11 connectivity, a full 1/4 VGA screen and alphanumeric keypad to give you the flexibility to give your organization real-time access to mission-critical information from key points in your supply chain. Enterprise-wide management and control of the MC9060 RFID is easy with Symbol's Mobility Services Platform (MSP).
This part is replaced by MC9090-GK0HJEFR6US. MC9060-G RFID, RFID, Imager, Monochrome Display, 64MB, 53 key Alpha-Numeric Keypad, 802.11b, PocketPC OS. Order cradle, cable, & power supply separately. See accessories.
This part is replaced by MC9090-GK0HJEFR6US. MC9060-G RFID, RFID, Imager, Color Display, 64MB, 53 key Alpha-Numeric Keypad, 802.11b, PocketPC OS. Order cradle, cable, & power supply separately. See accessories.
This part is replaced by MC906R-GH0JBEBR5US. MC9060-G RFID, RFID, SE824, Monochrome Display, 64MB, Windows CE .NET, Lithium-Ion battery. Order cradle, cable, & power supply separately. See accessories.
This part is replaced by MC906R-GK0HBEER5US. MC9060-G RFID, RFID, Color Display, 64M, 53 key Alpha-Numeric, Audio. Order cradle, cable, & power supply separately. See accessories.
This part is replaced by MC906R-GK0JBEER5US. MC9060-G RFID, RFID, Monochrome Display, 64M, 53 key Alpha-Numeric, Audio. Order cradle, cable, & power supply separately. See accessories.
Call for Details

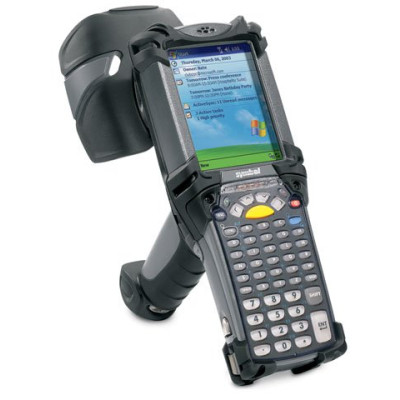

Symbol MC9060 RFID Details
The MC9060 RFID from Symbol Technologies is a ruggedized mobile computer that features integrated support for the most popular radio frequency identification standard - EPC™, the Electronic Product Code. By integrating support for either EPC Class 1 or Class 0 RFID reading and programming with a robust commercial mobile computer, the MC9060 RFID is able to offer an unparalleled level of functionality suitable for a broad range of RFID applications. Combining RFID, bar code reading, imaging, 802.11 connectivity, a full 1/4 VGA screen and alphanumeric keypad, the MC9060 RFID with RFID has the flexibility to give your organization real-time access to mission-critical information from key points in your supply chain. Enterprise-wide management and control of the MC9060 RFID is easy with Symbol's Mobility Services Platform (MSP).
Many of the world's largest retailers, manufacturers and logistics organizations are integrating RFID as part of their supply chain processes, and RFID is rapidly emerging as a key technology across a wide range of markets and applications. With a feature set that delivers superior data collection, communication and collaboration, the MC9060 RFID with RFID facilitates faster decision-making and increased productivity in a variety of environments - from the factory to the warehouse to the sales floor.
Mobile Solutions Add Value to RFID
Traditional supply chain applications of RFID rely on automatic reading of tagged items using fixed readers installed at dock doors, mechanized conveyors, depalletization stations and other "choke" points in the movement of goods. However, when integrated with a mobile solution, RFID technology expands and improves the general functionality and performance of your entire mobile application.
Features
Benefits
Available in EPC Class 1 read/write or EPC Class 0 read/write models
Allows easy integration of RFID as part of your supply chain processes
Extremely rugged design withstands multiple 6 ft./1.8 m drops to concrete; 2,000 3.3 ft./1 m tumbles (4,000 hits)
Ensures less down time due to accidental drops
Dual mode: integrated barcode scanning and RFID
Maximum flexibility for enterprise applications
IP64 sealing rating (electronic enclosure)
Protects against water and dust to ensure reliable performance in rough conditions
Microsoft Windows CE .NET (Class 1 model only), Windows Mobile 2003 operating system (both models)
Gives versatility through familiar interfaces with wide software application support
Intel XScale™ PXA255 processor at 400 MHz
Delivers high-speed CPU performance for robust enterprise applications, including multimedia
3.8" large, bright, color display with backlit keypad
Allows easy viewing in many environments, such as ambient light
Wireless LAN communications
Enables real-time data exchange for maximum productivity
Forward scanning, pistol grip ergonomics
Reduces user fatigue in scan-intensive applications
Directional antenna (70-degree forward-looking)
Enables you to isolate the RFID tags you are interested in
API (Application Programming Interface) for Microsoft Windows CE .NET (Class 1 model only), Windows Mobile 2003 (both models)
Use familiar tools to build RFID enabled applications
MC9060 RFID with RFID: Market, Applications and Users
How Do Mobile Solutions Add Value to RFID Technology?
Challenge
Mobile Solution Value
Exception Processing
Allows misreads and other problem shipments to be investigated away from the dock without impeding flow
Remote Location Support
Provides a means of utilizing RFID information for receiving - even in the middle of a desert
Quick Start
No installation and low total solution cost allows a "quick start" with RFID
In Site Processing
Goods stored away from fixed readers - e.g. in storage racks - can still be processed using RFID tag information
Mixed Bar Code and RFID
Lets workers switch quickly between RFID-tagged items and items marked with a bar code
MC9060 RFID with RFID Specification Highlights
Physical and Environmental Characteristics
Dimensions:
10.75 in. L x 4.7 in. W x 7.7 in. H 27.3 cm L x 11.9 cm W x 19.5 cm H
Weight:
35.4 oz./1 kg (includes battery, scanner and radio)
Keyboard:
53-key
Display:
Embedded CE models (Class 1 only): 3.8 in. 1/4 VGA Mono Windows Mobile models (Class 1 and Class 0): 3.8 in. 1/4 VGA Mono or Color
Power:
Removable, rechargeable 7.4 volt 2200 mAh Li Ion battery pack (2200mAh, 7.4V)
Performance Characteristics
CPU:
XScale PXA255 processor at 400 MHz
Operating System:
XScale PXA255 processor at 400 MHzMicrosoft Windows Embedded CE. NET (Class 1 model only) or Windows Mobile 2003 (Both Class 0 and Class 1 models)
Memory:
64/64MB
Application Development:
SDK available through Symbol Developer Zone Web site
Bar Code Options:
Class 1 model: 1D scan engine, omnidirectional 1D and 2D imaging engine Class 0 model: Omnidirectional 1D and 2D imaging engine
User Environment
Operating Temperature:
Monochrome/Color: -4° to 122° F/-20° to 50°C
Storage Temperature:
-25° to 160° F/-40° to 70° C
Humidity:
5% to 95% non condensing
Drop Spec:
Multiple drops to concrete: 6 ft/1.8 m: 14° C to 122° F/-10° C to 50° C 5 ft/1.5 m: -13° C to 14° F/-25° C to -10° C
Tumble:
2,000 3.3 ft./1 m tumbles at room temperature (4,000 hits)
Environmental Sealing:
IP64 (electronic enclosure)
ESD:
+/-15kVdc air discharge +/-8kVdc direct discharge +/-8kVdc indirect discharge
RFID
Standards supported:
EPC Class 1 read/write model or EPC Class 0 read/write model
Nominal read range*:
0.2 ft. to 10 ft./6.09 cm to 304.8 cm
Nominal write range*:
1 ft. to 2 ft./30.5 cm to 60.9 cm
Field:
70-degree cone (approx.) measured from nose of device
Antenna:
External, linearly polarized
Frequency Range:
902-928 MHz
Output Power:
1W (4W EIRP)
Wireless Data Communications
WLAN:
802.11b
Output Power:
100 mW
Data Rate:
802.11b: 11 MB per second
Antenna:
Internal
Frequency Range:
Country-dependent; typically 2.4 to 2.5 GHz
Peripherals and Accessories
Cradles:
Single-slot and 4-slot cradles available
Printers:
Supports extensive line of Symbol-approved printers, cables and accessories
Charger:
4-Slot universal battery charger
Other Accessories:
Cable adapter module; snap-on magnetic stripe reader and modem; holster
Regulatory
General:
Suitable for sale in the United States and Canada only
Electrical Safety:
Certified to UL60950, CSA C22.2 No. 60950
EMI/RFI Radio Versions:
North America: FCC Part 2 (SAR), FCC Part 15 RSS210 Class B (Class 1 model only)
Laser Safety:
IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
*Actual read/write range is dependent upon a number of factors, including the specific tag used, nature of the items tagged, and presence or absence of radio interference.
