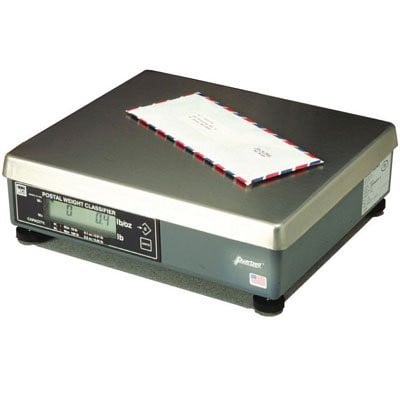

Weigh-Tronix 7620 Scales
Switch between standard and metric measurements with ease
The 7620 uses Quartzell technology to speed performance. The 7620 is NTEP-approved and ideal for Federal Express and UPS shippers, plus USPS first-class and worldwide mailing as well.
|
|
| Part # |
Description |
Price |
Order |
| 9503-15624 |
7620, 70lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
|
$601.30
Stock level: 3 |
|
| 9503-15625 |
7620, 100lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
|
$601.30
Stock level: 3 |
|
| 9503-16568 |
7620, 150lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
|
$601.30
Stock level: 3 |
|
| 9503-16638 |

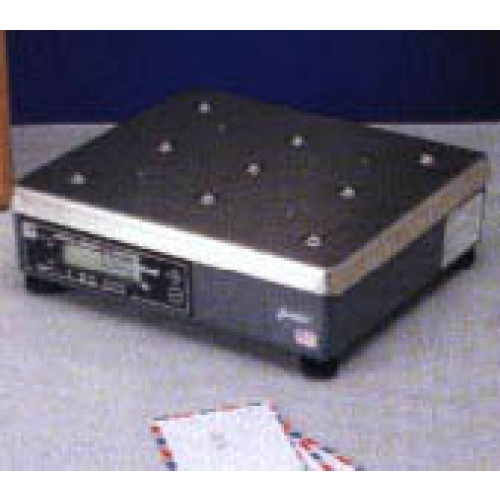

7620, 100lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale, with ball-top. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
|
Call for Details |
| 9503-17111 |
7620, 150lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale, with ball-top. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
|
Call for Details |
Weigh-Tronix 7620 Details
| Features & Benefits: |
|
- Accurate and reliable - Quartzell® transducers provide the highest repeatability for consistent weight measurement.
- Fast Digital Response - The inherent digital signal allows the scale to weigh faster, improving throughput especially in weight ranges that are critical for flats and small parcels.
- Simple to Use – Reduces operator training time.
- Internal Display – 7 digit, 1/2" high (12.7 mm), LCD display.
- I/O Port – Allows for connection to a computer or a smart terminal.
- Compact Low Profile Base – Fits easily into any operation and provides convenient mobility.
- Construction – Stainless steel weigh platter. Painted die-cast aluminum base.
|
- Controls – ZERO: With AZT or push button to re-establish zero reference. UNITS: Allows unit switching.
- Die Cast Load Bridge – Reduces overall scale deflection.
- Calibration – Alternate span points can simplify field calibration by using less than full capacity weights.
- High Resolution Mode – Mail and parcels can now be weighed on a single NTEP certified scale, even sensitive international mail, with multi-range weighing.
- Units Switching – Switch between decimal pounds and pounds/ounces, decimal pounds and kilograms, or pounds/ounces and kilograms.
- RS-232 Cable – DB-9 pin female connector allows you to connect to a PC.
- Protocols – Standard NCI, emulates Detecto and Mettler-Toledo.
|
The Weigh-Tronix 7620 is also known as the Weigh-Tronix NCI 7620.
|
