Weigh-Tronix 7829 Scales

The weighing solution for any application requiring a durable bench scale

The 7829 gives precise weight data for both static and in-line shipping applications. The 7829 is a perfect product for applications needing durability in a bench scale.

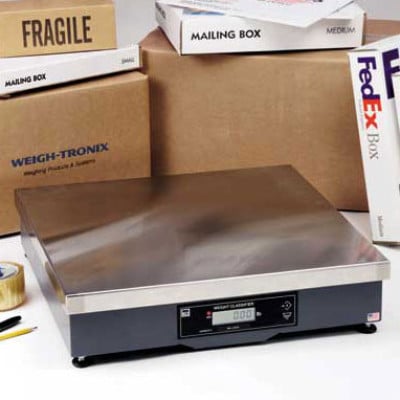

Photo of Weigh-Tronix 7829
Weigh-Tronix logo
Information:  Specifications | Weigh-Tronix's 7829 page | Ask a question | Request a quote |
Accessories:  Accessories/Options |
Part # Description Price Order
9503-16279 7829, 250lb, 20" x 20" parcel shipping scale, with ball-top. Includes 10 foot RS-232 Cable (9 Pin to 9 Pin). $1224.00
Stock level: 3
9503-16278 7829, 250lb, 20" x 20" parcel shipping scale. Includes 10 foot RS-232 Cable (9 Pin to 9 Pin). Call for Details

Weigh-Tronix 7829 Details

Features & Benefits
  • Fast Digital Response – Speeds weight processing time.
  • Simple to Use – Reduces operator training time.
  • DuraBridge® Technology – Reduces overall scale deflection to less than 1/2" when a full load is applied.
  • Internal Display – Front mounted, 1/2" H, six-digit LCD display.
  • I/O Port – Allows for connection to a computer. RS-232, bidirectional, configurable 1200 – 19,200 baud. Transmits weight and scale status whenever "W" command is sent by remote device. High resolution "H" command accesses 10 times displayed resolution.
  • Construction – Stainless steel weigh platter. Painted mild steel base enclosure.
  • Controls – ZERO – With Auto Zero tracking for zeroing the scale. TEST – Runs a diagnostic program to assure scale is fully functional.
  • Power – Recessed power supply with standard wall plug.
  • Large 20" x 20" Weigh Platter – Easily accommodates oversize parcels.
  • RS-232 Cable – Allows you to connect to a PC.
Specifications Options

Capacity and Resolution: 250 lb x .05 lb or 100 kg x .02 kg Weight classifier or scale configurations available in setup.

Dimensions: 20" L x 20" W x 5.3" H (50.8 cm x 50.8 cm x 13.46 cm)

Shipping Weight: 54 lb / 24 kg (standard configuration) 73 lb / 32 kg (with ball-top)

Agency Approvals: NIST Handbook 44 Class III, commercial applications; NTEP #95-121, Canadian MOI approval # AM-5099

Operating Environment: 42°F to 104°F (5°C to 40°C), Class III Device 10% to 95% RH (non-condensing)

Power: 120 VAC (+10% -15%), 60 Hz, standard 3-wire ground.

Input/Output: RS-232, bidirectional, configurable 1200-19.2K baud. Transmits weight and scale status whenever ASCII "W" <CR> is sent by a remote device.
  • Ball-top Weigh Platter – Simplifies transport of all parcels. Ideal for conveyor lines. One piece lift-off design equipped with 25 balls.
  • Remote Display – 1/2" H, six-digit LCD display housed in a molded enclosure with a 7 ft. cable.
  • International Power Supply – 230 VAC, 50 Hz power supply. End of cable terminated with a universal conductor.

Shown with Ball-top Weigh Platter

The Weigh-Tronix 7829 is also known as the Weigh-Tronix NCI 7829.
