| Part # |
Description |
Price |
Order |
|
P310I-EM10U-ID0 |
This part is replaced by P330I-BM10A-ID0.
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces, HICO Magnetic Strip and Contact Smart Card encoder. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-E0000-ID0 |
This part is replaced by P330I-EM10A-ID0.
P310i, Direct to Card printing, Single-sided, USB/Parallel interfaces, Magnetic Strip and Contact Smart Card encoder. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-0M30U-ID0 |
This part is replaced by P330I-0M10A-ID0.
P310i, Direct to Card printing, Single-sided, USB/Parallel interfaces, Magnetic Strip encoder. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-0M20U-ID0 |
This part is replaced by P330I-0M10A-ID0.
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces, LOWCO Magnetic Strip encoder. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-0M10U-UD0 |
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces, HICO Magnetic Strip and Contact Smart Card encoder. Includes EURO power supply and Parallel cable. (Ribbons and cards sold separately)
|
Check Availability |
|
P310I-0M10U-ID0 |
This part is replaced by P330I-0M10A-ID0.
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces, HICO Magnetic Strip encoder. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-0000U-UD0 |
This part is replaced by P330I-0000A-ID0.
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces. Includes EURO power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |
|
P310I-0000U-ID0 |
This part is replaced by P330I-0000A-ID0.
P310 I, Direct to Card printing, Single-sided, USB/Parallel interfaces. Includes US power supply and Parallel cable. (Ribbons and cards sold separately)
|
See Replacement |

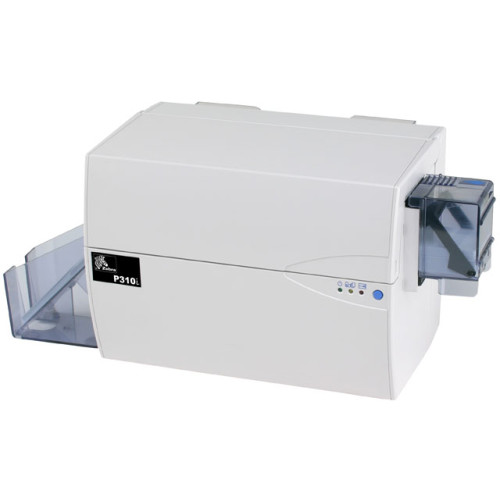

Zebra P310i Details
General
Specifications
- High speed printing
- 144 cards/hour
for color, single side (YMCKO)
- 900 cards/hour
for resin black (K)
- 2MB image memory
standard
- Windows™
98, ME, NT, 2000 AMD XP drivers
- One year printer
warranty
- One year (unlimited
passes) printhead warranty*
Color
Printing
- Color dye sublimation
or monochrome thermal transfer printing
- 25 seconds per
card full color single sided (YMCKO)
- 300 dpi (11.8 dots/mm)
print resolution
Bar
Codes
- Code 39, Code 128
B & C with & without check digit
- 2 of 5 & 2
of 5 Interleaved
- UPC-A, EAN 8 &
EAN 13
- PDF-417 2D bar
code and other symbologies can be printed via Windows drivers
Fonts
- True Type fonts
via Windows™ drivers.
Card
Specifications
- Types: PVC, Composite
- Card width/length:
ISO CR-80 - ISO 7810, 2.12" (54mm) X 3.385" (86mm)
- Magnetic Stripe
- ISO 7811
- Smart Card -
ISO 7816-2
- Card thickness:
10 mil (.25mm) to 60 mil (1.524mm)
- Card cartridge
capacity: 75 cards (30 mil)
- Card output hopper
capacity: 75 cards (30mil)
Ribbon
Specifications
- i
Series Printers require the use of i
Series
ribbons for full color printing
- Monochrome: 1500
and 1000 cards/roll
- K Resin + O: 500
cards/roll
- YMC: 300 cards/roll
- YMCK: 400 cards/roll
- YMCKO: 330 cards/roll
- Overlay varnishes:
clear and hologram
Communications
Interface
- Centronics parallel
(parallel cable included)
- USB optional
- Serial optional
Mechanical
- Height:
12.4" (315mm)
- Depth:
7.75" (198mm)
- Width:
12.4" (315mm)
- Weight:
13.4 lbs (6.1kg)
Electrical
- 110 ~ 240 Volts
AC, 50 ~ 60 Hz (auto switching)
- FCC Class B, CE,
UL and CUL approved
Environmental
- Operating Temperature:
60°F to 86°F (15°C to 30°C)
- Operating humidity:
20% to 65% non condensing
- Storage temperature:
-23°F to 158°F (-5°C to 70°C)
- Storage Humidity:
20% to 70% non-condensing
- Ventilation: Free
air
Options
- Smart card contact
station (30 mil cards only)
- USB interface
- Serial interface
- Magnetic encoder
(30 mil cards only)
- Extended warranty
program
- Hot Swap warranty
program (USA only)
- Cleaning supplies
- Service manual
