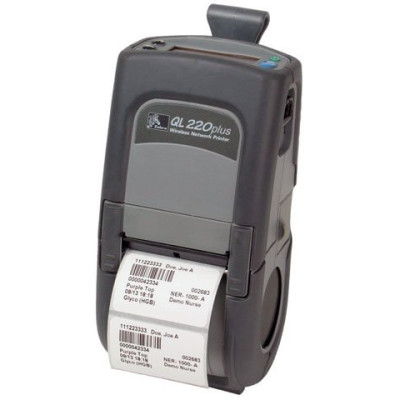

Zebra QL220 Plus Portable Printers
Great for complex printing applications on the go!
The compact, lightweight QL220 Plus direct thermal mobile printer delivers print widths up to 1.89". In addition to offering rugged construction, user-friendly options, and the flexible QuickLink connectivity that have made Zebra's QL220 Plus and other QL series printers so popular, the enhanced QL220 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.
|
|
Most Popular Configurations
| Part # |
Description |
Price |
Order |
| Q2C-LU1A0000-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, LCD, Cable Ready
|
$710.80
Stock level: 44 |
|
| Q2C-LUBA0000-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Bluetooth, Linered Platen and Belt Clip
|
$867.40
Stock level: 82 |
|
| Q2C-LUFA0000-00 |
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM, 4MB Flash, 2" print width, CPCL, EPL/ZPL Support, LCD, 802.11b Zebra Value Radio, Linered Platen and Belt Clip.
|
$1369.00
Stock level: 3 |
|
| Q2C-LUFA0010-00 |
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b Value radio, Shoulder Strap
|
$1381.00
Stock level: 3 |
|
| Q2C-LUMA0000-00 |
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM, 4MB Flash, 2" print width, CPCL, EPL/ZPL Support, LCD, 802.11b Symbol CF-NA, Linered Platen and Belt Clip.
|
$999.30
Stock level: 42 |
|
| Q2C-LUMA0010-00 |
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b, Shoulder Strap
|
$1023.70
Stock level: 3 |
|
| Q2C-LUNA0000-00 |
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b (WW)
|
$999.30
Stock level: 3 |
|
| Q2C-MU1A0000-00 |
This part is replaced by Q2C-LU1A0000-00.
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, Membrane-LED, Cable Ready, Linered Platen and Belt Clip
|
$703.20
Stock level: 4 |
|
| Q2C-LUKA0000-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Zebra Value Radio 802.11g, Linered Platen and Belt Clip
|
$927.80
Stock level: 3 |
|
| Q2C-LUKA0010-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Zebra Value Radio 802.11g, Linered Platen and Shoulder Strap
|
$989.00
Stock level: 49 |
|
Other Configurations
| Part # |
Description |
Price |
Order |
| Q2C-LUKC0000-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, 802.11g Zebra Value Radio, Linered Platen, Label Present Sensor and Belt Clip
|
$974.60
Stock level: 56 |
|
| Q2C-LU1A0010-00 |
Zebra QL220 Plus, Ql 220 Direct Thermal Mobile Printer, 2 inch Print width, 8MB RAM, 4MB, 2400 x 600, Color Laser Printer,
|
$767.10
Stock level: 3 |
|
| Q2C-LUBC0000-00 |
Zebra QL220 Plus, QL 220 Direct Thermal Mobile Printer (2 inch Print width, 8MB RAM, 4MB Flash
|
$838.70
Stock level: 14 |
|
| Q2C-LUMC0000-00 |
Zebra QL220 Plus, Ql 220 Direct Thermal Mobile Printer, 2 inch Print width, 8MB RAM, 4MB flash
|
$1093.40
Stock level: 3 |
|
| Q2C-LU1AV000-00 |
This part is replaced by Q2C-LU1A0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB Flash, LCD, Cable Ready
|
Call for Details |
| Q2C-LUBAV000-00 |
This part is replaced by Q2C-LUBA0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, Bluetooth
|
Call for Details |
| Q2C-LUFAV000-00 |
This part is replaced by Q2C-LUFA0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b Value radio
|
Call for Details |
| Q2C-LUFAV010-00 |
This part is replaced by Q2C-LUFA0010-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b Value radio, Shoulder Strap
|
Call for Details |
| Q2C-LUMAV000-00 |
This part is replaced by Q2C-LUMA0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b
|
Call for Details |
| Q2C-LUMAV010-00 |
This part is replaced by Q2C-LUMA0010-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b, Shoulder Strap
|
Call for Details |
| Q2C-LUNAV000-00 |
This part is replaced by Q2C-LUNA0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LCD, 802.11b (WW)
|
Call for Details |
| Q2C-MU1AV000-00 |
This part is replaced by Q2C-MU1A0000-00.
Zebra QL220 Plus, Direct Thermal Printer, Mobile, 203 dpi, 8MB RAM 4MB, LED, Cable Ready
|
Call for Details |
| Q2C-MUFA0000-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, Membrane-LED, Zebra Value Radio 802.11b, Linered Platen and Belt Clip
|
Call for Details |
| Q2C-MUKA0010-00 |
Zebra QL220 Plus, Direct thermal, 2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, Membrane-LED, Zebra Value Radio 802.11g, Linered Platen and Shoulder Strap
|
Call for Details |
Zebra QL220 Plus Details
Standard Features
-
- Print method: Direct thermal
- Rubber infused plastic over-mold design for tough conditions
- Battery monitoring via a battery low indicator light or gauge on the optional LCD
- Lithium ion battery
- “Clamshell” design and center locking media loading
- Backward compatible with Encore and Cameo media and cables
- Label Vista and Windows printer drivers
- Quick Flip Peel and Present Mode
- 32-bit High Speed Processor
- USB 2.0 Full Speed Support
Printer Specifications
- Resolution
- 203 dpi (8 dots/mm)
- Memory
-
- Print width
- 1.89" (48 mm) maximum
- Print length
- 32" (813 mm) maximum
- Print speed
- 3" (76 mm)/sec
- Media sensors
- Reflective
Transmissive
Media Characteristics
- Maximum label and liner width
- .63" (16 mm) to 2.18" (55 mm)
- Maximum roll diameter
- 2.2" (55.9 mm)
- Core diameter
- Interchangeable .75" (19.1 mm) or 1.38" (34.9 mm)
- Media thickness
- Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil
- Media types
- roll-fed, die-cut, linerless, receipt
Operating Characteristics
- Operating temperature
- DT: Operating temperature 5° F (-15° C) to 122° F (50° C) Direct thermal
- Storage temperatures
- -13° F (-25° C) to 158° F (70° C)
- Operating humidity
- 10-80% non-condensing
- Storage humidity
- 10-90% non-condensing
- Electrical
- External charger options
- Lithium Ion
- 2100 Ah
- 7.2 V
- Agency approvals
-
- FCC and CE Class B compliance
- Design certified by CSA
- CB Scheme report
- NOM certified
- C-Tick clearance
Physical Characteristics
- Width
- 3.57" (90.7 mm)
- Height
- 7.15" (181.6 mm)
- Depth
- 2.96" (75.2 mm)
- Weight
- 1.04 lbs (0.47 kg)
Related Products
- Options
-
- LCD control panel
- 802.11b wireless local area network (WLAN) or Bluetooth
- Peel and present mode
- Patented media width auto-sensing feature
- Linerless printing
- Spare Lithium Ion battery packs
- Battery chargers
- International character sets
- Label Vista software for receipt and label design and font creation
- Wireless Security Support (ie. VPN or WPA)
- Communication and Interface Capabilities
-
- RS-232 8PIN DIN connector serial port
- USB 2.0 Full Speed Support
- Selectable baud rate 9600 to 115.2 kbps
- Xon/Xoff or hardware flow control
- Optional: Bluetooth
- Optional: 802.11b Wireless LAN
Programming Languages
- Core programming languages
- EPL2, ZPL II, CPCL-native
Bar Codes/Symbologies
- Linear
- Codabar
Code 128
Code 93
Code 39
EAN-8 and EAN-13 with 2 or 5 digit extensions
Interleaved 2-of-5
Postnet
Plessey
UCC/EAN-128
FIM
UPC-A and UPC-E with 2 or 5 digit extensions
- 2-dimensional
- PDF417
MaxiCode
Data Matrix
RSS
QR Code
QR Code (requires Asian version printer)
- Fonts and Graphics
-
- Standard fonts: five resident scalable, rotatable fonts from 12-48 pt.
- Downloadable soft fonts from Label Vista software
- Optional internal character sets
- Supports graphics, line and box drawing features; PCX and bitmap
The Zebra QL220 Plus is also known as the Zebra QL 220 Plus.
|
