Altronix Power Device

Model AL802ULADA is an extremely cost effective 8 amp voltage regulated remote power supply/battery charger. It may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories. The unit delivers regulated and filtered 24 or 12 volt power to Class B or Class A NAC loop circuits. Additionally, a separate 1.0A auxiliary output with reset for four (4) wire smoke detectors is available. The 8 amp rated supply current can be divided between the four (4) outputs for powering NAC devices. Each output is rated at 2.5 amp max., and can be independently programmed for Steady, Temporal Code 3 or Strobe Synchronization. All outputs may be programmed for Input to Output Follower Mode (output will follow input. i.e. March Time Input, March Time Output). An individual output of 4 amp is achieved by paralleling 2 outputs. In non-alarm condition independent loop supervision for Class A and/or Class B FACP NAC circuits is provided. In the event of a loop trouble the FACP will be notified via the steered input (input 1 or input 2).

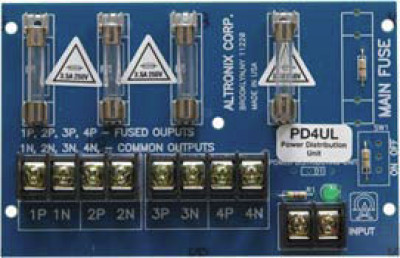

The PD4UL is a UL Recognized component power distribution module, designed to convert a single AC or DC intput into four (4) individually fuse protected outputs.

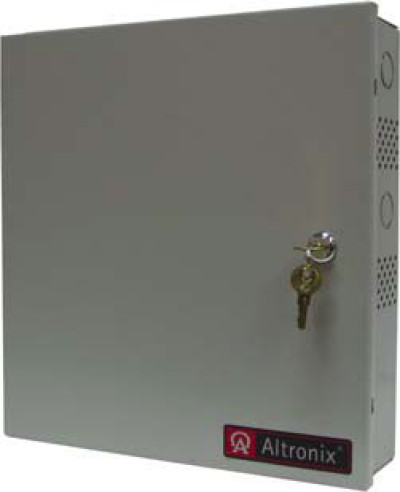

Model SMP10PM12P16 power supply/charger converts a 115 VAC 50/60Hz input, to a 12VDC @ 10 amp of continuous supply current distributed via sixteen (16) fuse protected outputs.

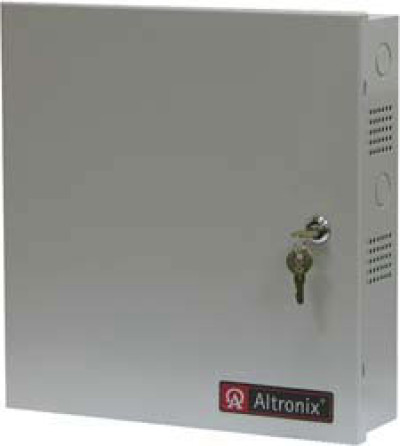

Model SMP3PMP4 power supply/charger converts a 115 VAC 50/60Hz input, to a 12VDC or 24VDC @ 2.5 amp of continuous supply current distributed via four (4) fuse protected outputs.

This dual channel unit is designed to provide 24VDC power for a maximum of two electrified panic devices with very high inrush requirements. Each channel has an adjustable relock delay input that will control a pair of doors simultaneously or independent control of two single doors. Unit has two sets of relays per channel which can be configured to trigger external relays, automatic door openers, ADA push plate switches etc. Unit can control automatic door operators where the doors are always locked or where the doors are unlocked during the business day. In addition, two un-switched auxiliary voltage outputs are provided for powering keypads, electronic timers, relays, etc. In addition, a programmable FACP interface will either provide power or remove power to the lock outputs when activated. LED status indicators are provided to monitor input AC voltage, FACP status and to distinguish between an open or a short on the lock output terminals. Intelligent logic provides protection against accidental shorting of lock outputs.

HubWay Video Balun/Combiner to be used with any HubWay and HubSat UTP Transceiver Hub routes Video/Data and Power from the Altronix HubWay or HubSat units for either fixed or PTZ cameras.

4PT FIB MED CONV/2SFP/BT/NEMA4

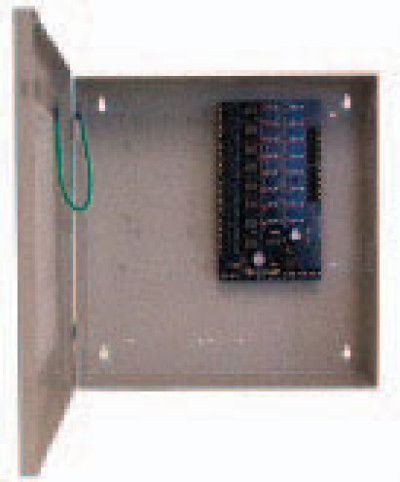

ACM8E Access Power Controller (Aux. Module, 8 Fused Relay Output Power Controller, CULUS Listed)

AL1024ULACM Power Supply-Charger (24VDC at 10 AMP with ACM8 Power Controller)

Altronix AL600ULMX Proprietary Power Supply - Wall Mount - 110 V AC Input - 5 +12V Rails
