Axicon Verifier

Products and parts from Axicon.

The Axicon 15000 barcode Verifier has been specifically designed to read both linear and 2D barcodes (whether matrix or stacked). The 15000 can verify linear barcodes up to a maximum length of 52 mm (2.0") including Quiet Zones, and 2D barcodes should have a maximum size of 52 mm x 31 mm (2.0" x 1.25") including quiet zones. The system consists of a state of the art array imaging camera and application software.

Barcode Verifier - 15200 - Reads 1D & 2D - 60 mm x 45 mm Field of View (2.36-inches x 1.77-inches), ISO/IEC Complaint Verification - 5 megapixel Camera - Read 6 mils x-dimension (0.150 mm) - USB Interface

The 15200 barcode verifier is designed to read both linear and two-dimensional matrix barcodes. Its configuration means it can read small barcodes with an x-dimension down to 0.150 mm (6mils).

Barcode Verifier - Axicon 7100-S - Barcode Verifier - 100 Verification Scans per second - ISO/IEC Compliant Verification - Automatic Variable Aperture - User Configurable - USB Interface

Barcode Scanner - Axicon - 6100-S Barcode Verifier - Reads 1D Codes and Laetus Pharmacode - ABS Plastic - CCD Sensor - LED Illumination - USB 2.0 - 130mA at 5v

The Axicon 6000 Series is designed for all bar codes where a 4, 5, 6, 10 & 20 mil aperture is mandatory up to 72mm width including light margins. The simple to use design reduces user error and eliminates product damage whilst providing the highest level of accuracy achievable for verification.

The Axicon 7000 Series specifically verifies the larger type of bar codes being used in logistics. Typically ITF-14 and GS1-128 (formally EAN-128). Maximum scan width is up to 195mm.

NIST Traceable Calibration Cards Pack of 5

6000 Series, 6015/7015 combination kit of two verifiers

6000 Series Accessories, 6000 series nose cone

6000 Series Accessories, 6015 USB Cable

6000 Series Accessories, Carry Case for Axicon 6015 verifier

6500 Accessories, Carry Case for Axicon 6515 verifier

7025-S, Continuous scanning verifier for 1D linear barcodes up to 7.6" (USB2)

7025-S, 6025-S/7025-S combination kit for continuous scanning

Laetus, Laetus Pharmacode Verifier (PC Based Only) for White Light

Laetus Accessories, Laetus Pharmacode software upgrade

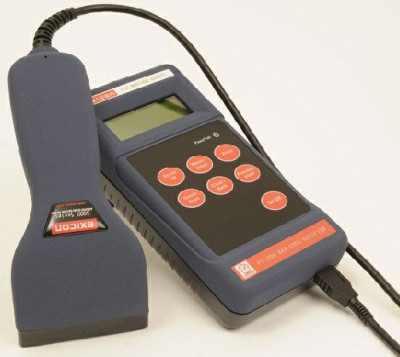

PV Series Accessories, Portable Verifier Accessory: Belt Bag for Portable Verifier

PV Series Accessories, Set of replacement 2700Ma NIMH batteries and Charger for PV1000
