Bogen Loudspeaker and Paging System

Cable kit for Bogen products.

An 8" cone-type loudspeaker from Bogen, AS1 Amplified Ceiling Speaker is capable of interfacing with standard 600-ohm telephone lines. It incorporates a 1-watt amplifier and a volume control. Volume control allows you to adjust the paging level of individual speakers in the network. AS1 Amplified Ceiling Speaker comes unmounted.

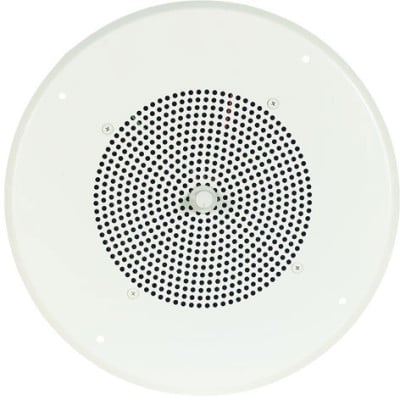

The Bogen ASWG1 Amplified Ceiling Speaker is an 8" cone-type loudspeaker capable of interfacing with standard 600-ohm telephone lines. The ASWG1 Amplified Ceiling Speaker incorporates a 1-watt amplifier and volume control. Volume control allows adjustment of the paging level of individual speakers in the network. ASWG1 Amplified Ceiling Speaker comes with a detachable knob for volume control and a white ceiling grille.

A 8" 1-watt self amplified cone speaker from Bogen, the ACD2X2 Ceiling Speaker features an easy-to-install, drop-in ceiling speaker system. It provides a front-mounted recessed volume control. It also features a finely perforated grille and fully-enclosed industrial grade steel construction.

CS1EZ Ceiling Speaker from Bogen incorporates an 8" cone speaker with 4900 ohms impedance and a frequency range of 50Hz to 12kHz. It features 1-watt single-tap design to work with 70V amplifier outputs. The unit includes a volume control knob, 13" diameter steel ceiling grille with white enamel finish and a rear-mounted screw terminal board for fast and easy installation.

Bogen's CSD1X2 Ceiling Speaker, a drop-in ceiling speaker, comes with 4-watt multi tap transformer with a rotary switch for power tap selection. Its frequency response ranges from 110Hz to 20kHz. It also features an 8" main cone and a secondary high frequency cone. Its one-piece assembly design makes installation a breeze. Includes a perforated grill, integrated tile support rail and seismic attachment point.

The drop-in ceiling speaker, CSD2X2CA Ceiling Tile Speaker from Bogen comes with 4 watt multi tap transformer with a rotary switch for power tap selection. Its frequency response range is 110Hz to 20kHz. It also features a 8" main cone and secondary high frequency cone. Its one-piece assembly design makes installation a breeze. Other characteristics include perforated grille, rail crossbar support and a fully enclosed, industrial grade steel construction.

Slim and unobtrusive in design, GCU250 Gooseneck Microphone from Bogen provides smooth, noiseless and precise microphone positioning. It exudes a speech-tailored frequency response with rich treble and bass. The model offers minimal ambient and handling noise with high intelligibility to cut through noisy backgrounds and large gatherings. Notable characteristics include Cardioid pickup pattern, Electret condenser element, 250-ohm impedance, wide frequency response range of 50 Hz - 18 kHz, a low sensitivity of -65 dB +/- 3 dB, integral windscreen and an XLR connector

Bogen's HDO100 Microphone handheld public address microphone offers clean and clear sound reproduction with minimal ambient interference. It's moving coil dynamic element provides a smooth, extended response and good linearity. Omnidirectional pickup patterns ensure uniform pickup of sound from all directions with no weakening in frequency. HDO100 Microphone provides a custom tailored balanced response to complement any vocal style and timbre for singing, speech, or instrument sound reproduction. Other characteristics include low sensitivity of -72 dB +/- 3 dB, 500-ohm impedance, internal rubber shock isolation system, a rigid low noise cable mount system, and a lockable silent on/off reed switch.

High-Fidelity Ceiling Speaker
