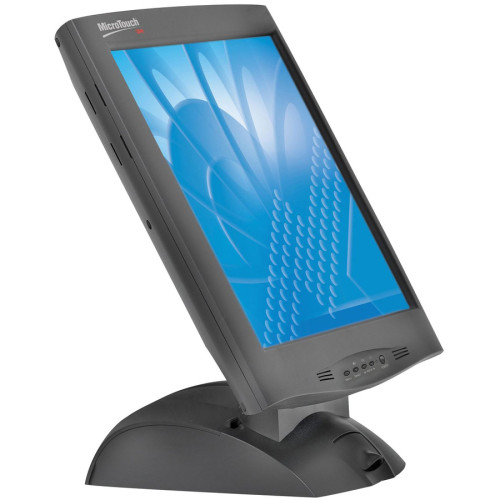

3M Touch Systems 11-91375-225 Touchscreen
Part #: 11-91375-225 | SKU: 3M 24263

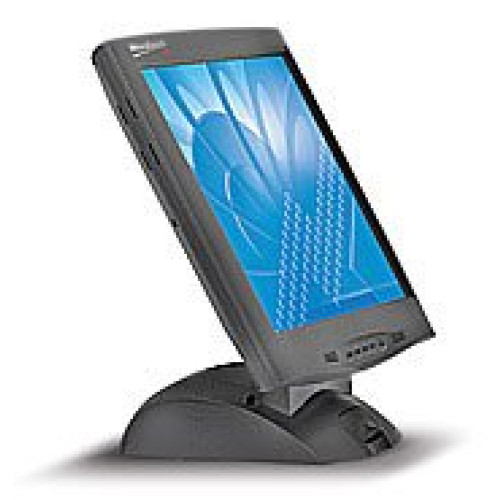

The MicroTouch M170 Touch Monitor from 3M was designed to be different. The result of extensive customer research, innovative industrial design, and years of touch technology expertise, the M170 monitor's unique mechanical and technology features offer premium performance for a wide-range of implementations.

3M Touch Systems 11-91375-225 Touchscreen

Part Details: M170 FPD Touch Monitor (17 Inch, Desktop LCD, Touch Screen, USB, Multimedia and CT II) - Color: Black

Need a different version of the 3M Touch Systems M170 FPD Touchscreen? View all 6 configurations

Additional Information

Color	Black
Display Type	LCD
Form Factor	Desktop
Manufacturer	3M Touch Systems
Model Name	M170 FPD

3M Touch Systems M170 FPD Specs (pdf)

Technical Information

Touch Screen Type: Capacitive
Screen Size: 17" - Active Matrix TFT LCD
Dot Pitch: 0.264mm
Monitor Response Time: 16ms Typical
Mountable: Wall Mountable - VESA
Front Panel Controls:
- Menu Adjust Select Power
- MenuAdjustSelectPower
OSD Controls:
- Brightness Contrast Horizontal Position Vertical Position Clock Phase Auto Config Color Recall
- BrightnessContrastHorizontal PositionVertical PositionClockPhaseAuto ConfigColorRecall

General Information

Manufacturer: 3M
Product Line: MicroTouch
Product Name: MicroTouch M170 Touch Screen Monitor

Physical Characteristics

Color: Black
Dimensions:
- 413.3mm (16") x 405mm (16") x 247mm (10") - Depth Includes Base
- 413.3mm (16") x 405mm (16") x x 247mm (10") - Depth Includes Base
Weight: 8.6 kg (18.96 lb)

Interfaces/Ports

Interfaces:
- 15-pin - HD DB-15
- DVI-I
- USB
- Audio Input
- Audio Output

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 80% Operating Non-condensing

Other

Additional Information:
- Display Colors: 16.7 Million Color Backlight Life: 40000 Hours User-Lockable OSD Controls 5-year Touch Sensor and Components Warranty Viewing Angle: Horizontal: 160Â° Vertical: 160Â°
- Display Colors: 16.7 Million ColorBacklight Life: 40000 HoursUser-Lockable OSD Controls5-year Touch Sensor and Components WarrantyViewing Angle:Horizontal: 160Â°Vertical: 160Â°

Display & Graphics

Maximum Resolution: 1280 x 1024
Brightness: 344 cd/m2
Ratio: 450:1 - Contrast Ratio

Agency Approvals

Agency Approvals:
- RoHS Compliant FCC Class B CE UL cUL C-Tick VCCI CCC
- RoHS CompliantFCC Class BCEULcULC-TickVCCICCC

Power Description

Input Voltage: 12 V DC
Power Consumption: 25W - Normal Operation
Power Management: VESA DPMS

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details
