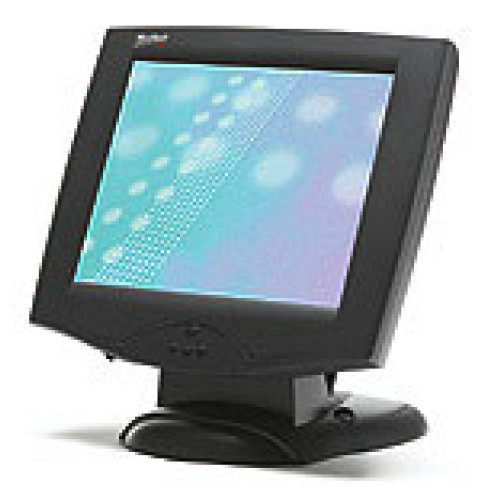

3M Touch Systems 41-81375-225 Touchscreen
Part #: 41-81375-225 | SKU: 3M 27761

We envisioned a touch monitor that would set a new standard of excellence creating a monitor form factor that is a breakthrough in display design. Meeting this goal required fresh thinking novel methods and ultimately a totally new touch monitor. The MicroTouch M150 Touch Monitor is the culmination of this innovative new approach. ----Touch monitor users know standard desktop monitors and touch monitors are worlds apart. Flat panel monitors are slim sleek lightweight and typically have a small footprint. All of this can translate into a monitor that is unstable to the touch. We designed the M150 monitor to offer all of the benefits that LCD technology affords yet remain remarkably stable to the touch. The M150 offers a patent-pending feature set combining stability adjustability aesthetics and mounting flexibility in a compact package.

3M Touch Systems 41-81375-225 Touchscreen

Part Details: M150 FPD Touch Monitor (15 Inch Desktop LCD, USB Interface, Resistive and Multimedia) - Color: Black

Need a different version of the 3M Touch Systems M150 FPD Touchscreen? View all 12 configurations

Additional Information

Form Factor	Desktop
Manufacturer	3M Touch Systems
Model Name	M150 FPD

3M Touch Systems M150 FPD Specs (pdf)

Technical Information

Touch Screen Type: Resistive
Screen Size: 15" - Active Matrix TFT LCD
Dot Pitch: 0.297mm
Monitor Response Time: 25ms Typical
Mountable: VESA
Front Panel Controls: Menu Select Adjust Power
OSD Controls: Brightness Contrast Horizontal Position Vertical Position Clock Phase Auto-Phase Color

General Information

Manufacturer: 3M
Product Line: MicroTouch
Product Name: MicroTouch M150 Touch Screen Monitor

Physical Characteristics

Color: Black
Dimensions: 15.7" (399mm) x 16.1" (409mm) x 10.2" (259mm) - Depth Includes Base
Weight: 7.4 kg (16.31 lb)

Interfaces/Ports

Interfaces:
- 1 x 15-pin - HD DB-15
- 1 x USB

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 85% Operating Non-condensing

Display & Graphics

Maximum Resolution: 1024 x 768
Brightness: 215 cd/m2
Ratio: 350:1

Power Description

Input Voltage: 12 V DC
Power Consumption: 28W - Normal Operation
Power Management: VESA DPMS

Agency Approvals

Agency Approvals: RoHS Compliant FCC Class B CE UL cUL C-Tick VCCI CCC

Other

Additional Information: Display Colors: 16.7 Million Colors Backlight Life: 50000 Hours Full Multimedia Capability 5-year Touch Sensor and Components Warranty Viewing Angle: Horizontal: 150Â° Vertical: 135Â°

Warranty

Manufacturer Warranty: 3 Year(s)
