Adtran 1175407L2 Data Networking
Part #: 1175407L2 | SKU: ADT40202

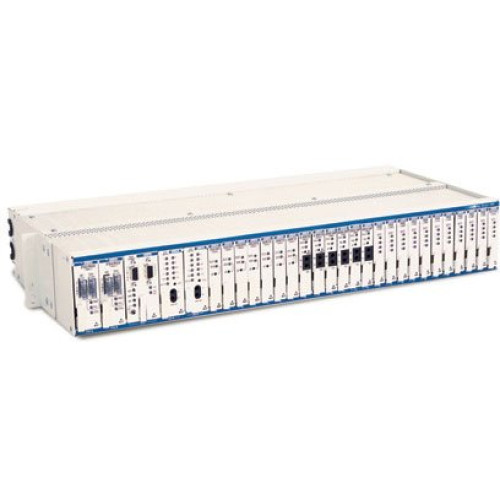

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500?s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran 1175407L2 Data Networking

Part Details: Adtran Total Access 1175407L2 Expansion Module - 24 x FXO

Need a different version of the Adtran Total Access 1500 Accessory? View all 15 configurations

Additional Information

Manufacturer AIDC	Adtran
Model Name	Total Access 1500

Adtran Total Access 1500 Specs (pdf)

General Information

Product Type: Expansion Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1175407L2
Product Name: Total Access 1175407L2 Expansion Module
Product Line: Total Access

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 3.3" Height x 10" Depth
Weight (Approximate): 1 lb

Interfaces/Ports

Interfaces/Ports: 24 x FXO
Interfaces/Ports Details: 24 x Channel FXO

Other

Compatibility:
- Total Access 750/850 Voice Access
- Total Access 750/850 Voice Access
Certifications & Standards:
- Agency Approvals:
- UL 1950
System Requirements: Occupies a single slot in Total Access 750 or 850
Additional Information:
- Four analog voice interfaces (up to 24 ports per chassis)
- Supports ground start,loop start
- Long loop capability - 1200 ohm
- V.90 modem compliant
- Installs in any slot one through six
- Hot swappable
-
- Operating Modes:
- FXO Foreign Exchange Office (FXO)
- Dial Pulse Terminate (DPT)
-
- Termination Impedance:
- 600 or 900 ohm, 2.15uF
-
- Signaling Methods:
- Loop start
- Ground start
- Wink start to loop start
- Wink start to ground start
- Immediate start to loop start
- Immediate start to ground start
- TR-08: Single Party Ringing (SPR) and Universal Voice Grade (UVG) analog ports supported
-
- Range:
- Loop Range: 0 to 1200 ohm loop
- Transmit Gain: 0 to -9 dBm
- Receive Gain: 0 to -9 dBm<br>

Environmental Conditions

Humidity: Up to 95% Non-condensing Relative Humidity
Temperature:
- -40°F (-40°C) to 158°F (70°C) Operating
- -40°F (-40°C) to 158°F (70°C) Storage

Warranty

Limited Warranty: 10 Year - North America

Power Description

Power Consumption: 0.50 W

Extended Details
