Adtran 1180212L2 Data Networking
Part #: 1180212L2 | SKU: ADT40134

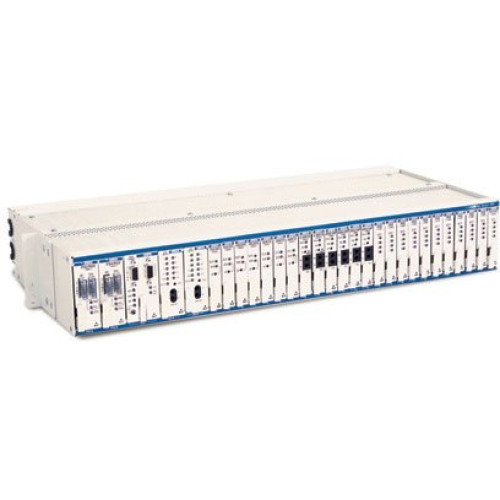

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500’s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran 1180212L2 Data Networking

Part Details: Adtran Total Access 1500 Dual 4-Wire TO Access Module

Need a different version of the Adtran Total Access 1500 Accessory? View all 15 configurations

Additional Information

Manufacturer	Adtran
Model Name	Total Access 1500

Adtran Total Access 1500 Specs (pdf)

General Information

Product Type: Access Control Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180212L2
Product Name: Total Access 1500 Dual 4-Wire TO Access Module

Technical Information

Application/Usage: Access Control

Physical Characteristics

Dimensions: 3.1" Height x 0.6" Width x 10.1" Depth
Weight (Approximate): 1 lb

Other

Compatibility: Total Access 1500 chassis
Additional Information:
- Supports configurations for Sink,Source or No Sealing Current
- Provisioning by craft interface or Site Manager
- Digital Loopback and 1004 Hz Digital Reference Signal (DRS)Tone Tests via craft port or Site Manager
- NEBS Level 3 and UL 1950 compliant
- Standard Warranty: 10 Year Repair/Replace

Warranty

Limited Warranty: 10 Year
