Adtran 1180430L1 Data Networking
Part #: 1180430L1 | SKU: ADT71110

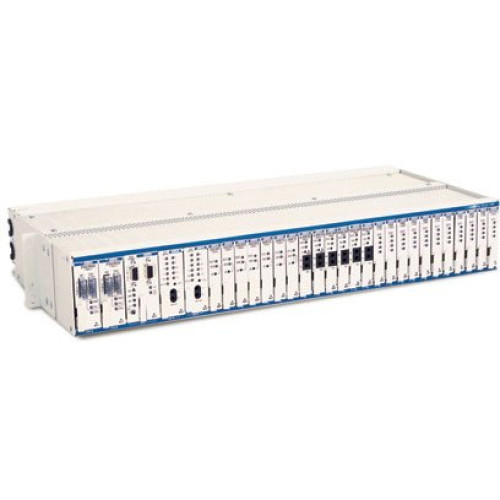

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500’s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran 1180430L1 Data Networking

Part Details: Adtran Total Access 1500 Dual EBS-COT - 1 x T1

Need a different version of the Adtran Total Access 1500 Accessory? View all 15 configurations

Additional Information

Manufacturer	Adtran
Model Name	Total Access 1500

Adtran Total Access 1500 Specs (pdf)

General Information

Product Type: Voice Interface Card (VIC)
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180430L1
Product Name: Total Access 1500 Dual EBS-COT
Product Line: Total Access

Technical Information

Application/Usage: Voice

Physical Characteristics

Dimensions: 3" Height x 0.6" Width x 10" Depth
Weight (Approximate): 4.50 oz
Form Factor: Hot-pluggable

Interfaces/Ports

Interfaces/Ports: 1 x T1
Interfaces/Ports Details: 1 x 50-pin Amphenol T1

Other

Certifications & Standards:
- UL
- NEBS
- TR-NWT-000057
- Northern Telecom
- Telcordia
Additional Information:
- Maximum heat dissipation: 2.414 W
- Nominal voltage: -48 VDC
- Maximum power draw:
- -7.0 V @ 0.2 W
- +5.0 V @ 0.52 W
- +3.3 V @ 0.029 W
- Extended Super Frame (ESF) signaling
- Remote provisioning
- Standard Warranty: 10 Year Repair/Replace

Environmental Conditions

Humidity: 95% Non-condensing
Temperature:
- -40°F (-40°C) to 149°F (65°C) Operating
- -40°F (-40°C) to 158°F (70°C) Storage

Warranty

Limited Warranty: 10 Year

Media & Performance

Data Transfer Rate: 1.54 Mbps T1

Power Description

Input Voltage: -42 V DCto -54 V DC Operating

Extended Details
