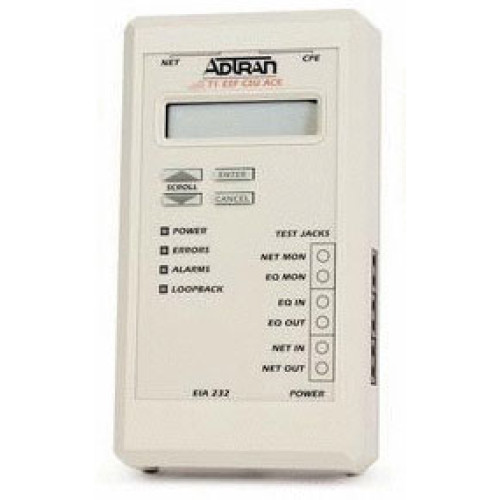

Adtran 1204025L1 Data Networking
Part #: 1204025L1 | SKU: ADT33072

A full line of T1 products from ADTRAN provides termination options ranging from economical to full-featured. ADTRAN's T1 CSU and single-port DSU/CSUs, many of which are offered in both standalone and rackmount configuratons, offer a T1 termination solution without the cost of additional features. ADTRAN's full-featured single port DSU/CSU, the TSU ESP, provides optional SNMP management and dial backup for an advanced network access solution.

Adtran 1204025L1 Data Networking

Part Details: T1 ESF CSU ACE (4th Generation)

Need a different version of the Adtran T1 ESF CSU ACE Data Networking? View all 1 configurations

Additional Information

Manufacturer	Adtran
Model Name	T1 ESF CSU ACE

General Information

Product Type: CSU
Brand Name: Adtran
Manufacturer: Adtran
Product Name: T1 ESF ACE CSU

Technical Information

Encoding Method: AMI/B8ZS

Physical Characteristics

Height: 2"
Width: 9.3"
Depth: 6.5"
Form Factor:
- Desktop
- Wall Mountable
- Rack-mountable
Weight (Approximate): 1 lb

Interfaces/Ports

Serial Port: Yes

Other

Package Contents:
- T1 ESF CSU ACE
- T1 Loopback Test Adapter
- RJ45 Cable
- AC wallmount power supply
- Manual
- T1 ESF CSU ACE
- T1 Loopback Test Adapter
- RJ45 Cable
- AC wallmount power supply
- Manual
Certifications & Standards:
- FCC part 15 Class A Part 68
- Industry Canada CS03
- UL 1459
- CUL
- Compliance:
- ANSI T1.403
- AT&T 62411
Additional Information:
- Framing: SF/ESF
- Equipment line build-out configuration 0-655 feet
- Bantam Jacks:
- Test Signal access to Network & DTE
- Non-interrupt signal receive: Network & DTE

Power Description

Maximum Power Consumption: 2.50 W
Input Voltage: 48 V DC

Warranty

Limited Warranty: 5 Year

Extended Details
