Adtran 4200321L2 Data Networking
Part #: 4200321L2 | SKU: ADT39776

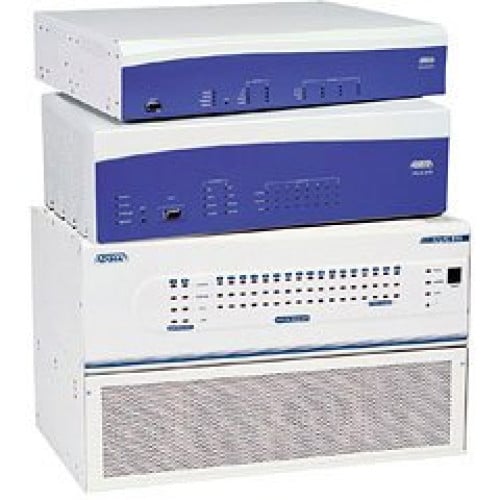

The Adtran ATLAS 800 Series of Integrated Access Devices (IADs) offers one of the most versatile multi-function, modular integrated access platforms available on the market today for converging WAN access, voice, video, data, and Internet communications. This series includes the economical ATLAS 830 and larger 890 Integrated Access Devices (IADs), their chassis modules, and bundled systems designed to improve and reduce overall telecommunications expenses.

Adtran 4200321L2 Data Networking

Part Details: ATLAS 890 AC Redundant System (for TDM, ISDN, and Frame Relay applications. Redudant system includes two Controller Cards, two AC Power Supplies, and 13 option module slots for ATLAS 800 Series modules.

Need a different version of the Adtran ATLAS 800 Data Networking? View all 2 configurations

Additional Information

Manufacturer	Adtran
Model Name	ATLAS 800

General Information

Product Type: Router
Product Series: 800
Brand Name: Adtran
Manufacturer: Adtran
Product Name: Atlas 890 Gateway
Product Line: Atlas

Physical Characteristics

Height: 10.5"
Width: 19"
Depth: 11.5"
Form Factor: Rack-mountable

Interfaces/Ports

Number of Network (RJ-45) Ports: 1
Total Number of Ports: 1
Management Port: Yes
Number of Serial Ports: 1
Number of RJ-48 Ports: 1

Other

Package Contents:
- ATLAS 890 Enterprise Integrated Access Device
- ADTRAN utilities software (includes TFTP Server, VT100 Client, Telnet)
- One RJ48-DB15 adapter
- One RJ48-DB9 adapter
- User manual on CD
- Mounting Kit
- Rack Mounting Kit
- ATLAS 890 Enterprise Integrated Access Device
- ADTRAN utilities software (includes TFTP Server, VT100 Client, Telnet)
- One RJ48-DB15 adapter
- One RJ48-DB9 adapter
- User manual on CD
- Mounting Kit
- Rack Mounting Kit
Certifications & Standards:
- RFC 1490
- RFC1213
- RFC1406
- IEEE 802.3
- Agency approvals:
- UL 1950
- CUL
- FCC Part 15 (Class A)
- FCC Part 68
Additional Information:
- Fully redundant logic and power supplies
- Modular chassis provides high port density
- Supports T1, T3, ISDN, and Frame Relay applications
- Supports all ATLAS 800 Series modules (hot swappable)
- System Controller includes software for multiplexing, 1/0 and 3/1/0 DACSing, IP routing, ISDN switching, and intelligent voice and data call routing
- System Controller includes Frame Relay software for access, concentration, and switching
- Network emulation capabilities including T1, T3, BRI, PRI, E1, PRA, and Frame Relay
- The ATLAS 890 supports multiple network technologies including T1/FT1/DSX-1, E1/PRA, ISDN, V.35 and 10/100 Ethernet.
- System Controller:
- Provides all processing, control, and management functions for the ATLAS 890
- Fault detection circuitry
- Automatic error detection and switchover to hot standby controller
- Hot swappable
- Flash Downloadable for firmware upgrades
- Built-in Test Pattern Generator
- Link Management:
- ANSI T1.617-D (Annex D)
- ITU-T Q.933-A (Annex A)
- LMI (Group of four)
- Automatic link management protocol discovery congestion control
- FECN/BECN, Discard Eligible (DE)
- Quality Of Service:
- User configurable DLCI priorities
- G.723.1 voice compression
- ISDN Compatibility:
- Lucent 4ESS/5ESS, Nortel DMS-100/250, NI-1 and NI-2

Power Description

Redundant Power Supply: Yes
Input Voltage: 110 V AC
Power Source: Power Supply

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

Warranty

Limited Warranty: 5 Year

I/O Expansions

Number of Total Expansion Slots: 13

Extended Details
