Additional Information
| Manufacturer | Adtran |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Data Multiplexer
- Product Series: MX2800
- Brand Name: Adtran
- Manufacturer: Adtran
- Product Model: MX2800 M13

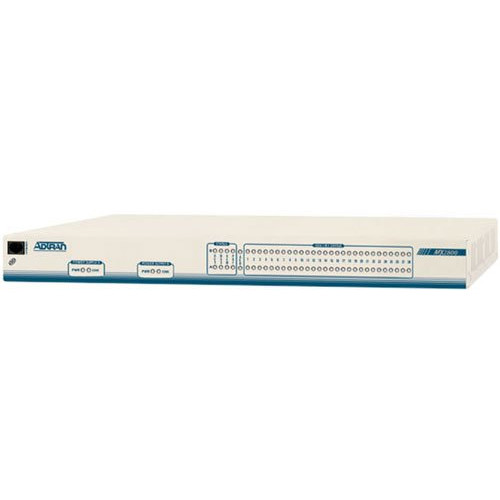

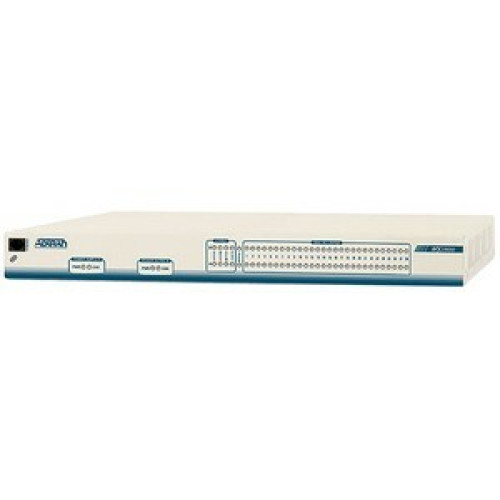

- Product Name: MX2800 M13 Multiplexer
Physical Characteristics
- Height: 1.7"
- Width: 17"
- Depth: 7.9"
- Form Factor: Rack-mountable
- Weight (Approximate): 5.50 lb
- Rack Height: 1U
Interfaces/Ports
- Number of Network (RJ-45) Ports: 1
- Number of BNC Ports: 2
- Management Port: Yes
- Number of Amphenol Ports: 2
Other
- Package Contents:
- MX2800 M13 Multiplexer
- 8-pin to 8-pin Modular Cable
- Modular to Female DB-9 Adapter
- Mounting Ears for 19" and 23" Racks
- User Manual
- Non-Redundant DC Power Supply
- MX2800 M13 Multiplexer
- 8-pin to 8-pin Modular Cable
- Modular to Female DB-9 Adapter
- Mounting Ears for 19" and 23" Racks
- User Manual
- Non-Redundant DC Power Supply
- Additional Information:
- Built-in 1:1 redundancy
- Advanced diagnostics including built in BERT capability
Media & Performance
- Maximum Data Transfer Rate: 44.74 Mbps
- Media Type Supported:
- Coaxial
- Twisted Pair
- Network Technology Supported: 10Base-T
- Connectivity Technology: Wired
