Adtran Parts Data Networking Device
Part #: 4213680L1#TDM | SKU: ADT40200

Products and parts from Adtran.

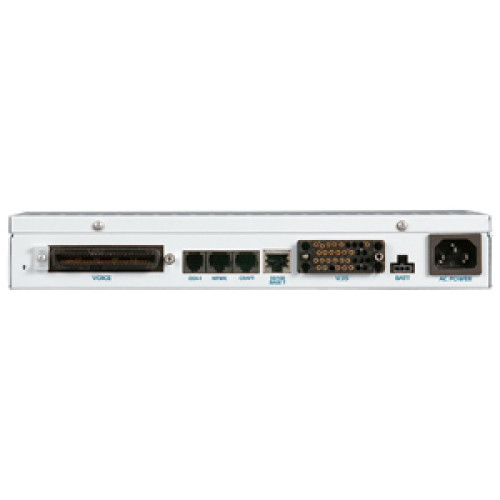

Adtran Parts Data Networking Device

Part Details: Adtran Total Access 608 T1 TDM Gateway - 8 x FXS, 1 x T1 WAN, 1 x 10/100Base-TX LAN, 1 x Serial, 1 x DSX-1 WAN
MSRP: $1,050.00 Price: $927.37

Additional Information

Manufacturer Adtran
Model Name Parts
Product Condition New

General Information

  • Product Type: Router
  • Product Series: 600
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 608
  • Product Name: Total Access 608 T1 TDM Gateway
  • Product Line: Total Access

Physical Characteristics

  • Height: 2"
  • Width: 11.3"
  • Depth: 7.5"
  • Form Factor:
    • Wall Mountable
    • Desktop
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Total Number of Ports: 2
  • Management Port: Yes
  • Number of Serial Ports: 1
  • Number of RJ-48 Ports: 1

Other

  • Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.1D
    • IEEE 802.3U
    • RFC 1483
    • RFC 2364
    • I.610
    • G.165
    • G.168
    • G.711
    • G.726
    • Agency Approvals:
    • EN55022
    • EN50082-1
    • EN60950
    • ETSI 300-386-2
    • UL1950
    • CUL
    • FCC Part 15 (Class A)
    • FCC Part 68
  • Additional Information:
    • T1 TDM with DSX-1
    • Designed for VoDSL applications
    • Includes Echo Cancellation and ADPCM compression resources
    • Integral IP router via 10/100BaseT Ethernet
    • V.35 synchronous DTE interface
    • Assured Dialtone with Lifeline POTS
    • Rugged metal casing
    • Voice Codes: PCM, 32k ADPCM
    • Echo cancellation, 8 ms echo tail
    • Idle channel suppression
    • Supports popular CLASS features
    • Modes: FXS Loop Start, Ground Start
    • Ringing: balanced, 15 REN, total
    • Programmable DC offset: 45Vrms -60Vrms
    • Copper Mountain Compatible
    • Rate-adaptive, enhanced spectral compatibility

Network & Communication

  • Network Technology:
    • 10/100Base-TX
    • DSX-1
    • T1

Power Description

  • Input Voltage: 110 V AC
  • Power Source: Power Supply

Warranty

  • Limited Warranty: 10 Year

Media & Performance

  • Carrier Supported: T-carrier
