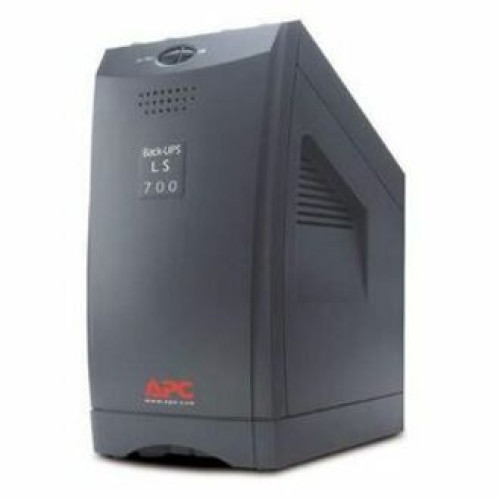

APC BP700UC UPS
Part #: BP700UC | SKU: APC27777

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC BP700UC UPS

Part Details: APC Back-UPS LS 700 - 700VA - 2.2 Minute Full Load - 4 x NEMA 5-15R, 3 x NEMA 5-15R

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

Additional Information

Manufacturer	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 4 x NEMA 5-15R
- 3 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 6 ft
Dataline Protection: RJ-11

General Information

Product Type: Line-interactive UPS
Product Series: LS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Back-UPS LS 700
Product Line: Back-UPS

Physical Characteristics

Height: 9.4"
Width: 5"
Depth: 7.9"
Weight (Approximate): 17 lb
Color: Charcoal

Interfaces/Ports

USB: Yes

Other

Package Contents:
- CD with software
- User Manual
- USB cable
- Velcro Cord Management Straps
- CD with software
- User Manual
- USB cable
- Velcro Cord Management Straps
Certifications & Standards:
- CSA
- FCC Part 15 Class B
- FCC Part 68
- UL 1778
- FCC Part 15 Class B
Additional Information:
- Addl Surge Protected Outlets
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Overload Indicator
- Replace Batt Indicator
- Resettable circuit breaker
- Software
- Status Indicator LED's
- Transformer Block Spacing
- Unattended Safe & Graceful Shutdown
- User Replaceable batteries

Battery Information

Maximum Battery Recharge Time: 10 Hour
Backup/Run Time (Half Load): 11.10 Minute
Backup/Run Time (Full Load): 2.20 Minute
Battery Characteristics: Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Overload

Power Description

Load Capacity (VA): 700 VA
Power Consumption: 410 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Controls/Indicators

Status Indicators: LED status display with On Line : On Battery : Replace Battery and Overload indicators

Warranty

Limited Warranty: 2 Year

Environmental Conditions

Temperature: 113°F (45°C)

Extended Details
