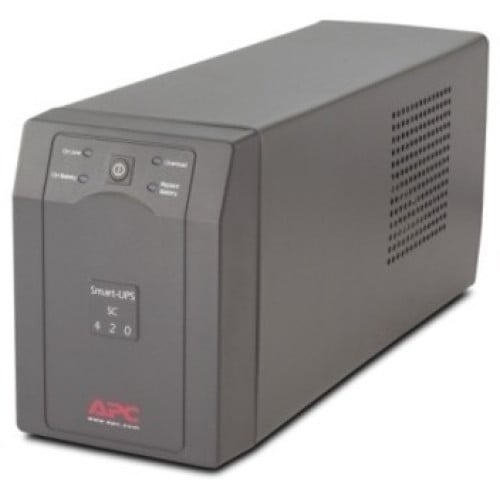

APC SC420 UPS
Part #: SC420 | SKU: APC24304

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC SC420 UPS

Part Details: Smart-UPS SC 420VA 120V

Need a different version of the APC Smart-UPS Series Accessory? View all 33 configurations

Additional Information

Manufacturer	APC
Model Name	Smart-UPS Series

General Information

Product Type: Line-interactive UPS
Product Series: SC
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS SC 420VA
Product Line: Smart-UPS

Technical Information

Receptacles: 4 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 6 ft
Dataline Protection: RJ-45
Emergency Power OFF: Optional

Physical Characteristics

Height: 7"
Width: 5"
Depth: 15"
Form Factor: Mini-tower
Weight (Approximate): 22 lb
Color: Gray

Interfaces/Ports

Serial Port: Yes

Other

Package Contents:
- Smart-UPS SC 420VA
- CD with software
- RS-232 cable
- User Manual
- Smart-UPS SC 420VA
- CD with software
- RS-232 cable
- User Manual
Certifications & Standards:
- CSA
- FCC Part 15 Class B
- NOM
- UL 1778
- UL 1449
Additional Information:
- Automatic restart of loads after UPS shutdown
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Generator Compatible

Battery Information

Backup/Run Time (Half Load): 13.50 Minute
Backup/Run Time (Full Load): 5.50 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Controls/Indicators

Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery

Power Description

Load Capacity (VA): 420 VA
Load Capacity (Watt): 260 W
Surge Energy Rating: 412 J

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 50 BTU/h

Warranty

Limited Warranty: 2 Year

Extended Details
