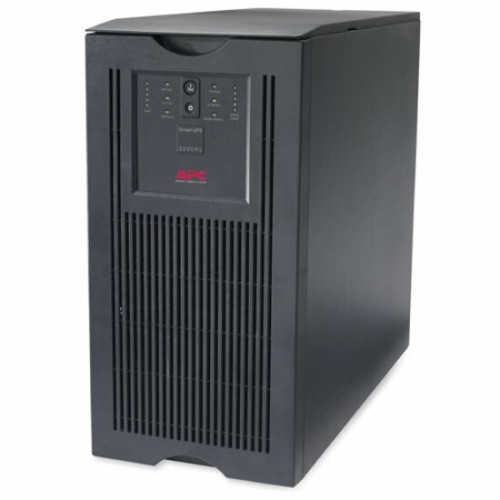

APC SUA2200XL UPS
Part #: SUA2200XL | SKU: APC27779

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC SUA2200XL UPS

Part Details: APC Smart-UPS XL 2200VA Tower/Rack-mountable - 2200VA/1850W - 10.4 Minute Full Load - 9 x NEMA 5-15R, 2 x NEMA 5-20R

Need a different version of the APC Smart-UPS Series Accessory? View all 33 configurations

Additional Information

Manufacturer	APC
Model Name	Smart-UPS Series

General Information

Product Type: Line-interactive UPS
Product Series: XL
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SUA2200XL
Product Name: Smart-UPS XL 2200VA Tower/Rack-mountable
Product Line: Smart-UPS

Technical Information

Receptacles:
- 9 x NEMA 5-15R
- 2 x NEMA 5-20R
Plug/Connector Type: NEMA 5-20P
Emergency Power OFF: Optional

Physical Characteristics

Height: 17.5"
Width: 8.7"
Depth: 19.5"
Rack Height: 5U
Form Factor: Tower
Weight (Approximate): 137 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart-UPS XL 2200VA Tower/Rack-mountable
- CD with software
- Smart UPS signaling RS-232 cable
- USB cable
- User manual
- Smart-UPS XL 2200VA Tower/Rack-mountable
- CD with software
- Smart UPS signaling RS-232 cable
- USB cable
- User manual
Certifications & Standards:
- UL 1449
- CSA
- FCC Part 15 Class A
- UL 1778
Software Included: PowerChute Management Software

Battery Information

Maximum Battery Recharge Time: 3 Hour
Number of Batteries: 1
Backup/Run Time (Half Load): 28.50 Minute
Backup/Run Time (Full Load): 10.40 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid

Power Description

Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1850 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Warranty

Limited Warranty: 2 Year
