APC SURT10000XLT-2TF3 UPS
Part #: SURT10000XLT-2TF3 | SKU: APC59828

Products and parts from APC.

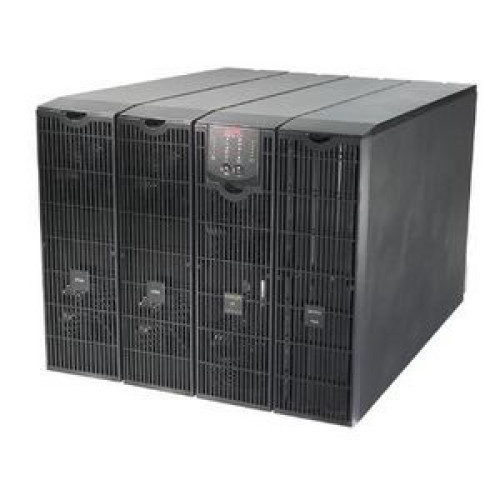

APC SURT10000XLT-2TF3 UPS

Part Details: APC Smart-UPS RT 10kVA Scalable to 10kVA Rack/Tower with Two Step-Down Transformer - 4 Minute Full Load - 10kVA - SNMP Manageable

Need a different version of the APC Parts Accessory? View all 465 configurations

MSRP: $10,440.00 Price: $8,308.38

Additional Information

Manufacturer	APC
Model Name	Parts

Technical Information

Receptacles:
- 1 x Hard Wire 3-wire 2PH + G - Backup/Surge-protected
- 16 x NEMA 5-20R - Backup/Surge-protected
- 2 x NEMA L14-30R - Backup/Surge-protected
- 6 x NEMA L6-20R - Backup/Surge-protected
- 2 x NEMA L6-30R - Backup/Surge-protected
Plug/Connector Type: Hard Wire 3-wire 2PH + G

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SURT10000XLT-2TF3
Product Name: Smart-UPS RT 10kVA Scalable to 10kVA Tower with Two Step-Down Transformer
Product Line: Smart-UPS

Physical Characteristics

Height: 17"
Width: 21"
Depth: 26"
Form Factor: Tower
Weight (Approximate): 494 lb
Color: Black

Interfaces/Ports

Modular Slots: SmartSlot

Other

Package Contents:
- Smart-UPS RT 10kVA Scalable to 10kVA Rack/Tower with Two Step-Down Transformer
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS RT 10kVA Scalable to 10kVA Rack/Tower with Two Step-Down Transformer
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
Additional Information:
- Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
- Output Voltage Distortion: Less than 3%
- Crest Factor: 3 : 1
- Replacement battery cartridge quantity: 2
- Automatic restart of loads after UPS shutdown
- InfraStruXure Manager Compatible
- Frequency and voltage regulation
- Generator Compatible
- Input Power Factor Correction

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
Load Capacity: 10 kVA/8 kW
Input Voltage: 220 V AC
Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time
Frequency:
- 50 Hz
- 60 Hz
Waveform Type: Sine Wave

Environmental Conditions

Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 50000 ft Storage
Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
Thermal Dissipation: 2216 BTU/h
Sound Emission: 55 dB(A)

Controls/Indicators

Status Indicators:
- Bypass
- Overload
Control Panel:
- LED status display with:
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery

Management

Network Management: SNMP Manageable
Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Overload
Bypass Switch: Automatic & Manual
Emergency Power OFF: Yes
Overload Protection: Resettable circuit breakers

Battery Information

Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
- 0.07 Hour 8 kW Full Load
- 0.22 Hour 4 kW Half Load

Scalability

Modules: 4 x Battery Module
Power Range: 10 kVA to 10 kVA / 8 kW to 8 kW

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year
