APC SURT15KRMXLT-1TF10K Accessory
Part #: SURT15KRMXLT-1TF10K | SKU: APC110948

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC SURT15KRMXLT-1TF10K Accessory

Part Details: APC by Schneider Electric Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS - 12U Rack/Tower - 2.50 Hour Recharge - 8 Minute Stand-by - 220 V AC Input - 120 V AC, 208 V AC Output - 1 x Hard Wire 4-wire, 2 x NEMA L14-30R, 2 x NEMA L5-20R, 4 x NEMA L6-20R, 2 x NEMA L6-30R

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $30,485.00 Price: $23,200.51

Additional Information

Manufacturer	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 1 x Hard Wire 4-wire 2PH + N + G
- 2 x NEMA L14-30R
- 2 x NEMA L5-20R
- 4 x NEMA L6-20R
- 2 x NEMA L6-30R
Plug/Connector Type: Hard Wire 3-wire 2PH + G
Interfaces/Ports:
- DB-9 RS-232 Serial
- RJ-45 Network

General Information

Product Type: Dual Conversion Online UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SURT15KRMXLT-1TF10K

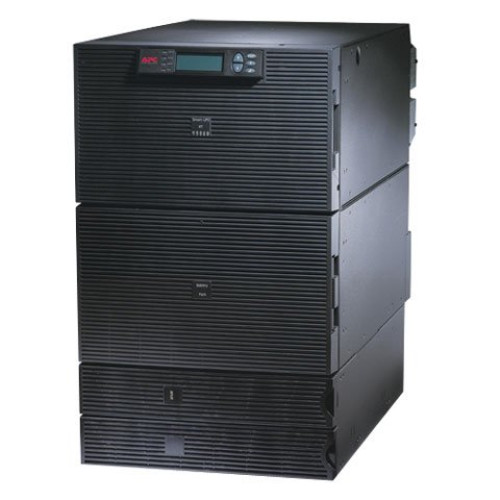

Product Name: Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 27.9"
Width: 17"
Depth: 30"
Form Factor: 12U Tower/Rack Mountable
Weight (Approximate): 765 lb

Interfaces/Ports

Modular Slots: SmartSlot
Interfaces/Ports:
- DB-9 RS-232 Serial
- RJ-45 Network

Other

Package Contents:
- Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
- CD with Software
- 4 x Battery Modules
- Rack Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
- CD with Software
- 4 x Battery Modules
- Rack Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- User Manual
- Web/SNMP Management Card

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
Load Capacity: 15 kVA/12 kW
Input Voltage: 220 V AC
Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
Current: 83 A Input
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
Frequency:
- 50 Hz Input
- 50 Hz Output
Input Current: 83 A

Management

Network Management: SNMP Manageable Included
Bypass Switch:
- Automatic
- External
- Internal
- Manual
- Optional
- Static
Emergency Power OFF: Yes
Overload Protection: Resettable Circuit Breaker

Battery Information

Batteries: 4 x Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
Backup/Run Time: 0.13 Hour 12 kW Full Load
Battery Recharge Time: 2.50 Hour Typical

Scalability

Modules: 4 x Battery Module

Warranty

Limited Warranty: 2 Year
