APC SURT20KRMXLT-1TF10K Accessory
Part #: SURT20KRMXLT-1TF10K | SKU: APC110949

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC SURT20KRMXLT-1TF10K Accessory

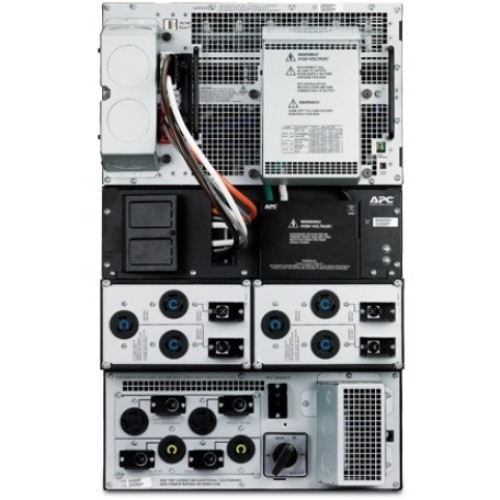

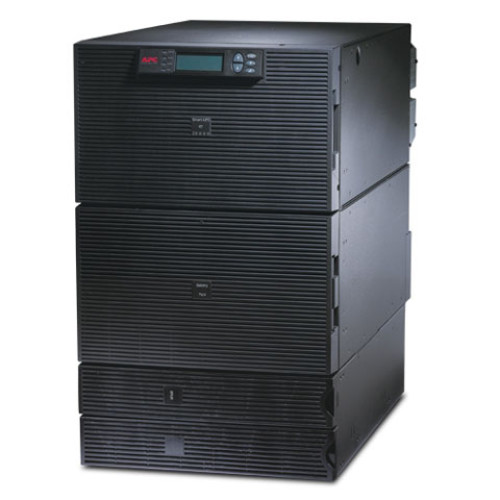

Part Details: APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS - 4.9 Minute Full Load, 15.3 Minute Half Load - 20kVA - SNMP Manageable

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $34,790.00 Price: $23,367.38

Manufacturer	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Receptacles:
- 1 x Hard Wire 4-wire 2PH + N + G
- 2 x NEMA L14-30R
- 2 x NEMA L5-20R
- 4 x NEMA L6-20R
- 2 x NEMA L6-30R
Plug/Connector Type: Hard Wire 3-wire 2PH + G
Interfaces/Ports:
- 1 x DB-9 RS-232 Serial
- 1 x RJ-45 Network

Package Contents:
- Smart-UPS RT 20kVA Tower/Rack Mountable UPS
- CD with software
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
- 4 x Battery Modules
- Smart-UPS RT 20kVA Tower/Rack Mountable UPS
- CD with software
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
- 4 x Battery Modules
Software Included: PowerChute Management Software

Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
Load Capacity: 20 kVA/16 kW
Input Voltage: 220 V AC
Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
Current: 105 A Maximum Input Current
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
Frequency: 40 to 70 Hz
Input Current: 105 A

Network Management: SNMP Manageable Included
Bypass Switch:
- Static
- Internal
- Automatic & Manual
- External (Optional)
Emergency Power OFF: Yes
Overload Protection: Resettable circuit breakers

Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
- 0.08 Hour 16 kW Full Load
- 0.26 Hour 8 kW Half Load
Battery Recharge Time: 2.50 Hour
