Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Receptacles:
- 1 x NEMA 5-20R
- 1 x NEMA L14-30R
- 4 x NEMA L6-20R
- Plug/Connector Type: NEMA L14-30P
- Bypass Switch:
- Automatic
- Internal
- Manual
- Emergency Power OFF: Yes
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: RT
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

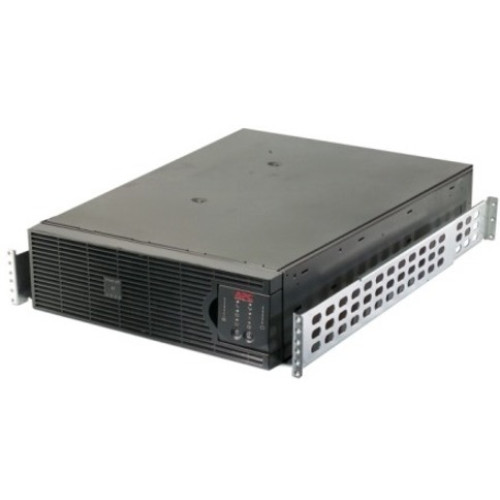

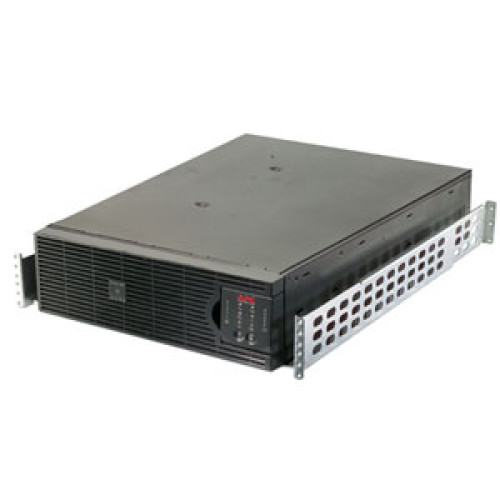

- Product Name: Smart-UPS RT 5000VA Tower/Rack-mountable UPS
- Product Line: Smart-UPS
Physical Characteristics
- Height: 5.1"
- Width: 17"
- Depth: 26"
- Rack Height: 3U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 127.73 lb
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS RT 5000VA Tower/Rack-mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signaling RS-232 Cable
- User Manual
- 2 x Battery Modules
- Smart-UPS RT 5000VA Tower/Rack-mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signaling RS-232 Cable
- User Manual
- 2 x Battery Modules
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
Battery Information
- Maximum Battery Recharge Time: 2.50 Hour
- Backup/Run Time (Half Load): 15.10 Minute
- Backup/Run Time (Full Load): 4.80 Minute
- Battery Characteristics: Maintenance-free, Sealed, Spill-proof
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 4000 W
- Input Voltage:
- 110 V AC
- 220 V AC
- Output Voltage: 208 V AC
Warranty
- Limited Warranty: 2 Year
