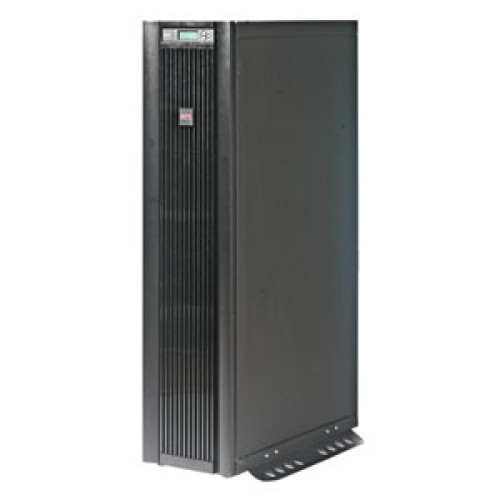

APC SUVTP15KH2B2S UPS
Part #: SUVTP15KH2B2S | SKU: APC217164

Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

APC SUVTP15KH2B2S UPS

Part Details: APC by Schneider Electric Smart-UPS VT 15 kVA Tower UPS - Tower - 5 Hour Recharge - 220 V AC Input - 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire, 1 x Screw Terminal

Need a different version of the APC Smart-UPS UPS? View all 10 configurations

Additional Information

Manufacturer	APC
Model Name	Smart-UPS

Technical Information

Receptacles:
- 1 x Hard Wire 4-wire
- 1 x Hard Wire 5-wire
- 1 x Screw Terminal
Plug/Connector Type: Hard Wire 5-wire
Interfaces/Ports: DB-9 RS-232 Serial

General Information

Product Type: Dual Conversion Online UPS
Product Series: VT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS VT 15 kVA Tower UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 59"
Width: 14"
Depth: 32"
Form Factor: Tower

Interfaces/Ports

Modular Slots: SmartSlot
Interfaces/Ports: DB-9 RS-232 Serial

Management

Network Management: SNMP Manageable Included
Bypass Switch:
- Automatic
- Internal
- Manual
- Maintenance
- Static
Emergency Power OFF: Yes

Battery Information

Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
Backup/Run Time:
- 0.16 Hour
- 0.46 Hour
Battery Recharge Time: 5 Hour Typical

Power Description

Input Voltage Range:
- Nominal
- Mains Operation
Load Capacity: 15 kVA/12 kW
Input Voltage: 220 V AC

Scalability

Modules: 2 x Battery Module

Extended Details
