APC SUVTP20KF3B4S UPS
Part #: SUVTP20KF3B4S | SKU: APC188264

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

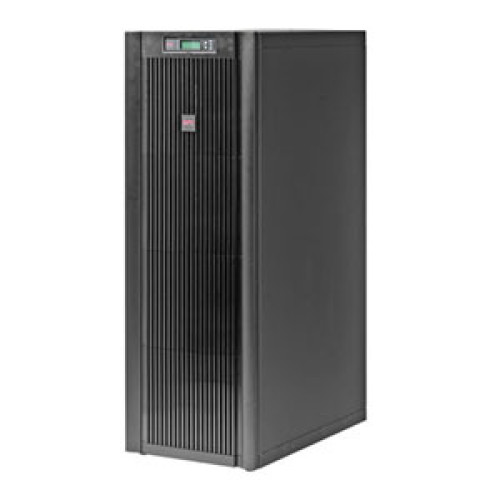

APC SUVTP20KF3B4S UPS

Part Details: APC by Schneider Electric Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS - Tower - 5 Hour Recharge - 12 Minute Stand-by - 220 V AC Input - 120 V AC, 208 V AC, 208 V AC Output - 1 x Screw Terminal, 1 x Hardwired

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $20,120.00 Price: $13,739.47

Additional Information

Manufacturer	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Dual Conversion Online UPS
Product Series: VT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SUVTP20KF3B4S
Product Name: Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS
Product Line: Smart-UPS

Technical Information

Receptacles:
- 1 x Screw Terminal
- 1 x Hardwired 3PH + N + G
Plug/Connector Type: Hardwired 3PH + N + G
Interfaces/Ports: DB-9 RS-232

Physical Characteristics

Height: 59"
Width: 20.6"
Depth: 32"
Form Factor: Tower
Weight (Approximate): 1181 lb

Interfaces/Ports

Modular Slots:
- SmartSlot
- 1 x Battery
Interfaces/Ports: DB-9 RS-232

Other

Package Contents:
- Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS
- 3 x Battery Modules ship installed
- Bolt Down Brackets
- CD with Software
- Installation Guide
- Network Management Card
- Power Modules ship installed
- Smart UPS Signalling RS-232 Cable
- Start Up Service
- User Manual
- Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS
- 3 x Battery Modules ship installed
- Bolt Down Brackets
- CD with Software
- Installation Guide
- Network Management Card
- Power Modules ship installed
- Smart UPS Signalling RS-232 Cable
- Start Up Service
- User Manual

Power Description

Input Voltage Range:
- 208 V AC 3-phase Nominal
- 165 V AC to 240 V AC Mains Operation
Load Capacity: 20 kVA/16 kW
Input Voltage: 220 V AC
Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- 208 V AC 3-phase Nominal
Current: 53 A Maximum Input Current
Frequency:
- 40 Hz to 70 Hz Input
- 57 Hz to 63 Hz Output
Input Current: 53 A

Management

Network Management: Included
Bypass Switch:
- Automatic
- Internal
- Maintenance
- Manual
- Static
Emergency Power OFF: Yes

Battery Information

Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
Backup/Run Time:
- 0.20 Hour 16 kW Full Load
- 0.52 Hour 8 kW Half Load
Battery Recharge Time: 5 Hour Typical

Scalability

Modules: 3 x Battery Module

Warranty

Limited Warranty: 1 Year

Extended Details
