APC Back-UPS Series UPS
Part #: SUVTR30KG5B5S | SKU: APC206380

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC Back-UPS Series UPS

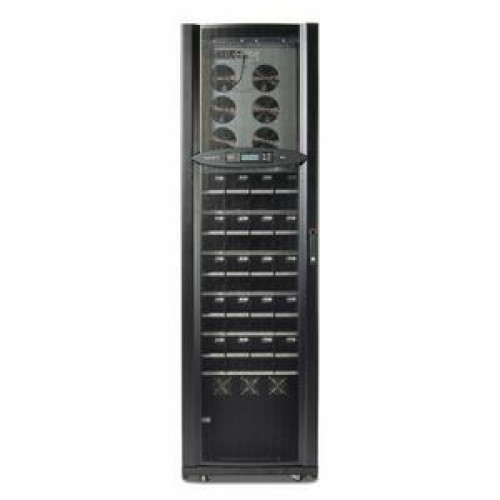

Part Details: APC Smart-UPS VT 30kVA Rack-mountable UPS - 13.7 Minute Full Load - 30kVA - SNMP Manageable
MSRP: $37,270.00 Price: $32,182.85

Additional Information

Manufacturer APC
Model Name Back-UPS Series
Product Condition New

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS VT 30kVA Rack-mountable UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G - Backup/Surge-protected
    • 5 x NEMA L21-20 - Backup/Surge-protected
  • Plug/Connector Type: Hard Wire 4-wire 3PH + G

Physical Characteristics

  • Height: 78.5"
  • Width: 23.6"
  • Depth: 42"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 2290 lb

Interfaces/Ports

  • Modular Slots: 1 x Battery

Other

  • Package Contents:
    • Smart-UPS VT 30kVA Rack-mountable UPS
    • CD with software
    • Installation Guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 30kVA Rack-mountable UPS
    • CD with software
    • Installation Guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
  • Additional Information:
    • Field-replaceable power distribution panel
    • Locking cabinet
    • Multiple cable-entry points

Power Description

  • Input Voltage Range:
    • 480 V AC 3-phase
    • 408 V AC to 552 V AC 3-phase
  • Load Capacity: 30 kVA/24 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC 3-phase Nominal
    • 208 V AC 3-phase Nominal
  • Frequency:
    • 57 to 63 Hz Output
    • 40 to 70 Hz Input

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Maintenance
    • Static
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA)
  • Backup/Run Time:
    • 0.23 Hour 24 kW Full Load
    • 0.61 Hour 12 kW Half Load
  • Battery Recharge Time: 3 Hour Typical

Warranty

  • Limited Warranty: 1 Year
  • Parts Warranty/Labor: 1 Year

Scalability

  • Modules: 5 x Battery Module
Extended Details
