Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: LX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

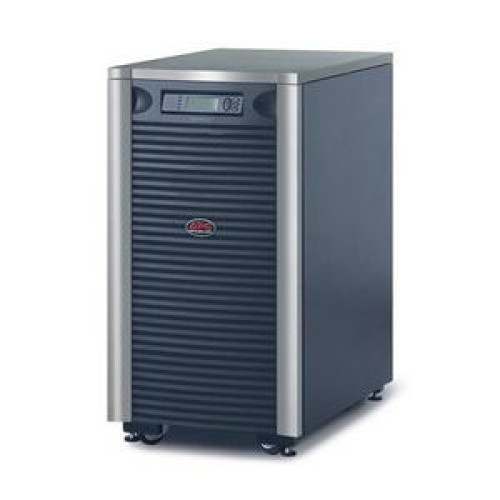

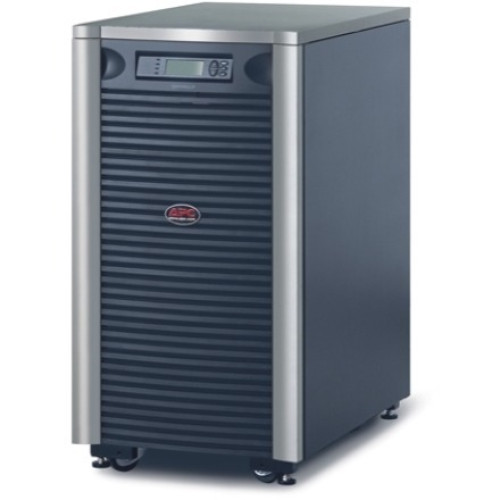

- Product Name: Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS
- Product Line: Symmetra
Technical Information
- Receptacles: 1 x Hard Wire 4-wire 2PH + N + G
- Plug/Connector Type: Hard Wire 4-wire 2PH + N + G
Physical Characteristics
- Height: 37"
- Width: 19"
- Depth: 29"
- Form Factor: Tower
- Weight (Approximate): 677 lb Net
- Color:
- Black
- Silver
Interfaces/Ports
- Modular Slots: 1 x SmartSlot
Other
- Package Contents:
- Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS
- CD with software
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS
- CD with software
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- Additional Information:
- Audible and visible alarms prioritized by severity
- Configurable for N+1 internal redundancy
- Redundant Intelligence Modules
- Hot-swappable intelligence modules
- Hot-swappable power modules
- Automatic restart of loads after UPS shutdown
- InfraStruXure Manager Compatible
- Removable input/output wiring tray
- Cold-start capable
- Generator Compatible
Environmental Conditions
- Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 15000 ft Storage
- Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
- Thermal Dissipation: 4995 BTU/h
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Bypass Switch:
- Automatic
- Manual
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breakers
Battery Information
- Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.28 Hour 6.40 kW Half Load
- 0.10 Hour 12.80 kW Full Load
Warranty
- Limited Warranty: 2 Year Lifetime
- Parts Warranty/Labor: 2 Year
Power Description
- Load Capacity: 16 kVA/12.80 kW
- Waveform Type: Sine Wave
Controls/Indicators
- Control Panel: Multi-function LCD status and control console
